Browse 10 ProductsManual All Terrain Pallet Stacker

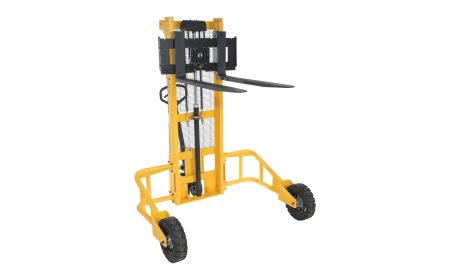

Beacon® Manual All Terrain Pallet Stacker – BRT-MS series
The Manual All-Terrain Pallet Stacker is manufactured for rugged outdoor performance, delivering the balance and stability required to load and unload trucks with ease. This unit makes it ideal for facilities without dock access from the driveway level.
Starting at:
$4,284.77
Product Details
- Models: The BRT-MS-62-AF and BRT-NMS-60-AF are manual push operation.
- Construction: Units feature steel construction.
- Lowered Fork Height: 2-1/8" or 3-1/8"
- Raised Fork Height: The BRT-MS-62-AF features a raised height of 62" and BRT-NMS-60-AF features a raised height of 59".
- Color: Units feature a baked in yellow coat finish.
- Weight: The BRT-MS-62-AF weighs 868 lbs. and the BRT-NMS-60-AF weighs 565 lbs.
- Scope: This Manual All Terrain Pallet Stackers provides dependable control and stability on asphalt and concrete surfaces.
- Operation: Manual Units: Operated by manual push and pull movement, utilizing a simple pump handle to raise and lower the load.
- Capacities: The BRT-MS-62-AF features 2,000 lb capacity and the BRT-NMS-60-AF features a 1,500 lb capacity.
- Usage: Both units are designed to move and transport loads in the lowered (down) position only. For operator safety, do not raise the load on uneven or slanted surfaces.
| Manual All Terrain Pallet Stacker – BRT-MS series | ||||||||
| Model No. | Overall Size (W x L x H) | Service Range | Fork (W x L) | Rubber Drive Wheel | Rubber Front Wheel | Uniform Capacity | DC Powered | Price |
| 1) BRT-MS-62-AF | 64"x63"x80" | 2⅛" to 62" | 4"x42" | (2) 3"x10" | (2) 4½"x15" | 2,000 lbs. | Manual | $4,964.34 |
| 2) BRT-NMS-60-AF | 38"x62"x80" | 3⅛" to 59" | 4"x40" | (2) 2¾"x9⅞" | (2) 3½"x15" | 1,500 lbs. | Manual | $4,284.77 |
