Cylinder Rack Cart

Cylinder Rack Cart - BCYL-P series

Beacon® BYCL-P Series

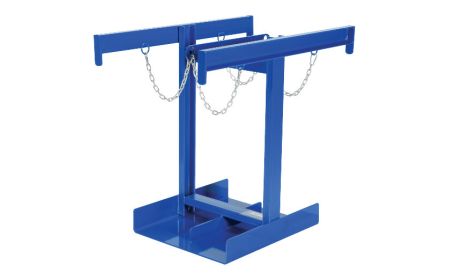

The Cylinder Rack Cart helps to provide optimum cylinder storage. They are designed to transport cylinders safely with the use of a fork truck (BCYL-P) or pallet truck (BPJ-CYL), increasing cylinder storage capabilities. The units can hold 2 to 6 cylinders and come complete with safety chains to secure them in place.
Starting at: $563.95

See chart below and click a model number

Product Details

  • Construction: Models feature all-steel construction.
  • Size: This series can hold units up to 9-1/2" in diameter.
  • Color: Models feature a Beacon blue powder coat.
  • Options: Swivel caster kits are available for the Cylinder Rack Carts to allow for portability without the use of a fork or pallet truck.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
  • Note: Models are shown with optional caster kits. All lead times are approximate and are only estimates with no guarantee to a ship date.

Documents
Cylinder Rack Cart - BYCL-P Series
Model No. Description Mobility Number of Cyl. Cylinder Diameter Construction Capacity (lbs)- Uniform Dimensions Price
1) BCYL-P-4 Cylinder Rack Caddy Fork Mount Style 4 Up to 9½" Steel 800 38.25" Wx24.5" Lx35.25" H $647.43
2) BCYL-P-6 Cylinder Rack Caddy Fork Mount Style 6 Up to 9½" Steel 800 38.25" Wx35.43" Lx35.25" H $794.12
3) BCYL-P-8 Cylinder Rack Caddy Fork Mount Style 8 Up to 9½" Steel 800 38.25" Wx46.37" Lx35.25" H $870.79

4) BPJ-CYL-2 Cylinder Rack Caddy Pallet Truck Style 2 Up to 9½" Steel 400 16" Wx22.43" Lx39"H $563.95
5) BPJ-CYL-4 Cylinder Rack Caddy Pallet Truck Style 4 Up to 9½" Steel 600 16" Wx22.43" Lx39"H $772.53
Cylinder Rack Cart - BPJ-TRUCK
Model No. Description Mobility Number of Cyl. Cylinder Diameter Construction Capacity (lbs)- Uniform Dimensions Price
6) BCYL-TRUCK-4 Cylinder Rack Caddy Poly on Poly Casters 4 Up to 9½" Steel 800 38.25" Wx41" Lx36.37" H $997.45
7) BCYL-TRUCK-6 Cylinder Rack Caddy Poly on Poly Casters 6 Up to 9½" Steel 800 38.25" Wx51,93" Lx36.37" H $1,033.75
8) BCYL-TRUCK-8 Cylinder Rack Caddy Poly on Poly Casters 8 Up to 9½" Steel 800 38.25" Wx62.87" Lx36.37" H $1,440.23
Pallet Truck Caddy Holder - BPJ-TRUCK
Model No. Description Mobility Number of Cyl. Cylinder Diameter Construction Capacity (lbs)- Uniform Dimensions Price
9) BPJ-TRUCK-2 Cylinder Rack Caddy Poly on Poly Casters 2 Up to 9½" Steel 400 20" Wx31.93" Lx39.37" H $886.94
10) BPJ-TRUCK-4 Cylinder Rack Caddy Poly on Poly Casters 4 Up to 9½" Steel 600 20" Wx50.43" Lx39.37" H $1,093.05
Cylinder Caddy - Hoist Lift - BCYL
Model No. Description Mobility Number of Cyl. Cylinder Diameter Construction Capacity (lbs)- Uniform Dimensions Price
11) BCYL-P-4-LUG Cylinder Pallet Hoist Connect Overhead Hoist 4 Up tp 9½" Steel 800 38.25" Wx24.5" Lx73.25" H $895.06
12) BCYL-P-6-LUG Cylinder Pallet Hoist Connect Overhead Hoist 6 Up to 9½" Steel 800 38.25" Wx35.43" Lx71.12" H $1,037.84
13) BCYL-P-8-LUG Cylinder Pallet Hoist Connect Overhead Hoist 8 Up to 9½" Steel 800 38.25" Wx46.37" Lx67.62" H $1,109.16
OPTION
Model No. Description Caster Size Caster Type Capacity (lbs) Uniform Price
14) BCYL-CK Caster Kit for BCYL 4"x2" Mold-on-Rubber 800 $320.30
Model No. Description Caster Size Caster Type Capacity - (lbs.) Uniform Price
15) BPJ-CYL-CK Caster Kit For BPJ-CYL 4"x2" Mold-on-Rubber 800 $389.02
