Low Profile Dump Hopper
Low Profile Dump Hopper
Beacon
®
BH-LD Series

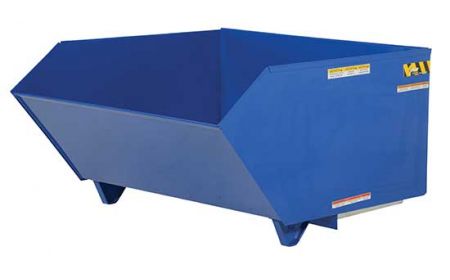

Low Profile Dump Hopper - 90 Degree Self Dumping feature a full 90 degree dump angle. Fork truck accessibility provides quick dumping. These industrial hoppers can be dumped safely by the fork truck driver, without the driver needing to leave his seat. The units automatically return to locked position when lowered to the ground.
Starting at:
$
1,028.38
See chart below and click a model number
Product Details
Models:
Units are available as light duty (-LD), medium duty (-MD), and heavy duty (-HD) hoppers. These options are determined by the steel's gauge.
Construction:
Units are constructed of heavy-duty steel along with welds to offer a leak-proof design.
Size:
The formed base thickness is 1/4". Models are either 25" or 49" wide, 46" or 51-1/4" deep, and 18-1/4" or 28" high. The overall height from front lip to the floor is 14" on BH-25 models, 21" on BH-50 and BH-100 models, and 30-3/4" on BH-150 models.
Overall Fork Width:
Fork truck openings on this hopper are 7" wide x 2" high. Fork pocket centers are at 11-1/2", 11-3/4", or 21-3/4".
Color:
The hoppers have a powder coated blue finish. Contact Beacon for more optional finishes, including Beacon red, white, grey, green, blue, yellow, orange, and galvanized. Galvanized finishes are suitable for wet environments.
Weight:
Hoppers vary in weight from 219 to 540 lbs., depending upon size and capacity.
Operation:
This unit is operated by the user from the fork truck's seat.
Capacity:
Capacities range from 2,000 to 6,000 lbs. Volume capacities range from 1/4 to 1-1/2 cubic yards.
Standard:
A locking chain to secure the Low Profile Dump Hopper to fork trucks is provided standard. A 4' cable for safe, quick dumping is also included. Caster kits available as an option. It does not allow you to stop during the dump cycle.
Options:
Options include color and metal finishes, dump speed dampeners for 4,000- and 6,000-lb. models, and lifting lugs. The dampeners reduce the speed at which the chute rotates, allowing for more control of the Low Profile Dump Hopper.
Note:
All standard and special hoppers are stitch welded. Special continuous welds for liquid tight available at additional charge.
Documents
Steel-Hoppers
Prop. 65 WARNING
Options
Low Profile 90 Degree Low Profile Dump Hopper - BH-LD Series
Model No.
Volume Cubic Yards
Capacity (LBS)
Overall Size (W x D x H)
Degree of Tilt
Fork Pocket Centers
Gauge of Steel
Price
1)
BH-25-LD
¼
2,000
25"x46"x18¼"
90
11½"
12
$1,028.38
2)
BH-50-LD
½
2,000
24½"x50"x28"
90
11¾"
12
$1,451.02
3)
BH-100-LD
1
2,000
49"x51¼"x28"
90
21¾"
12
$1,402.67
4)
BH-150-LD
1½
2,000
49"x51¼"x41"
90
21¾"
12
$1,601.95
5)
BH-25-MD
¼
4,000
25"x46"x18¼"
90
11½"
10
$1,074.13
6)
BH-50-MD
½
4,000
25"x51¼"x28"
90
11¾"
10
$1,520.88
7)
BH-100-MD
1
4,000
49"x51¼"x28"
90
21¾"
10
$1,434.91
8)
BH-150-MD
1½
4,000
49"x51¼"x41"
90
21¾"
10
$1,775.46
9)
BH-25-HD
¼
6,000
25"x46"x18¼"
90
11½"
8
$1,153.59
10)
BH-50-HD
½
6,000
25"x51¼"x28"
90
11¾"
8
$1,632.51
11)
BH-100-HD
1
6,000
49"x51¼"x28"
90
21¾"
8
$1,669.09
12)
BH-150-HD
1½
6,000
49"x51¼"x41"
90
21¾"
8
$2,060.84
OPTION
Model No.
Description
Price
13)
BH-DAMP-4
Pressure-compensated flow control (4,000-lb. units)
$1,293.50
14)
BH-DAMP-6
Pressure-compensated flow control (6,000-lb. units)
$1,719.04
15)
BLUG
Four lifting lugs, one welded on each corner
$538.43
PROP 65 WARNING
For California Residents:
www.P65Warnings.ca.gov
Products on this page may lead to cancer or reproductive harm.
Complementary Products:
For a hopper designed to be used in areas with limited space, please see Beacon steel chute hoppers.
