Front End Hopper

Front End Hopper - BHDROP series

Beacon® BHDROP Series

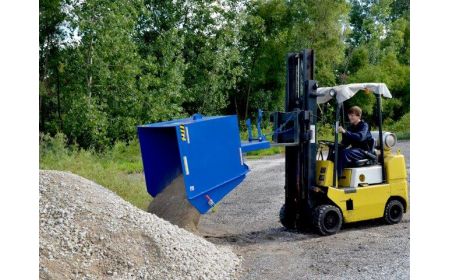

This Front End Hopper has a drop-down front for easy loading of loose materials. Loading and unloading is made easy by lowering the unit’s ramp. Features full 90 degree dumping.
Starting at: $1,511.07

See chart below and click a model number

Product Details

  • Construction: Steel construction
  • Size: 30"x 46-1/4"x 18-7/16"
  • Color: Powder coat finish in Beacon blue.
  • Weight: 169 pounds.
  • Capacity: 2,000 pound capacity.
  • Standard: This Front End Hopper includes a cable to enable the forklift operator to operate the unit remotely. When lowered to the ground, the unit returns to the original position automatically.
  • Note: Testing, adjustments, training and scheduled maintenance procedures by others.

Documents
Front End Hopper - BHDROP Series
Model No. Volume Cubic Yards Capacity (lbs) Overall Size (WxLxH) Net Wt. (lbs) Price
1) BHDROP-25-LD ¼ 2000 30"x 46¼"x 18-7/16" 169 $1,511.07
2) BHDROP-50-LD ½ 2000 30"x51⅝"x28-7/16" 322 $1,670.90
3) BHDROP-100-LD 1 2000 52-15/16"x51⅝"x28-7/16" 344 $1,966.22
4) BHDROP-150-LD 1½ 2000 54-3/16"x51-13/16"x40⅛" 382 $2,188.87
5) BHDROP-25-MD ¼ 4000 30"x46"x18" 212 $1,570.92
6) BHDROP-50-MD ½ 4000 30"x51¼"x28" 263 $1,740.73
7) BHDROP-100-MD 1 4000 54-3/16"x51-13/16"x40⅛" 367 $2,019.06
8) BHDROP-150-MD 1½ 4000 30"x46¼"x18-7/16" 453 $2,397.22
9) BHDROP-25-HD ¼ 6000 30"x51⅝"x 28-7/16" 212 $1,673.62
10) BHDROP-50-HD ½ 6000 52-15/16"x 51⅝"x 28-7/16" 274 $1,856.45
11) BHDROP-100-HD 1 6000 52-15/16"x 51⅝"x 28-7/16" 397 $2,250.15
12) BHDROP-150-HD 1½ 6000 54-3/16"x 51-13/16"x 40⅛" 472 $2,729.76
