Powered Turntable

Powered Turntable - Metal Turntable - BPT series

Beacon® BPT Series

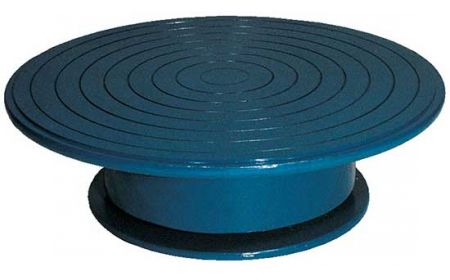

Powered Turntable is designed to keep difficult material handling at the worker's fingertips. This Metal Turntable features smooth, clockwise rotation that's ideal for a multitude of applications. The rotation speed is not adjustable. The unit's power is provided via an on/off selector switch that is incorporated in a 3' cord.
Starting at: $1,710.78

See chart below and click a model number

Product Details

  • Size: This series is available in models with a diameter of 12" and a height of 4-1/2", a diameter of 18" and a height of 5-1/2", or a diameter of 18" and a height of 6-3/8".
  • Electrical: The unit is wired to 115 V, 1-phase.
  • Capacity: The series is available with capacities of 100, 250, or 750 lbs.
  • Standard: The unit includes a standard side skirt that keeps items from going into the rotating mechanism.
  • Options: Powered Turntable options include foot control, 1, or 2 R.P.M (only on BPT-250 and BPT-750), or counter-clockwise rotation.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.

Documents



Powered Turntable - BPT Series
Model No. Diameter Capacity (LBS) Height Range R.P.M. Power Supply Price
1) BPT-100 12" 100 4½" 115V, 1 PH $1,710.78
2) BPT-250 18" 250 5½" 3 115V, 1 PH $2,047.87
3) BPT-750 18" 750 6⅜" 2 115V, 1 PH $2,543.86
OPTION
Model No. Description Price
4) BFC-2 Foot Control $223.85
5) BPT-1/2RPM 1 or 2 R.P.M. (Not available with BPT-100) $104.20
