Forklift Coil Lifters

Forklift Coil Lifters - BCCF series

Beacon® BCCF Series

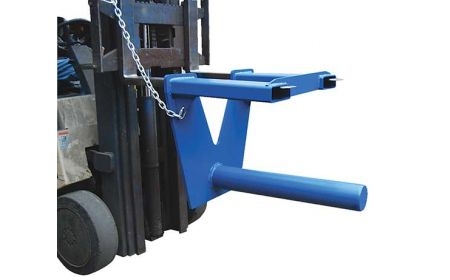

The Forklift Coil Lifters make maneuvering coiled material easy and efficient. These units can be ordered in inverted fork-mounted or Class II carriage-mounted styles to fit a variety of applications. Carriage-mounted models secure to the carriage with a spring-loaded lock pin.
Starting at: $753.24

See chart below and click a model number

Product Details

  • Construction: Units feature rugged steel construction for heavy-duty applications.
  • Size: Fork-mounted units are 34" wide x 30-1/4" high and 24", 36", 48", or 60" long. Carriage-mounted units are 11-1/2" wide x 20-1/2" tall and 24", 36", 48", or 60" long. Poles are either 4-1/2" or 5-9/16" in diameter.
  • Overall Fork Width: Fork centers are at 24". Usable fork pockets for fork-mounted units are 7-1/2" wide x 2-1/2" tall usable.
  • Color: Units are painted Beacon blue.
  • Weight: Models range in weight from 148 to 315 lbs.
  • Note: All lead times are approximate and are only estimates with no guarantee to a ship date.
  • Capacity: Forklift Coil Lifters have capacities of 3,000 or 5,500 lbs.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred.

Documents



Forklift Coil Lifters - Fork Mounted, Inverted - BCCF Series
Model No. Overall Size (W x L x H) Pole Diameter Capacity (LBS) Usable Fork Pockets (W x H) Fork Center Price
1) BCCF-24-4 34"x24"x30¼" 4½" 3,000 7½"x2½" 24" $1,332.27
2) BCCF-36-4 34"x36"x30¼" 4½" 3,000 7½"x2½" 24" $1,381.04
3) BCCF-48-4 34"x48"x30¼" 4½" 3,000 7½"x2½" 24" $1,455.36
4) BCCF-60-4 34"x60"x30¼" 4½" 3,000 7½"x2½" 24" $1,538.27

5) BCCF-24-5 34"x24"x30¼" 5-9/16" 5,500 7½"x2½" 24" $1,505.39
6) BCCF-36-5 34"x36"x30¼" 5-9/16" 5,500 7½"x2½" 24" $1,585.74
7) BCCF-48-5 34"x48"x30¼" 5-9/16" 5,500 7½"x2½" 24" $1,632.17
8) BCCF-60-5 34"x60"x30¼" 5-9/16" 5,500 7½"x2½" 24" $1,745.45
Forklift Coil Lifters - Carriage Mounted, Class II - BCCM Series
Model No. Overall Size (W x L x H) Pole Diameter Capacity (LBS) Carriage Class Price
9) BCCM-24-4 11½"x24"x20½" 4½" 3,000 2 $753.24
10) BCCM-36-4 11½"x36"x20½" 4½" 3,000 2 $792.30
11) BCCM-48-4 11½"x48"x20½" 4½" 3,000 2 $900.77
12) BCCM-60-4 11½"x60"x20½" 4½" 3,000 2 $953.18

Forklift Coil Lifters - Carriage Mounted, Class II - BCCM Series (continued)

Model No. Overall Size (W x L x H) Pole Diameter Capacity (LBS) Carriage Class Price
13) BCCM-24-5 11½"x24"x20½" 5-9/16" 5,500 2 $915.36
14) BCCM-36-5 11½"x36"x20½" 5-9/16" 5,500 2 $1,022.67
15) BCCM-48-5 11½"x48"x20½" 5-9/16" 5,500 2 $1,079.91
16) BCCM-60-5 11½"x60"x20½" 5-9/16" 5,500 2 $1,142.02
