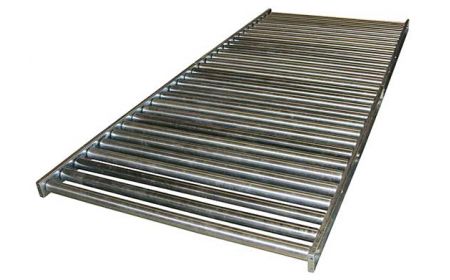

Roller Conveyor

Roller Conveyor - Floor Conveyor - BCONV series

Beacon® BCONV-Z Series

The assembly Roller Conveyor is a useful addition to any loading dock area, shipping center, receiving area, or work station. This Floor Conveyor unit reduces the need for fork trucks to transfer heavy items as well as minimizing worker strain due to lifting and carrying. The rollers are set low in the frame to keep a low profile out of the way.
Starting at: $1,294.71

See chart below and click a model number

Product Details

  • Construction: Roller Conveyors feature 13-gauge steel spring-loaded rollers. The frame is 10 gauge zinc-plated steel for a strong resilient finish.
  • Size: Frame size is 52" wide x 60" long x 3.5" high. Models have a usable width of 50". Rollers are 2 -3/8" in diameter on 3-15/16" centers.
  • Installation: Units ship fully assembled.
  • Color: Zinc plated steel frame.
  • Weight: Units weigh 308 lbs. For industrial use.
  • Operation: Features 15 Rollers in each frame assembly.
  • Standard: Couplers are included standard for the Roller Conveyor in order to join multiple units together.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.

Documents



Roller Conveyor - BCONV-Z Series
Model No. Overall Size (W x L) Usable Width Number of Rollers Roller Center Roller Diameter Total Capacity (LBS) Price
1) BCONV-52-5-2-3L-Z 52"x60" 50" 20 3" 2.4" 5,000 $1,294.71
