Drum Gripper

Drum Gripper - BDGS series

Beacon® BDGS Series

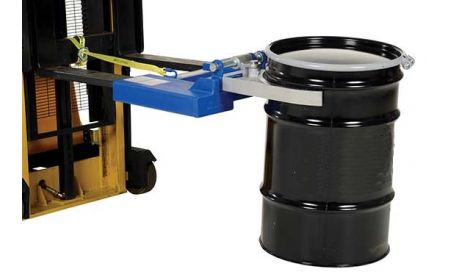

Drum Gripper enables a fork truck driver to lift one or two drums without leaving the vehicle's seat. This unit features a hinge folding design for storage.
Starting at: $680.41

See chart below and click a model number

Product Details

  • Construction: Constructed of heavy duty welded steel.
  • Size: Models are available in a variety of sizes from 27-3/4" wide x 35" deep x7-1/2" high to 46-1/4" wide x 43-5/8" deep x 9-3/8" high.
  • Lowered Fork Height: Drum is automatically released by lowering the forks.
  • Color: This Drum Gripper unit is powder coat finished.
  • Operation: To operate these models, slip your fork truck's forks into the gripper's fork tubes. Then lower the equipment around the drum and allow its knuckle gripping system to grasp the drum tightly. Then the drum can be lifted.
  • Capacities: Models are available with capacities of 800, 1500 or 2000 lbs.
  • Standard: The BDGS-A and BDGD-A model Drum Gripper features adjustable width arms for use with both 30 gallon and 55 gallon steel drums.
  • BDGS-55-D360° View

Documents



Drum Gripper - BDGS Series
Model No. Acceptable Drum Types Capacity (LBS) Fork Pocket Centers Fork Pocket Size (W x H) Overall Size (W x D x H) Price
1) BDGS-A (1) 30 & 55 Gallon Steel or Plastic 800 19¾" 7⅝5x1⅞" 27¾"x35"x7½" $713.59
2) BDGS-A-PSD (1) 30 & 55 Gallon Steel or Plastic 1,500 20½" 7"x2" 28"x24"x8" $873.52
3) BDGS-55-D (1) 55 Gallon Steel 1,500 20¼" 7⅛"x 2-1/16" 28"x43-3/16"x7⅛" $680.41
4) BDGS-55-D-G (1) 55 Gallon Steel 1,500 20¼" 6⅞"x2⅛" 28"x43-3/16"x7⅛" $730.91

5) BDGD-A (2) 30 & 55 Gallon Steel or Plastic 1,500 24" 7⅝"x1⅞" 45"x35"x7½" $827.48
6) BDGD-55-D (2) 55 Gallon Steel 2,000 25⅞" 7⅛"x2-5/16" 46¼"x43⅝"x9⅜" $753.78

Drum Gripper - BDGS Series (continued)

Model No. Acceptable Drum Types Capacity (LBS) Fork Pocket Centers Fork Pocket Size (W x H) Overall Size (W x D x H) Price
7) BDGS-AG (1) 30, 55, & 85 Gallon Steel 1,500 19¾" 7⅝"x1⅞" 27¾x34"x9½" $1,110.05


Complementary Products: For highly efficient drum storage equipment, please see Beacon Drum Storage.
