Drum Equipment
Drum Dumper
Portable Drum Rotator
Portable Drum Rotator
Beacon
®
BDRUM-LRT Series

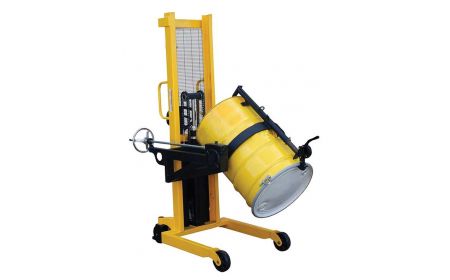

Portable Drum Rotator - Barrel Transporter are designed to be portable. The rotator can lock into position, making it a versatile stationary or portable piece of equipment. This series is designed for use with 55 gallon steel drums and fiber drums 22" in diameter. These units can lift drums with a dump height of 67".
Starting at:
$
3,917.25
See chart below and click a model number
Product Details
Models:
The different model numbers range of manual operation to full powered drive and lift.
Construction:
The units feature steel construction.
Size:
Units feature an overall width of either 33 up to 36-1/4", a depth of 52" to 61".
Powered:
The BDRUM-LRT-DC features a 12V lift battery with manual hand crank rotation. The BDRUM-LRT-DC-II has a 24V DC powered rotation along with a 24V DC lifting mechanism. These units feature an on-board charger. BDRUM-LRT-AIR is powered by air.
Power:
The full powered Portable Drum Rotator BDRUM-LRT-DC-SCL includes 2x12V, 70-85 Ah lead acid batteries, integral battery charger and level gauge. Powered Scale with AA batteries include automatic turn off +/1 0.5 lbs. accuracy. AC adapter included.
Color:
Units are powder-coated Beacon yellow.
Weight:
Unites range from 519 lbs. to 900 lbs.
Operation:
BDRUM-LRT: A geared hand crank controls the 360 degree rotation. BDRUM-LRT-DC-II has a 24 V DC mechanical 360 degree powered rotation. BDRUM-LR-DC-SCL: Fully powered drive, lift and rotation with drum scale. Incudes disc brake and auto dead man control.
Capacity:
BDRUM series has a capacity of 550 lbs.
Materials:
The BDRUM-LRT and BDRUM-LRT-II series are designed with a manual hand pump for lifting drums and a hand crank to rotate them. The BDRUM-LRT-II series has straddle legs that pivot to access drums on pallets. Portable Drum Rotator legs pivot manually and have a locking pin.
Surcharge:
Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
Note:
Minor assembly of this unit is required.
Documents
BDRUM-LRT-Tech-Sheet
Prop. 65 WARNING
Portable Drum Rotator - BDRUM-LRT Series
Model No.
Operation
Overall Size (W x D x H)
Raised Height
Uniform Capacity (LBS)
For Use With
Service Drum Diameter
Rotation
Note
Price
1)
BDRUM-LRT
Hand Pump Lift / Hand Crank Rotation
36¼"x61"x88"
62"
550
Steel or Fiber drums
55 Gallon Steel & 22" diameter fiber
360 degrees
A
$3,917.25
2)
BDRUM-LRT-II
Hand Pump Lift / Hand Crank Rotation
72"x61"x88"
62"
550
Steel or Fiber drums
55 Gallon Steel & 22" diameter fiber
360 degrees
A
$4,545.98
3)
BDRUM-LRT-DC
12V DC Power Lift, Manual Rotation
36¼"x61"x88"
62"
550
Steel or Fiber drums
55 Gallon Steel & 22" diameter fiber
360 degrees
A
$9,046.41
4)
BDRUM-LRT-DC-II
24V DC Power Lift & Rotation
36¼"x61"x88"
62"
550
Steel or Fiber drums
55 Gallon Steel & 22" diameter fiber
360 degrees
A
$9,995.36
5)
BDRUM-LRT-AIR
Air Powered
36¼"x61"x88"
62"
550
Steel or Fiber drums
55 Gallon Steel & 22" diameter fiber
360 degrees
A
$8,824.31
Portable Drum Rotator - BDRUM-LRT Series (continued)
Model No.
Operation
Overall Size (W x D x H)
Raised Height
Uniform Capacity (LBS)
For Use With
Service Drum Diameter
Rotation
Note
Price
6)
BDRUM-LRT-DC-SCL
DC Powered Lift / Drive / Rotate with Scale
33⅞"x53⅛"x86⅝"
62"
550
Steel or Fiber drums
55 Gallon Steel & 22" diameter fiber
360 degrees
A
$15,220.00
Notes:
A:
Measurments: Drum in vertical position floor to bottom of drum.
PROP 65 WARNING
For California Residents:
www.P65Warnings.ca.gov
Products on this page may lead to cancer or reproductive harm.
