Drum Tipper

Drum Tipper - BDCT series

Beacon® BDCT Series

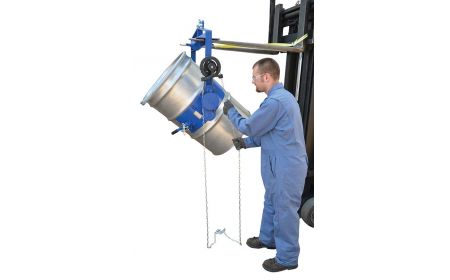

The Drum Tipper is designed to rotate and position a fully loaded 55-gallon steel drum. It features a chain crank that allows the operator to rotate 360-degree drums that are out of reach. This unit is best used with an overhead hoist. Drums are held in place with a drum lock.
Starting at: $1,176.40

See chart below and click a model number

Product Details

  • Size: Both models are 8" long x 33" wide x 35-5/8" high.
  • Overall Fork Width: The fork pockets are 6-1/2" wide and 2" high.
  • Overall Fork Length: The fork pockets are 8" long.
  • Color: Drum Tipper units are powder-coated Beacon Blue.
  • Weight: Models weigh either 97 or 102 lbs.
  • Operation: This product must have a full drum to rotate at the rated capacity.
  • Capacity: The series features either an 800-lb. or a 1,500-lb. capacity.
  • Standard: The Drum Tipper comes complete with fork pockets for transportation.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
  • Note: Testing, adjustments, training and scheduled maintenance procedures by others.

Documents
Drum Tipper - Rotator - BDCT Series
Model No. Acceptable Drum Types Rotation Method Uniform Capacity (LBS) Overall Size (W x L x H) Rotates (degrees) Fork Pocket Width Fork Pocket Type Note Price
1) BDCT-75 55 Gallon Steel 15'-Chain 800 33.84"x25.12"x33.75" 360 5"x½"x1-15/16" 2 Way A $1,605.99
2) BDCT-75-4WFP 55 Gallon Steel 15'-Chain 800 33.81"x28.75"x33.75" 360 5"x1-9/16", 5½"x1-15/16" 4 Way   $1,176.40
3) BDCT-85 55 Gallon Steel 15'-Chain 1,500 33.84"x25.12"x33.75" 360 5"x½"x1-15/16" 2 Way A $1,784.87
4) BDCT-85-4WFP 55 Gallon Steel 15'-Chain 1,500 22.81"x28.75"x33.75" 360 5"x1-9/16", 5½"x1-15/16" 4 Way   $1,561.50
5) BDCT-2000 55 Gallon Steel 15'-Chain 2,000 39.68"x30"x36.37" 360 5"x½"x1-15/16" 2 Way   $3,602.35
Notes:
A: Drum must be full to rotate at rated capacity.
Drum Tipper - OPTION
Model No. Description Drum Size Construction Size (W x L x H) Accepts Drum Type Note Price
6) BFDA-250 Drum Adapter nylon strap to hold and support 30 gallon fiber or plastic drums with listed stacker, carrier/rotators. 30 gallon Nylon Strap 3.37"x29.56x1.1" Fiber or Plastic Drums   $199.12
7) BFDA-550 Drum Adapter adjusting arm to support fiber or plastic 30 & 55 gallon drums with listed stacker, carrier/rotators. 30 or 55 gallon Steel Arm 4"x10"x36.75" Fiber or Plastic Drums   $203.16
8) BFDA-800 Drum Adapter adjusting arm and strap to hold and support 30 & 55 gallon drums with listed stackers/carriers. 30 or 55 gallon Steel Arm & Nylon Strap 4"x10"x36.75" Fiber or Plastic Drums   $285.21
9) BFDC-30 Drum Steel saddle adapter attaches to the inner rim of drum saddle to a 30 gallon steel, fiber or poly drum can be used with stacker, carriers or rotators. Must be used with adjusting arm. 30 gallon Steel Saddle 26.68"x21.62"x10.56" Steel, Fiber or Poly Drums   $347.23
Notes:
A: Drum must be full to rotate at rated capacity.
