HPK - 4 Movement Solid Deck Leveler

4 Movement Solid Deck Leveler - HPK Series

Beacon® HPK Series

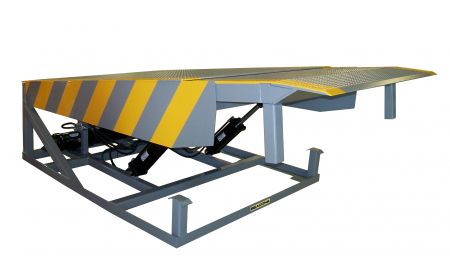

The HPK - 4 Movement Solid Deck Leveler is designed to accommodate loading docks with high volumes of traffic. These units service cargo-carrying trucks. This series features push-button control.
Call for custom quote for your application

See chart below and click a model number

Product Details

  • Construction: The 20,000 lb. capacity models utilize box formed steel for the substructure and the 30,000 lb. + capacity models utilize I Beams steel for the substructure. Sold in Bulk.
  • Size: These HPK - 4 Movement Solid Deck Leveler models feature deck widths of 6' or 7'. The units have lengths of 6', 8', 10', 12' & 14'.
  • Electrical: 3 Hp motor, 208/240/440 V AC., 3 phase.
  • Operation: Two hydraulic cylinders control the deck movement, and a hydraulic cylinder controls the slide deck lip.
  • Capacity: The hydraulic dock leveler features a 20,000-lb.or a 30,000 lb. dynamic rollover capacity.
  • Standard: HPK - 4 Movement Solid Deck Leveler includes a 20" or 24" continuous slide deck lip, full-range toe guards, and dock bumpers.
  • Limited Warranty: Includes a five year structural, three years hydraulics, and one year electrical. Extended warranties available.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
  • Note: Size and movements are nominal dimensions.
  • HPK6830 - Video
  • ANSI - Video

Documents

Options

4 Movement Solid Deck Leveler - HPK Series
Model No. Description Price
1) HPK66-20 (6' W x 29.5" D) (6' actual length) 20,000 lb. rollover capacity Call for Quote
2) HPK68-20 (6' W x 29.5"D) (8' actual length) 20,000 lb. rollover capacity Call for Quote
3) HPK612-20 (6' W x 30" D) (12' actual length) 20,000 lb. rollover capacity Call for Quote
4) HPK610-20 (6' W x 30" D) (10' actual length) 20,000 lb. rollover capacity Call for Quote
5) HPK614-20 (6' W x 30" D) (14' actual length) 20,000 lb. rollover capacity Call for Quote
6) HPK76-20  Call for Quote
7) HPK78-20 (7' W x 29.5" D) (8' actual length) 20,000 lb. rollover capacity Call for Quote
8) HPK710-20 (7' W x 30" D) (10' actual length) 20,000 lb. rollover capacity Call for Quote
9) HPK712-20 (7' W x 30" D) (12' actual length) 20,000 lb. rollover capacity Call for Quote

10) HPK66-30 (6' W x 29.5" D) (6' actual length) 30,000 lb. rollover capacity Call for Quote
11) HPK68-30 (6' W x 29.5" D) (8' actual length) 30,000 lb. rollover capacity Call for Quote
12) HPK610-30 (6' W x 32" D) (10' actual length) 30,000 lb. rollover capacity Call for Quote
13) HPK612-30 (6' W x 32" D) (12' actual length) 30,000 lb. rollover capacity Call for Quote
14) HPK614-30 (6' W x 30" D) (14' actual length) 30,000 lb. rollover capacity Call for Quote
15) HPK76-30 (7' W x 29.5" D) (6' actual length) 30,000 lb. rollover capacity Call for Quote
16) HPK78-30 (7' W x 29.5" D) (8' actual length) 30,000 lb. rollover capacity Call for Quote
17) HPK710-30 (7' W x 32" D) (10' Actual length) 30,000 lb. Rollover capacity. Call for Quote
18) HPK712-30 (7' W x 32" D) (12' actual length) 30,000 lb. rollover capacity Call for Quote

WarningPROP 65 WARNING

For California Residents: www.P65Warnings.ca.gov
Products on this page may lead to cancer or reproductive harm.

  OPTIONS:
1) HPK Accessories (8 items)
