Manual Loading Leveler

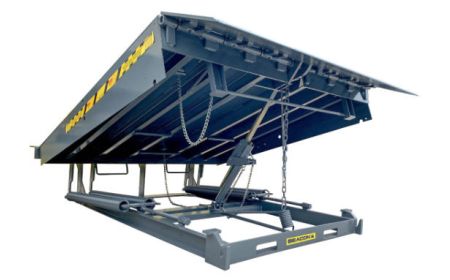

Mechanical Loading Leveler - BM5 Series

Beacon® BM5 Series

This versatile Mechanical Loading Leveler is our premium unit. The unit is designed to compensate for height disparities between the truck trailer bed and loading dock platforms. Our Mechanical Loading Leveler is available in a variety of sizes, heights and capacities to fit your loading dock needs.
Starting at: $9,197.42

See chart below and click a model number

Product Details

  • Construction: This series is constructed of heavy-duty welded steel. Includes sold steel structural "C" channel for maximum deck support. Each beam is fully welded to the full width header plate for full stability at the font. Includes dual 60,000 lb. safety legs.
  • Size: These models have deck widths of 6', 6.5', or 7' and nominal lengths of 6', 8', or 10'. Heights are either 19" or 24".
  • Color: Finish - Enamel base gray paint.
  • Operation: This Mechanical Loading Leveler is operated by a pull chain. Positive hold down device allows up and down float when in service. Unit includes direct extension spring counterbalance providing easy walk down during operation.
  • Capacities: The unit has service capacities ranging from 25,000 to 50,000 lbs.
  • Standard: Mechanical Loading Leveler comes standard with a 16" hinged lip with hydra lip assist, working range toe guards, and laminated 4-1/2" x 10" x 12" dock bumpers.
  • Limited Warranty: The 5 year limited warranty covers the structural pieces. The main springs are covered by a 4 year limited warranty, and a 1-year warranty is in place for the mechanical and miscellaneous parts. Extended warranties available.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
  • Note: Testing, adjustments, training and scheduled maintenance procedures by others.

Documents
Manual Loading Leveler - BM5 Series
Model No. Width Height Length Capacity Price
1) BM56625 72" 19" 6' 25,000 $9,197.42
2) BM56625.5 78" 19" 6' 25,000 $9,678.04
3) BM57625 83" 19" 6' 25,000 $11,641.81
4) BM56825 72" 19" 8' 25,000 $9,597.94
5) BM56825.5 78" 19" 8' 25,000 $10,418.40
6) BM57825 83" 19" 8' 25,000 $13,256.03
7) BM561025 72" 23" 10' 25,000 $15,355.73
8) BM561025.5 83" 23" 10' 25,000 $16,018.41
9) BM571025 83" 23" 10' 25,000 $13,578.88

10) BM56630 72" 19" 6' 30,000 $9,304.22
11) BM56630.5 78" 19" 6' 30,000 $10,008.17
12) BM57630 83" 19" 6' 30,000 $12,336.05
13) BM56830 72" 19" 8' 30,000 $9,949.91
14) BM57830 83" 19" 8' 30,000 $13,756.08
15) BM56830.5 78" 19" 8' 30,000 $10,719.40
16) BM561030 72" 23" 10' 30,000 $16,037.83
17) BM561030.5 78" 23" 10' 30,000 $17,268.52
18) BM571030 83" 23" 10' 30,000 $14,032.80

Manual Loading Leveler - BM5 Series (continued)
Model No. Width Height Length Capacity Price
19) BM56635 72" 19" 6' 35,000 $10,318.88
20) BM56635.5 78" 19" 6' 35,000 $10,741.24
21) BM57635 83" 19" 6' 35,000 $13,328.85
22) BM56835 72" 19" 8' 35,000 $10,852.91
23) BM56835.5 78" 19" 8' 35,000 $11,185.46
24) BM57835 83" 19" 8' 35,000 $14,435.75
25) BM561035 72" 23" 10' 35,000 $16,935.97
26) BM561035.5 78" 23" 10' 35,000 $17,824.40
27) BM571035 83" 23" 10' 35,000 $14,406.62

28) BM56640 72" 19" 6' 40,000 $10,483.94
29) BM56640.5 78" 19" 6' 40,000 $10,945.15
30) BM57640 83" 19" 6' 40,000 $13,588.59
31) BM56840 72" 19" 8' 40,000 $11,051.95
32) BM56840.5 78" 19" 8' 40,000 $11,573.84
33) BM57840 83" 19" 8' 40,000 $14,879.96
34) BM561040 72" 23" 10' 40,000 $17,520.97
35) BM561040.5 78" 23" 10' 40,000 $18,406.97
36) BM571040 83" 23" 10' 40,000 $14,945.50

37) BM56645 72" 19" 6' 45,000 $10,641.72
38) BM56645.5 78" 19" 6' 45,000 $11,304.40
39) BM57645 83" 19" 6' 45,000 $14,214.85
40) BM56845 72" 19" 8' 45,000 $11,212.16
41) BM56845.5 78" 19" 8' 45,000 $11,959.80
42) BM57845 83" 19" 8' 45,000 $16,198.04
43) BM561045 72" 23" 10' 45,000 $18,559.90
44) BM561045.5 78" 23" 10' 45,000 $18,994.41
45) BM571045 83" 23" 10' 45,000 $15,134.84

Manual Loading Leveler - BM5 Series (continued)
Model No. Width Height Length Capacity Price
46) BM56650 72" 19" 6' 50,000 $12,722.00
47) BM56650.5 78" 19" 6' 50,000 $12,775.41
48) BM57650 83" 19" 6' 50,000 $16,722.36
49) BM56850 72" 19" 8' 50,000 $15,081.44
50) BM56850.5 78" 19" 8' 50,000 $15,093.57
51) BM57850 83" 19" 8' 50,000 $20,846.51
52) BM561050 72" 23" 10' 50,000 $21,128.09
53) BM561050.5 78" 23" 10' 50,000 $24,138.07
54) BM571050 83" 23" 10' 50,000 $18,254.05

WarningPROP 65 WARNING

For California Residents: www.P65Warnings.ca.gov
Products on this page may lead to cancer or reproductive harm.

  OPTIONS:
1) BM5 Accessories (12 items)
