Tall Dock Leveler
Tall Dock Leveler
Beacon
®
HPK-BEH Series

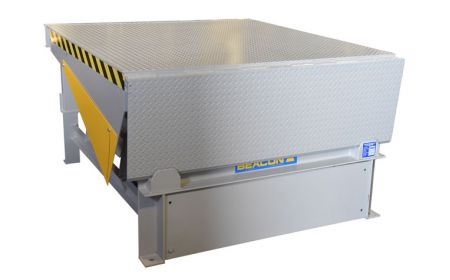

The welded steel Tall Dock Leveler is available with special heights from 24" to 50" tall. Utilized as a Hinged lip leveler replacement alternate for the Beacon slide deck leveler. Designed for custom size tall pit applications. Electric Hydraulic operation. The Custom Dock Leveler is designed for taller pits that are usually located in older building design applications.
Starting at:
$
20,056.94
See chart below and click a model number
Product Details
Construction:
These heavy duty products feature steel welded construction.
Size:
The HPK-BEH is designed for loading dock pits requiring tall custom dock levelers. Most applications usually are for a replacement of older dock levelers installed in the 1950s & 1960s that have a tall pit. Special heights available upon request.
Service Range:
Overall vertical travel 24" with 12" up and 12" down.
Overall Width:
Standard deck sizes available with widths ranging from 62" to 78". Special and custom widths available upon request.
Overall Length:
Standard deck sizes available with lengths ranging from 30" to 48". Special and custom lengths available upon request.
Color:
Beacon Industrial Grey.
Operation:
Wall mounted electric push button control station box.
Capacities:
This HPK-BEH series features loading capacities of 20,000 and 30,000 lbs. Published ratings are static, dynamic roll over is 50% of static.
Standard:
A 16" hinged lip is standard. Optional 18" and 20" lip is available upon request.
Options:
Painted safety yellow and black strips on entire side of the Tall Dock Leveler safety toe guards
Limited Warranty:
Five-year structural and cylinders and one year pump and motor. Extended warranties available.
Surcharge:
Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
Note:
Testing, adjustments, training and scheduled maintenance procedures by others.
Documents
HPK-BEH-Series-Tech Sheet
Dock-Leveler Survey Information
Electrical-Voltage-International
NEMA-Enclosure-Types
Prop. 65 WARNING
Tall Dock Leveler - HPK-BEH Series
Model No.
Capacity
Width
Length
Height
Price
1)
HPK-BEH-56-30-20
20,000
62"
6'
30"
$20,056.94
2)
HPK-BEH-66-30-20
20,000
72"
6'
30"
$20,133.49
3)
HPK-BEH-76-30-20.5
20,000
78"
6'
30"
$20,210.04
4)
HPK-BEH-56-38-20
20,000
62"
6'
38"
$20,286.60
5)
HPK-BEH-66-38-20
20,000
72"
6'
38"
$20,363.15
6)
HPK-BEH-76-38-20.5
20,000
78"
6'
38"
$20,439.70
7)
HPK-BEH-56-48-20
20,000
62"
6'
48"
$20,516.26
8)
HPK-BEH-66-48-20
20,000
72"
6'
48"
$20,594.48
9)
HPK-BEH-76-48-20.5
20,000
78"
6'
48"
$20,669.36
10)
HPK-BEH-58-30-20
20,000
62"
8'
30"
$20,286.60
11)
HPK-BEH-68-30-20
20,000
72"
8'
30"
$20,516.26
12)
HPK-BEH-78-30-20.5
20,000
78"
8'
30"
$20,745.92
13)
HPK-BEH-58-38-20
20,000
62"
8'
38"
$20,975.58
14)
HPK-BEH-68-38-20
20,000
72"
8'
38"
$21,205.24
15)
HPK-BEH-78-38-20.5
20,000
78"
8'
38"
$21,434.90
16)
HPK-BEH-58-48-20
20,000
62"
8'
48"
$21,664.56
17)
HPK-BEH-68-48-20
20,000
72"
8'
48"
$21,894.22
18)
HPK-BEH-78-48-20.5
20,000
78"
8'
48"
$22,123.87
Tall Dock Leveler - HPK-BEH Series (continued)
Model No.
Capacity
Width
Length
Height
Price
19)
HPK-BEH-56-30-30
30,000
62"
6'
30"
$20,314.89
20)
HPK-BEH-66-30-30
30,000
72"
6'
30"
$20,391.44
21)
HPK-BEH-76-30-30.5
30,000
78"
6'
30"
$20,468.00
22)
HPK-BEH-56-38-30
30,000
62"
6'
38"
$20,544.55
23)
HPK-BEH-66-38-30
30,000
72"
6'
38
$20,621.10
24)
HPK-BEH-76-38-30.5
30,000
78"
6'
38"
$20,697.66
25)
HPK-BEH-56-48-30
30,000
62"
6'
48"
$20,774.21
26)
HPK-BEH-66-48-30
30,000
72"
6'
48"
$20,850.76
27)
HPK-BEH-76-48-30.5
30,000
78"
6'
48"
$20,927.32
28)
HPK-BEH-58-30-30
30,000
62"
8'
30"
$20,544.55
29)
HPK-BEH-68-30-30
30,000
72"
8'
30"
$20,774.21
30)
HPK-BEH-78-30-30.5
30,000
78"
8'
30"
$21,003.87
31)
HPK-BEH-58-38-30
30,000
62"
8'
38"
$21,233.53
32)
HPK-BEH-68-38-30
30,000
72"
8'
38"
$21,463.19
33)
HPK-BEH-78-38-30.5
30,000
78"
8'
38"
$21,692.85
34)
HPK-BEH-58-48-30
30,000
62"
8'
48"
$21,922.51
35)
HPK-BEH-68-48-30
30,000
72"
8'
48"
$22,152.17
36)
HPK-BEH-78-48-30.5
30,000
78"
8'
48"
$22,381.83
PROP 65 WARNING
For California Residents:
www.P65Warnings.ca.gov
Products on this page may lead to cancer or reproductive harm.
