Heavy Capacity Dock Leveler

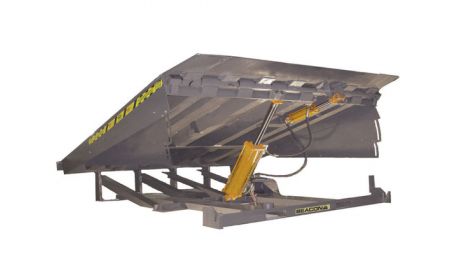

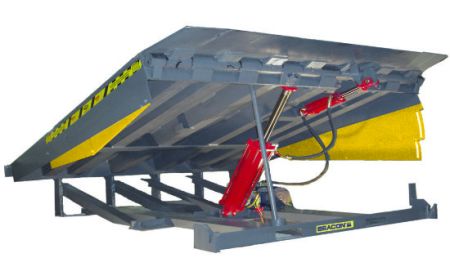

Heavy Capacity Dock Leveler
Beacon
®
BHD5 Series
This high capability Heavy Capacity Dock Leveler is a premium series which includes auto to dock recycle return. This is our most heavy duty hinged lip dock leveler with capacities up to 80,000 lbs. The BHD5 series is durable and made for rigorous applications.
Starting at:
$
17,644.96
See chart below and click a model number
Product Details
Construction:
The series features heavy-duty welded structural steel construction. The BHD5 series uses heavy duty rear angles with strategically placed gussets to provide maximum structural support and frame strength.
Size:
This BHD5 series has 6', 6.5' or 7' deck widths. The units feature 6', 8' or 10' nominal lengths. Special sizes for most pit sizes are available. Free standing levelers are also available as a special quote.
Electrical:
These units feature a 1 Hp motor, 230 V AC or 460 V AC, 3 phase, 60 Hz as standard or 115 V AC or 230 V AC as a up-charge option.
Color:
Finish - Enamel base gray paint.
Operation:
The two hydraulic cylinders independently controls the deck and lip movement. The deck and lip auto recycles into the stored loading dock position. This recycle procedure is standard for the BHD5 Heavy Capacity Dock Leveler series after truck departs.
Capacities:
This BHD5 series features service capacities of 50,000, 60,000, and 80,000 lbs. Published ratings are static, dynamic roll over is 50% of static.
Standard:
These units come standard with a 16" hinged lip, full-range toe guards and dock bumpers.
Options:
A BHD5-VERSA is available which combines control boxes for the BHD5, BEVR650, and overhead doors into one unit. This unit increases dock safety by ensuring the correct operation sequence of dock equipment. Discount available when purchased with BEVR650.
Limited Warranty:
Five-year structural and cylinders and one year pump and motor. Extended warranties available.
Materials:
The Heavy Capacity Dock Leveler includes 55,000 lb. minimum yield steel. The Beacon frame support struts provide unparalleled structural reinforcement and safety.
Surcharge:
Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
Note:
Heavier capacity units will not only accommodate heavier loads but will last longer in multi-shift operations.
Documents
BHD5-Tech-Sheet
Versa-Panel-Info
Versa-Panel-Tech-Sheet
Electrical-Voltage-International
NEMA-Enclosure-Types
Wheel-Chocks-OSHA
BSJS-1012-OSHA
BHD5-Owners-Manual
Prop. 65 WARNING
Options
Heavy Capacity Dock Leveler - BHD5 Series
Model No.
Capacity (LBS)
Width
Height
Length
Voltage
Controls
Price
1)
BHD56650
50,000
72"
19"
6'
115 Vac, 1 Ph, 60 Hz.
Touch Screen Control Panel
$17,644.96
2)
BHD56850
50,000
72"
19"
8'
115 Vac, 1 Ph, 60 Hz.
Touch Screen Control Panel
$18,234.60
3)
BHD56850.5
50,000
78"
19"
8'
115 Vac, 1 Ph, 60 Hz.
Touch Screen Control Panel
$18,738.34
4)
BHD57850
50,000
83"
19"
8'
115 Vac, 1 Ph, 60 Hz.
Touch Screen Control Panel
$19,594.94
5)
BHD561050
50,000
72"
23"
10'
115 Vac, 1 Ph, 60 Hz.
Touch Screen Control Panel
$27,854.48
6)
BHD571050
50,000
83"
23"
10'
115 Vac, 1 Ph, 60 Hz.
Touch Screen Control Panel
$21,558.84
7)
BHD56660
60,000
72"
19"
6'
115 Vac, 1 Ph, 60 Hz.
Touch Screen Control Panel
$18,099.96
8)
BHD56860
60,000
72"
19"
8'
115 Vac, 1 Ph, 60 Hz.
Touch Screen Control Panel
$19,409.23
9)
BHD56860.5
60,000
78"
19"
8'
115 Vac, 1 Ph, 60 Hz.
Touch Screen Control Panel
$20,467.78
10)
BHD57860
60,000
83"
19"
8'
115 Vac, 1 Ph, 60 Hz.
Touch Screen Control Panel
$20,298.32
11)
BHD561060
60,000
72"
23"
10'
115 Vac, 1 Ph, 60 Hz.
Touch Screen Control Panel
$28,817.86
12)
BHD571060
60,000
83"
23"
10'
115 Vac, 1 Ph, 60 Hz.
Touch Screen Control Panel
$23,070.07
Heavy Capacity Dock Leveler - BHD5 Series (continued)
Model No.
Capacity (LBS)
Width
Height
Length
Voltage
Controls
Price
13)
BHD56680
80,000
72"
19"
6'
115 Vac, 1 Ph, 60 Hz.
Touch Screen Control Panel
$19,694.76
14)
BHD57680
80,000
83"
19"
6'
115 Vac, 1 Ph, 60 Hz.
Touch Screen Control Panel
$20,500.28
15)
BHD56880
80,000
72"
19"
8'
115 Vac, 1 Ph, 60 Hz.
Touch Screen Control Panel
$21,087.60
16)
BHD57880
80,000
83"
19"
8'
115 Vac, 1 Ph, 60 Hz.
Touch Screen Control Panel
$22,011.51
17)
BHD561080.5
80,000
78"
23"
10'
115 Vac, 1 Ph, 60 Hz.
Touch Screen Control Panel
$30,958.19
18)
BHD571080
80,000
83"
23"
10'
115 Vac, 1 Ph, 60 Hz.
Touch Screen Control Panel
$23,522.75
OPTION
Model No.
Description
Price
19)
VERSA-PANEL
OPTION - Versa Panel with NEMA 12 enclosure: A single control station for the BHD5 or BH5 hydraulic dock leveler and BEVR650 electric truck restraint; overhead door control is included. Price is based on substituting BHD5 or BH5 and BEVR650 control box.
$4,019.68
PROP 65 WARNING
For California Residents:
www.P65Warnings.ca.gov
Products on this page may lead to cancer or reproductive harm.
