Browse 10 ProductsPortable Dock Plate
Beacon® BTAS Series

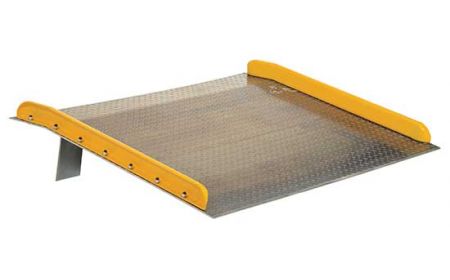

The OSHA compliant Portable Dock Plate with steel curbs are made for portability and safety. These Portable Dock Plate units have legs that are bolted on and lock for stability.
Starting at:
$1,443.19
Product Details
- Construction: Units are constructed of high-strength aluminum tread plate. Safety curbs are made of structural steel with cast tapered ends.
- Size: Beacon models are available in sizes ranging from 54" wide x 36" long to 72" wide x 72" long. Legs are 12" from the beveled edge. The bend is 11 degrees and 9 inches from the beveled edge.
- Service Range: Portable Dock Plates are available with a height difference of 5" to 12".
- Color: Safety curbs are painted Beacon yellow for optimum visibility.
- Capacity: These Portable Dock Plates are available in capacities of 10,000, 15,000, or 20,000-lb. capacities.
- Note: When using these units with three-wheeled fork trucks, select a model with a capacity at least 4 times the fork truck's lifting capacity.
| Portable Dock Plate - BTAS Series | ||||||
| Model No. | Capacity | Width | Length | Ht. Difference 11 Deg./19% (In) | Note | Price |
| 1) BTAS-10-6036 | 10,000 | 60" | 36" | 5 | A | $1,443.19 |
| 2) BTAS-10-6048 | 10,000 | 60" | 48" | 7 | A | $1,825.06 |
| 3) BTAS-10-6060 | 10,000 | 60" | 60" | 10 | A | $2,251.54 |
| 4) BTAS-10-6072 | 10,000 | 60" | 72" | 12 | A | $2,806.83 |
| 5) BTAS-10-7236 | 10,000 | 72" | 36" | 5 | A | $1,780.93 |
| 6) BTAS-10-7248 | 10,000 | 72" | 48" | 7 | A | $2,104.55 |
| 7) BTAS-10-7260 | 10,000 | 72" | 60" | 10 | A | $2,658.35 |
| 8) BTAS-10-7272 | 10,000 | 72" | 72" | 12 | A | $6,968.57 |
| 9) BTAS-15-6036 | 15,000 | 60" | 36" | 5 | A | $1,745.55 |
| 10) BTAS-15-6048 | 15,000 | 60" | 48" | 7 | A | $2,272.61 |
| 11) BTAS-15-6060 | 15,000 | 60" | 60" | 10 | A | $3,266.68 |
| 12) BTAS-15-6072 | 15,000 | 60" | 72" | 12 | A | $3,344.61 |
| 13) BTAS-15-7236 | 15,000 | 72" | 36" | 5 | A | $1,764.92 |
| 14) BTAS-15-7248 | 15,000 | 72" | 48" | 7 | A | $2,642.43 |
| 15) BTAS-15-7260 | 15,000 | 72" | 60" | 10 | A | $3,480.61 |
| 16) BTAS-15-7272 | 15,000 | 72" | 72" | 12 | A | $7,375.43 |
Portable Dock Plate - BTAS Series (continued) |
||||||
| Model No. | Capacity | Width | Length | Ht. Difference 11 Deg./19% (In) | Note | Price |
| 17) BTAS-20-6036 | 20,000 | 60" | 36" | 5 | A | $1,690.63 |
| 18) BTAS-20-6048 | 20,000 | 60" | 48" | 7 | A | $2,309.82 |
| 19) BTAS-20-6060 | 20,000 | 60" | 60" | 10 | A | $3,653.96 |
| 20) BTAS-20-6072 | 20,000 | 60" | 72" | 12 | A | $4,004.22 |
| 21) BTAS-20-7236 | 20,000 | 72" | 36" | 5 | A | $1,899.50 |
| 22) BTAS-20-7248 | 20,000 | 72" | 48" | 7 | A | $2,792.77 |
| 23) BTAS-20-7260 | 20,000 | 72" | 60" | 10 | A | $3,799.10 |
| 24) BTAS-20-7272 | 20,000 | 72" | 72" | 12 | A | $7,647.81 |
| Notes: A: Available Accessories: Lifting Chains, Wheel Kit, Handle Kit & Lever Kit | ||||||
