Air Dock Levelers
Air Dock Levelers
Beacon
®
BX3 Series
Beacon
®

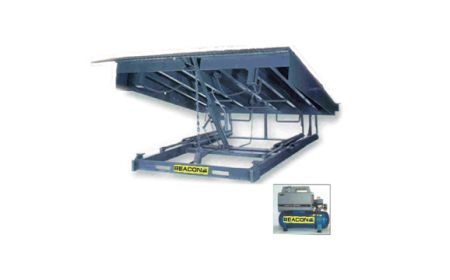

Air Dock Levelers with mechanical override for emergencies and power outages, compensate for height differences between truck beds and loading docks. These Pneumatic Powered Levelers feature simple, push-button controls, automatic recycling lip, and operation powered through shop air. The lightweight lowering feature gently lowers lip onto truck bed with just the push of a foot. In case of a power outage, units may be operated manually using a pull-chain. Lip keepers also serve as night locks for extra security and allow for safe cross traffic when stored.
Starting at:
$
8,497.79
See chart below and click a model number
Product Details
Construction:
Deck is constructed from 1/4" 55,000-lb. minimum yield steel and is supported by structural C channel. Beams welded to full-width header plate at unit's front. Lip is either 1/2" or 5/8" thick. Double 60,000-lb. safety legs add extra support.
Size:
Units are available with deck widths of 6', 6' 6", or 7' and deck lengths of 6' and 8''. Contact Beacon for custom sizes. Lip is 16" long. The continuous hinge is 1" or 1-1/8" in diameter and the hinge tube is 1-5/8" or 2" in overall diameter.
Service Range:
Units have a service range of +/- 12" or +/- 16".
Powered:
Reservoir air tank supply independently sold or fed by customer air supply system.
Installation:
Easy installation with front and rear forklift slots and side ports. Rear angle is 2" wider than unit for extra welding space. Control panel may be mounted near dock door; compressor may be mounted above opening, near door, or remotely.
Color:
Finish - Enamel base gray paint.
Weight:
1,340 to 2,802 lbs.
Operation:
Units are operated by shop air or optional compact, industrial strength compressor. The positive hold down feature allows up-down float when in service.
Capacity:
Capacities range from 30,000 lbs. to 45,000 lbs.
Standard:
Units come standard with 100' of air lines, lip keepers, grease fittings, 2 molded bumpers, direct extension spring counter balance, and maintenance strut. Custom sizes available.
Options:
Air Dock Leveler options include 18" or 20" lip, abrasive deck, hot-dip galvanized finish, below dock control, laminated bumpers, powder-coated yellow full-range toe guards, side and rear weather seals, quiet-close hydra-lip, and foam insulation.
Surcharge:
Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
Documents
BX3-Tech-Sheet
Options
Air Dock Levelers - BX3 Series
Model No.
Capacity (LBS)
Width
Length
Height
Voltage
Controls
Price
1)
BX36630
30,000
6'
6'
19"
115 Vac, 1 Ph, 60 Hz.
Selector Switch
$9,783.75
2)
BX36630.5
30,000
6' 6"
6'
19"
115 Vac, 1 Ph, 60 Hz.
Selector Switch
$10,002.85
3)
BX37630
30,000
7'
6'
19"
115 Vac, 1 Ph, 60 Hz.
Selector Switch
$8,497.79
4)
BX36830
30,000
6'
8'
19"
115 Vac, 1 Ph, 60 Hz.
Selector Switch
$9,994.42
5)
BX36830.5
30,000
6' 6"
8'
19"
115 Vac, 1 Ph, 60 Hz.
Selector Switch
$10,845.55
6)
BX37830
30,000
7'
8'
19"
115 Vac, 1 Ph, 60 Hz.
Selector Switch
$10,997.23
7)
BX36635
35,000
6'
6'
19"
115 Vac, 1 Ph, 60 Hz.
Selector Switch
$10,612.96
8)
BX36635.5
35,000
6' 6"
6'
19"
115 Vac, 1 Ph, 60 Hz.
Selector Switch
$10,789.93
9)
BX37635
35,000
7'
6'
19"
115 Vac, 1 Ph, 60 Hz.
Selector Switch
$10,985.44
10)
BX36835
35,000
6'
8'
19"
115 Vac, 1 Ph, 60 Hz.
Selector Switch
$10,891.05
11)
BX36835.5
35,000
6' 6"
8'
19"
115 Vac, 1 Ph, 60 Hz.
Selector Switch
$11,555.10
12)
BX37835
35,000
7'
8'
19"
115 Vac, 1 Ph, 60 Hz.
Selector Switch
$11,863.53
Air Dock Levelers - BX3 Series (continued)
Model No.
Capacity (LBS)
Width
Length
Height
Voltage
Controls
Price
13)
BX36640
40,000
6'
6'
19"
115 Vac, 1 Ph, 60 Hz.
Selector Switch
$10,906.22
14)
BX36640.5
40,000
6' 6"
6'
19"
115 Vac, 1 Ph, 60 Hz.
Selector Switch
$10,971.95
15)
BX37640
40,000
7'
6'
19"
115 Vac, 1 Ph, 60 Hz.
Selector Switch
$11,121.95
16)
BX36840
40,000
6'
8'
19"
115 Vac, 1 Ph, 60 Hz.
Selector Switch
$11,051.17
17)
BX36840.5
40,000
6' 6"
8'
19"
115 Vac, 1 Ph, 60 Hz.
Selector Switch
$11,855.10
18)
BX37840
40,000
7'
8'
19"
115 Vac, 1 Ph, 60 Hz.
Selector Switch
$12,021.96
19)
BX36645
45,000
6'
6'
19"
115 Vac, 1 Ph, 60 Hz.
Selector Switch
$11,093.30
20)
BX36645.5
45,000
6' 6"
6'
19"
115 Vac, 1 Ph, 60 Hz.
Selector Switch
$11,197.80
21)
BX37645
45,000
7'
6'
19"
115 Vac, 1 Ph, 60 Hz.
Selector Switch
$11,292.18
22)
BX36845
45,000
6'
8'
19"
115 Vac, 1 Ph, 60 Hz.
Selector Switch
$11,197.80
23)
BX36845.5
45,000
6' 6"
8'
19"
115 Vac, 1 Ph, 60 Hz.
Selector Switch
$11,934.32
24)
BX37845
45,000
7'
8'
19"
115 Vac, 1 Ph, 60 Hz.
Selector Switch
$12,220.84
OPTION
Model No.
Description
HP
Voltage
Phase
Max PSI
CFM @ 40 PSI
CFM @ 90 PSI
Pump Type
Pump Drive
Tank Size
Tank Outlet
Overall Size (W x L x H)
Price
25)
BLA5706
Optional PUMA Air Compressor for BX3 series
1.5
115V AC
1
150
3.0
2.2
Single-State
Direct
1.5 Gallons
¼"
8"x19"x18"
$1,331.47
PROP 65 WARNING
For California Residents:
www.P65Warnings.ca.gov
Products on this page may lead to cancer or reproductive harm.
