Loading Dock Platform

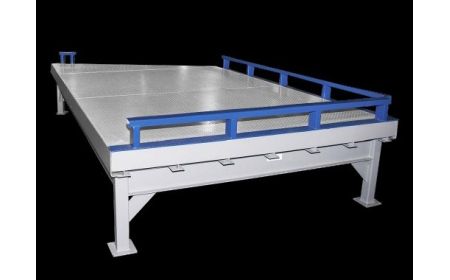

Beacon® Loading Dock Platform – BFL Series

Product Details

• Models: The standard deck height is 48" with fixed legs. Special heights are available, consult with Beacon for your special height requirement.
• Construction: Units feature heavy duty steel construction.
• Size: Sizes range from 8' x 8' to 8' x 12'.
• Service Range: Platform height is 48".
• Overall Width: Standard width is 8'. Modular assembly available to connect multiple platforms for larger dock surfaces.
• Overall Length: Standard lenghts are available in 8', 10' or 12'
• Installation: " Different standard or custom configurations are available for both length and width. Provides flexibility to match specific trailer and facility requirements. The unit can be relocated to different areas as needed, offering a portable and cost effective alternative to permanent dock installations."
• Color: Units feature a blue and gray finish.
• Weight: Units weigh from 2,050 to 4,034 lbs.
• Scope: Loading Dock Platform provides a fast and economical way to expand existing internal or exterior dock areas without the expense of concrete construction, allowing safe and efficient loading and unloading operations anywhere on site.
• Operation: The platform design allows straight drive on and drive off access or 90 degree turnability, enabling forklifts to maneuver easily for optimal material handling efficiency.
• Capacities: Available with service capacities of 16,000, 20,000, 25,000 or 30,000 lbs.
• Options: Available options include compatibility with a yard ramp for driving up and down the platform, or an optional "EOD” Edge-of-Dock Leveler for servicing semi-trailers directly, ensuring smooth transition and efficient loading operations.
• Usage: Ideal for temporary or permanent dock expansion – perfect for warehouses, distribution centers and manufacturing facilities.
• Note: Optional safety rails and handrails available providing enhanced OSHA compliance with worker protection.
