Additional Lifting Beam
(4 Models)

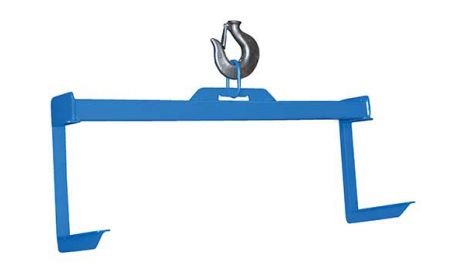

BMATL-120 Lifting Beam

Lifting Beam - BSBM series

Bear Claw® BMATL Series

Model Number:

BMATL-120



Minimum Arm Width: 24"
Maximum Arm Width: 120"
Adjustment Increments: 6"
Usable Lifting Arm (L x H): 12" x 18"
Bail Thickness: ¾"
Upper Bail (W x L): 4-¼" x 6-¾"
Usable Upper Bail (W x L): 2-¾" x 5-¼"
Headroom: ¾"
Overall Size (W x L x H): 14" x 126" x 27-3/16"
Capacity (LBS): 2,000

Shipping Weight (LBS): 280
Shipping Class: 85
Category: Lifting Beam

Prop 65 WARNING


$2,177.75 each
Lifting Beam - BSBM series

Bear Claw® BMATL Series

Model Number:

BMATL-120



Minimum Arm Width: 24"
Maximum Arm Width: 120"
Adjustment Increments: 6"
Usable Lifting Arm (L x H): 12" x 18"
Bail Thickness: ¾"
Upper Bail (W x L): 4-¼" x 6-¾"
Usable Upper Bail (W x L): 2-¾" x 5-¼"
Headroom: ¾"
Overall Size (W x L x H): 14" x 126" x 27-3/16"
Capacity (LBS): 2,000

Shipping Weight (LBS): 280
Shipping Class: 85
Category: Lifting Beam

Prop 65 WARNING

$2,177.75
Quantity:

It is the customer's responsibility to verify BMATL-120 correctness of fit for applications. It is the customer's responsibility to verify that this Bear Claw® Lifting Beam - BMATL Series complies with all safety laws, codes and regulations.

Tariffs or surcharges may apply to current published pricing.

TM
Call Beacon: 800-454-7159
