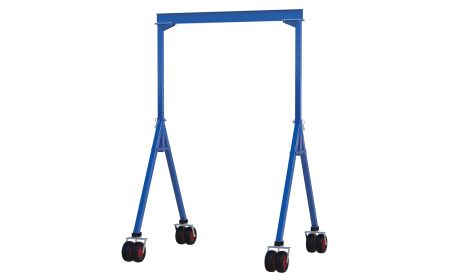

Browse 10 ProductsSteel A Frame Hoist with Pneumatic Casters
Bear Claw® BAHS-PNU Series
Steel A Frame Hoist with Pneumatic Casters allow for mobility.
Starting at:
$7,746.09
Product Details
- Capacities: 4,000 lbs while hoist is stationary. The unit is designed to only be utilized in a fixed location. Not designed to carry loads during movement.
- Note: Testing, adjustments, training and scheduled maintenance procedures by others.
| Bear Claw® Steel A Frame Hoist with Pneumatic Casters - BAHS-PNU Series | ||||||||
| Model No. | Under I-Beam to Ground | Beam Length | Beam Height | Base Width | Flange Width | Capacity | Note | Price |
| 1) BAHS-4-10-12-PNU | 102" to 156" | 10' | 6" | 108⅝" | 4" | 4,000 lbs. | A | $8,155.44 |
| 2) BAHS-4-10-14-PNU | 114" to 180" | 10' | 6" | 108⅝" | 4" | 4,000 lbs. | A | $8,484.20 |
| 3) BAHS-4-10-16-PNU | 138" to 204" | 10' | 6" | 108⅝" | 4" | 4,000 lbs. | A | $9,320.63 |
| 4) BAHS-4-15-7-PNU | 72" to 96" | 15' | 6" | 66½" | 4" | 4,000 lbs. | A | $7,746.09 |
| 5) BAHS-4-15-9-PNU | 114" to 180" | 15' | 6" | 78-7/16" | 4" | 4,000 lbs. | A | $7,884.05 |
| 6) BAHS-4-15-10-PNU | 90" to 132" | 15' | 6" | 84⅜" | 4" | 4,000 lbs. | A | $8,008.66 |
| 7) BAHS-4-15-12-PNU | 102" to 156" | 15' | 6" | 96¼" | 4" | 4,000 lbs. | A | $8,532.55 |
| 8) BAHS-4-15-14-PNU | 114" to 180" | 15' | 6" | 108⅝" | 4" | 4,000 lbs. | A | $9,257.52 |
| 9) BAHS-4-15-16-PNU | 138" to 204" | 15' | 6" | 108⅝" | 4" | 4,000 lbs. | A | $10,093.79 |
| 10) BAHS-4-20-12-PNU | 102" to 156" | 20' | 10⅛" | 96¼" | 4" | 4,000 lbs. | A | $9,549.42 |
| 11) BAHS-4-20-14-PNU | 114" to 180" | 20' | 10⅛" | 108⅝" | 4" | 4,000 lbs. | A | $9,904.48 |
| 12) BAHS-4-20-16-PNU | 138" to 204" | 20' | 10⅛" | 108⅝" | 4" | 4,000 lbs. | A | $10,741.01 |
| Notes: A: * Deduct 12" for distance between upright; Deduct 30" for usable trolley travel length* | ||||||||
| OPTION | ||||||||
| Model No. | Description | Note | Price | |||||
| 13) BAHS-KIT | (2) Come-a-longs for height adjustment. (Not for lifting.) | $183.22 | ||||||
| 14) BAHS-PNU-DT-RF | Pneumatic Rubber Tire. 15½"x5⅞". 1,000 lbs. capacity. | $1,253.06 | ||||||
| 15) BAHS-PNU-DT4-RF | Pneumatic Rubber Dual Tire Kit. 15½"x5⅞". 4,000 lbs. capacity. | $3,946.69 | ||||||
| 16) BAHS-STLO | Stationary Leg Option. Factory Installed. *Not compatable with BAHS-10-15-10* | $324.26 | ||||||
| 17) BAHS-STLO-RF | Stationary Leg Option. Field Installed. *Not compatable with BASH-10-15-10* | $432.67 | ||||||
| Notes: A: * Deduct 12" for distance between upright; Deduct 30" for usable trolley travel length* | ||||||||
PROP 65 WARNING
For California Residents: www.P65Warnings.ca.gov
Products on this page may lead to cancer or reproductive harm.
