Fixed Height Steel Gantry Crane-V-Groove Casters

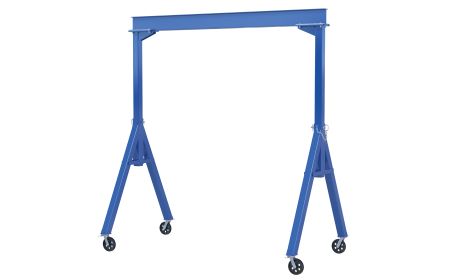

Bear Claw® Fixed Height Steel Gantry Crane with V Groove Casters – BFHS-VG Series

Product Details

• Models: Fixed Height Steel Gantry Crane with V groove casters come standard with (four) V groove casters.
• Construction: Units feature steel construction.
• Size: Available with I Beam lengths of 10', 15', or 20'. I Beam heights are 6", 8-1/8", 10-1/8", 12-3/16", or 12-5/16".
• Service Range: Fixed Height Steel Gantry Crane with V Groove Casters have a clearance of 10' or 10-1" under the I Beam.
• Installation: It is the responsibility of the operator to inspect the unit prior to operation and frequently to ensure safe operation. Please see ASME B30.17 for more details.
• Color: Units feature a Bear Claw blue liquid coat finish.
• Weight: Depending on model selection units weigh from 783 to 1,357 lbs.
• Scope: Designed for fixed height lifting and controlled movement on approved track systems when operated in accordance with applicable safety standards.
• Operation: Base widhths are 64-1/4", 64-1/2", or 65-1/2". The flange widths available are 4" or 6-1/2".
• Capacities: Available in multiple load capacities, 2,000 lb, 4,000 lb, and 6,000 lb, Designed for industrial overhead lifting and material handling.
• Options: Hoist and trolley sold seperately.
• Limited Warranty: The Fixed Steel Gantry Crane with V groove casters is designed for a fast assembly time and to be disassembled for compact storage and lower transportation costs.
• Usage: Do not move while loaded unless using the V groove caster and track option.
• Note: Usable distance between uprights is beam length minus 18". The usable trolley travel is beam length minus 23-3/4".
