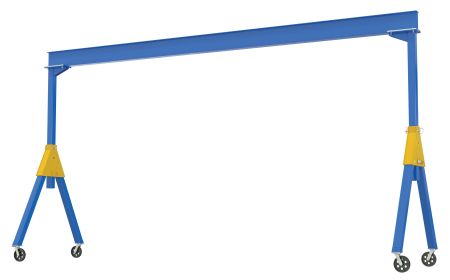

Bear Claw® Fixed Height Steel Gantry Crane Kit with V Groove Casters – BFHSN-VG Series

The Fixed Height Steel Gantry Crane Kit with V-Groove Casters is designed to provide rigid, heavy-duty overhead lifting with controlled, track guided mobility. Allows faster crane positioning in target lifting location.
Starting at: $3,418.80

See chart below and click a model number

Product Details

  • Models: The Fixed Height Steel Gantry Crake Kit with V Groov Casters are equipped with four V-groove casters as standard for use on a guided track system. Track sold separately.
  • Construction: Units feature steel construction.
  • Size: Fixed Height. Units range from 10' to 20' long I Beams and have an under I Beam height of 10' or 10'-1".
  • Installation: It is the responsibility of the operator to inspect the unit prior to operation and frequently to ensure safe operation. Please see ASME B30.17 for more details.
  • Color: Units feature a Bear Claw blue liquid coat finish.
  • Weight: Depending on model selection units weigh from 814 to 1,399 lbs.
  • Operation: Base widths are 64-1/2". The flange width is 4" or 6-1/2"
  • Capacities: Available with service capacities of 2,000, 4,000, 6,000, or 8,000 lbs.
  • Options: Hoist & Trolley sold separately.
  • Limited Warranty: The Fixed Steel Gantry Crane Kit with V groove casters is designed for a fast assembly time and to be disassembled for compact storage and lower transportation costs.
  • Usage: The unit must not be moved while supporting a load.
  • Note: Usable Distance between uprights is beam length minus 18”. The usable trolley travel length is length minus 23-3/4”.
Fixed Height Steel Gantry Crane Kit with V Groove Casters – BFHSN-VG Series
Model No. Capacity (LBS) Beam Length Beam Height Under I-Beam Clearance Base Width Flange Width Price
1) BFHSN-2-10-VG 2,000 10' 6" 10' 64½" 4" $3,418.80
2) BFHSN-2-15-VG 2,000 15' 6" 10' 64½" 4" $3,624.19
3) BFHSN-2-20-VG 2,000 20' 10⅛" 10' 64½" 4" $4,350.62
4) BFHSN-4-10-VG 4,000 10' 8⅛" 10' 64½" 4" $3,691.82
5) BFHSN-4-15-VG 4,000 15' 8⅛" 10' 64½" 4" $4,139.31
6) BFHSN-4-20-VG 4,000 20' 12-3/16" 10' 64½" 4" $5,863.41
7) BFHSN-6-10-VG 6,000 10' 8⅛" 10'-1" 64½" 4" $4,253.84
8) BFHSN-6-15-VG 6,000 15' 10⅛" 10'-1" 64½" 4" $5,760.74
9) BFHSN-6-20-VG 6,000 20' 12-5/16" 10'-1" 64½" 6½" $6,600.00
10) BFHSN-8-10-VG 8,000 10' 8⅛" 10'-1" 64½" 4" $6,123.07
11) BFHSN-8-15-VG 8,000 15' 10⅛" 10'-1" 64½" 4" $6,469.47
12) BFHSN-8-20-VG 8,000 20' 12-5/16" 10'-1" 64½" 6½" $8,080.54
