Adjustable Aluminum Gantry Crane-Pneumatic Tires

Adjustable Aluminum Gantry Crane with Pneumatic Tires - BAHA-PNU Series by Beacon Industries

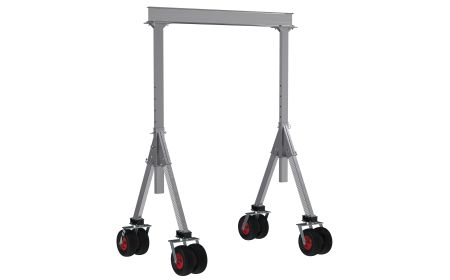

Bear Claw® Adjustable Aluminum Gantry Crane with Pneumatic Tires – BAHA-PNU Series

The adjustable Aluminum Gantry Crane is designed to work inside or outside to allow rolling over rough surfaces. The pneumatic tires are a type of casters that allow the aluminum frame easy movement from one work station to another. Lightweight but can withstand harsh environments.
Starting at: $4,421.04

See chart below and click a model number

Product Details

  • Construction: Adjustable Aluminum Gantry Crane with Pneumatic Tires features light weight aluminum construction for lightweight mobility.
  • Size: Base widths are 53-3/4", and the flange width ranges from 3-5/16" to 4-3/16". The height adjustment is ideal for manufacturing and maintenance facilities.
  • Service Range: Adjustable Height with a service range height of 6’-2” minimum and a 12’-6” maximum under I-beam.
  • Installation: It is the responsibility of the operator to inspect the unit prior to operation and frequently to ensure safe operation. Please see ASME B30.17 for more details.
  • Color: Units feature a corrosion resistant silver aluminum finish suitable for industrial material handling applications.
  • Weight: This series has a weight range from 254 lbs. to 739 lbs. designed to be assembled and disassembled at the job site.
  • Capacities: Models are designed with a 1,500 lb. to 4,000 lb.capacity.
  • Standard: Comes standard with pneumatic tires for smooth or rough terrain preventing marring during movement.
  • Options: Hoist and Trolley sold seperately.
  • Usage: Engineered for interior and exterior harsh environments. Do not move while loaded.
  • Note: The usable distance between uprights is overall I-Beam length minus 18”. The usable trolley travel length is overall I-Beam length minus 23-3/4”.

Documents
Adjustable Aluminum Gantry Crane with Pneumatic Tires – BAHA-PNU Series
Model No. Capacity (lbs.) Beam Length Beam Height Under I-Beam Range Base Width Flange Width Note Price
1) BAHA-4-8-8-PNU 4,000 8' 6" 6'-2" to 8'-8" 53¾" 3-5/16" A $9,561.16
2) BAHA-4-8-10-PNU 4,000 8' 6" 8'-2" to 10'-8" 53¾" 3-5/16" A $9,807.63
3) BAHA-4-8-12-PNU 4,000 8' 6" 10' to 12'-6" 53¾" 3-5/16" A $10,109.94
4) BAHA-4-10-8-PNU 4,000 10' 6" 6'-2" to 8'-8" 53¾" 3-5/16" A $10,482.67
5) BAHA-4-10-10-PNU 4,000 10' 6" 8'-2" to 10'-8" 53¾" 3-5/16" A $10,692.42
6) BAHA-4-10-12-PNU 4,000 10' 6" 10' to 12'-6" 53¾" 3-5/16" A $11,209.09
7) BAHA-4-12-8-PNU 4,000 12' 8" 6'-2" to 8'-8" 53¾" 4" A $10,682.15
8) BAHA-4-12-10-PNU 4,000 12' 8" 8'-2" to 10'-8" 53¾" 4" A $11,063.83
9) BAHA-4-12-12-PNU 4,000 12' 8" 10' to 12'-6" 53¾" 4" A $11,594.94
10) BAHA-4-15-8-PNU 4,000 15' 8" 6'-2" to 8'-8" 53¾" 4-3/16" A $11,883.96
11) BAHA-4-15-10-PNU 4,000 15' 8" 8'-2" to 10'-8" 53¾" 4-3/16" A $12,214.19
12) BAHA-4-15-12-PNU 4,000 15' 8" 10' to 12'-6" 53¾" 4-3/16" A $13,021.21

13) BAHA-15-8-8-PNU 1,500 8' 6" 6'-2" to 8'-8" 53 -¾" 3-5/16" A $4,421.04
14) BAHA-15-8-10-PNU 1,500 8' 6" 8'-2" to 10'-8" 53 -¾" 3-5/16" A $4,531.09
15) BAHA-15-8-12-PNU 1,500 8' 6" 10' to 12'-6" 53 -¾" 3-5/16" A $4,709.01
16) BAHA-15-10-8-PNU 1,500 10' 6" 6'-2" to 8'-8" 53 -¾" 3-5/16" A $4,529.86
17) BAHA-15-10-10-PNU 1,500 10' 6" 8'-2" to 10'-8" 53 -¾" 3-5/16" A $4,639.91
18) BAHA-15-10-12-PNU 1,500 10' 6" 10' to 12'-6" 53 -¾" 3-5/16" A $4,817.82
19) BAHA-15-12-8-PNU 1,500 12' 8" 6'-2" to 8'-8" 53 -¾" 4" A $4,863.63
Model No. Capacity (lbs.) Beam Length Beam Width Under I-Beam Range Base Width Flange Width Note Price
20) BAHA-15-12-10-PNU 1,500 12' 8" 8'-2" to 10'-8" 53 -¾" 4" A $4,973.68
21) BAHA-15-12-12-PNU 1,500 12' 8" 10' to 12'-6" 53 -¾" 4" A $5,151.60
22) BAHA-15-15-8-PNU 1,500 15' 8" 6'-2" to 8'-8" 53 -¾" 4-3/16" A $5,460.95
23) BAHA-15-15-10-PNU 1,500 15' 8" 8'-2" to 10'-8" 53 -¾" 4-3/16" A $5,571.01
24) BAHA-15-15-12-PNU 1,500 15' 8" 10' to 12'-6" 53 -¾" 4-3/16" A $5,748.92
Notes:
A: * Hoist & Trolley sold separately*. *Assembly by others*.
