Mobile Tool Boxes

Mobile Tool Boxes - BAPTS series

Beacon® BAPTS-C, BSTTB-C Series

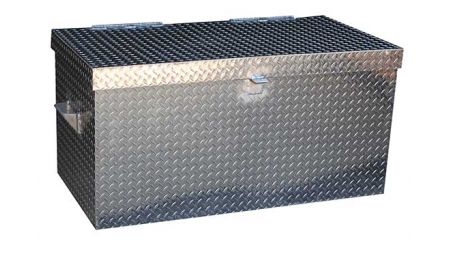

The Mobile Tool Boxes is designed to help store and secure belongings, tools, and more. This unit features a safety latch to be used with a padlock (padlock not included). Two sturdy handles make transportation easy.
Starting at: $1,067.25

See chart below and click a model number

Product Details

  • Construction: Units feature 1/8" thick aluminum diamond treadplate construction.
  • Size: Units range in width from 36" to 60" and in height from 24" to 36". All units are 24" deep.
  • Weight: Units range in weight from 97 to 162 lbs.
  • Capacity: All units feature a capacity of 2,500 lbs.
  • Options: Mobile Tool Boxes have four optional 5" x 2" casters are available. Optional 7-1/2" x 2-1/2" fork pockets are also available for forklift transport.

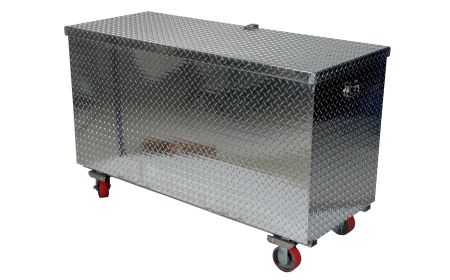

Mobile Tool Boxes – With Casters - BAPTS-C, BSTTB-C Series
Model No. Material Overall Size (W x L x H) Uniform Capacity Caster Material Caster Quantity / Diameter x Width Caster Quantity / Type Assembled Weight Price
1) BAPTS-2436-C Aluminum 37¼"x25⅞"x32-11/16" 2,500 lbs. Poly on Steel (4) 5"x2" (2) Swivel (2) Rigid 111 lbs. $1,232.55
2) BAPTS-2448-C Aluminum 49¼"x25⅞"x32-11/16" 2,500 lbs. Poly on Steel (4) 5"x2" (2) Swivel (2) Rigid 118 lbs. $1,371.54
3) BAPTS-2460-C Aluminum 61¼"x25⅞"x32¾" 2,500 lbs. Poly on Steel (4) 5"x2" (2) Swivel (2) Rigid 162 lbs. $1,588.39
4) BAPTS-3060-C Aluminum 61¼"x25⅞"x38¾" 2,500 lbs. Poly on Steel (4) 5"x2" (2) Swivel (2) Rigid 176 lbs. $1,707.92
5) BAPTS-3648-C Aluminum 49¼"x25⅞"x44-11/16" 2,500 lbs. Poly on Steel (4) 5"x2" (2) Swivel (2) Rigid 137 lbs. $1,628.71
6) BAPTS-3660-C Aluminum 61¼"x25⅞"x44¾" 2,500 lbs. Poly on Steel (4) 5"x2" (2) Swivel (2) Rigid 190 lbs. $1,845.29
7) BSTTB-2436-C Steel 25⅞"x37¼"x32-1/16" 3,000 lbs. Poly on Steel (4) 5"x2" (2) Swivel (2) Rigid 154 lbs. $1,068.88
8) BSTTB-2448-C Steel 25⅞"x49¼"x32-1/16" 3,000 lbs. Poly on Steel (4) 5"x2" (2) Swivel (2) Rigid 183 lbs. $1,249.72
9) BSTTB-2460-C Steel 25⅞"x61¼"x32-1/16" 3,000 lbs. Poly on Steel (4) 5"x2" (2) Swivel (2) Rigid 306 lbs. $1,489.48
10) BSTTB-3060-C Steel 25⅞"x61¼"x38-1/16" 3,000 lbs. Poly on Steel (4) 5"x2" (2) Swivel (2) Rigid 341 lbs. $1,620.73
11) BSTTB-3648-C Steel 25⅞"x49¼"x44-1/16" 3,000 lbs. Poly on Steel (4) 5"x2" (2) Swivel (2) Rigid 222 lbs. $1,534.80
12) BSTTB-3660-C Steel 25⅞"x61¼"x44-1/16" 3,000 lbs. Poly on Steel (4) 5"x2" (2) Swivel (2) Rigid 377 lbs. $1,772.99
Mobile Tool Boxes – With Fork Pocket - BAPTS-F, BSTTB-F Series
Model No. Material Overall Size (W x L x H) Uniform Capacity Fork Pocket Center Fork Pocket Width Fork Pocket Height Assembled Weight Price
13) BAPTS-2436-F Aluminum 37¼"x25⅞"x28-1/16" 2,500 lbs. 12" 7½" 2½" 88 lbs. $1,205.66
14) BAPTS-2448-F Aluminum 49¼"x25⅞"x28-1/16" 2,500 lbs. 24" 7½" 2½" 95 lbs. $1,368.74
15) BAPTS-2460-F Aluminum 61¼"x25⅞"x28-1/16" 2,500 lbs. 24" 7½" 2½" 140 lbs. $1,585.39
16) BAPTS-3060-F Aluminum 61¼"x25⅞"x34-1/16" 2,500 lbs. 24" 7½" 2½" 154 lbs. $1,706.30
17) BAPTS-3648-F Aluminum 49¼"x25⅞"x40-1/16" 2,500 lbs. 24" 7½" 2½" 113 lbs. $1,625.75
18) BAPTS-3660-F Aluminum 61¼"x25⅞"x40-1/16" 2,500 lbs. 24" 7½" 2½" 168 lbs. $1,846.81
19) BSTTB-2436-F Steel 25⅞"x37¼"x28-1/16" 3,000 lbs. 24" 8" 2⅞" 153 lbs. $1,067.25
20) BSTTB-2448-F Steel 25⅞"x49¼"x28-1/16" 3,000 lbs. 24" 8" 2⅞" 182 lbs. $1,246.88
21) BSTTB-2460-F Steel 25⅞"x61¼"x23-1/16" 3,000 lbs. 24" 8" 2⅞" 305 lbs. $1,488.04
22) BSTTB-3060-F Steel 25⅞"x61¼"x34-1/16" 3,000 lbs. 24" 8" 2⅞" 341 lbs. $1,619.28
23) BSTTB-3648-F Steel 25⅞"x49¼"x40-1/16" 3,000 lbs. 24" 8" 2⅞" 221 lbs. $1,533.25
24) BSTTB-3660-F Steel 25⅞"x61¼"x40-1/16" 3,000 lbs. 24" 8" 2⅞" 377 lbs. $1,774.41
Mobile Tool Boxes – With Casters and Fork Pocket - BAPTS-CF, BSTTB-CF Series
Model No. Material Overall Size (W x L x H) Uniform Capacity Caster Material Caster Quantity / Diameter x Width Caster Quantity / Type Fork Pocket Center Fork Pocket Width Fork Pocket Height Assembled Weight Price
25) BAPTS-2448-CF Aluminum 49¼"x25⅞"x32¾" 2,500 lbs. Poly on Steel (4) 5"x2" (2) Swivel (2) Rigid 24" 7½" 121 lbs.   $1,530.04
26) BAPTS-2460-CF Aluminum 61¼"x25⅞"x32¾" 2,500 lbs. Poly on Steel (4) 5"x2" (2) Swivel (2) Rigid 24" 7½" 139 lbs.   $1,745.09
27) BAPTS-3060-CF Aluminum 61¼"x25⅞"x38¾" 2,500 lbs. Poly on Steel (4) 5"x2" (2) Swivel (2) Rigid 24" 7½" 179 lbs.   $1,863.14
28) BAPTS-3648-CF Aluminum 49¼"x25⅞"x44¾" 2,500 lbs. Poly on Steel (4) 5"x2" (2) Swivel (2) Rigid 24" 7½" 139 lbs.   $1,787.08
29) BAPTS-3660-CF Aluminum 61¼"x25⅞"x40-1/16" 2,500 lbs. Poly on Steel (4) 5"x2" (2) Swivel (2) Rigid 24" 7½" 193 lbs.   $1,964.82
30) BSTTB-2448-CF Steel 25⅞"x49¼"x32-1/16" 3,000 lbs. Poly on Steel (4) 5"x2" (2) Swivel (2) Rigid 24" 8" 2⅞" 221 lbs. $1,424.72
31) BSTTB-2460-CF Steel 25⅞"x61¼"x25-1/16" 3,000 lbs. Poly on Steel (4) 5"x2" (2) Swivel (2) Rigid 24" 8" 2⅞" 342 lbs. $1,663.00
32) BSTTB-3060-CF Steel 25⅞"x61¼"x43-9/16" 3,000 lbs. Poly on Steel (4) 5"x2" (2) Swivel (2) Rigid 24" 8" 2⅞" 378 lbs. $1,794.00
33) BSTTB-3648-CF Steel 25⅞"x49¼"x44-1/16" 3,000 lbs. Poly on Steel (4) 5"x2" (2) Swivel (2) Rigid 24" 8" 2⅞" 258 lbs. $1,708.17
34) BSTTB-3660-CF Steel 25⅞"x61¼"x44-1/16" 3,000 lbs. Poly on Steel (4) 5"x2" (2) Swivel (2) Rigid 24" 8" 2⅞" 413 lbs. $1,887.55
Mobile Tool Boxes – With Caster and Fold Down Front Door - BAPTS-C-FD Series
Model No. Material Overall Size (W x L x H) Uniform Capacity Caster Material Caster Quantity / Diameter x Width Caster Quantity / Type Front Door Width Front Door Height Assembled Weight Price
35) BAPTS-2436-C-FD Aluminum 37¼"x25⅞"x32-11/16" 2,500 lbs. Poly on Steel (4) 5"x2" (2) Swivel (2) Rigid 24-13/16" 12¼" 112 lbs. $1,362.70
36) BAPTS-2448-C-FD Aluminum 49¼"x25⅞"x32-11/16" 2,500 lbs. Poly on Steel (4) 5"x2" (2) Swivel (2) Rigid 36⅞" 12¼" 118 lbs. $1,524.13
37) BAPTS-2460-C-FD Aluminum 61¼"x25⅞"x32-11/16" 2,500 lbs. Poly on Steel (4) 5"x2" (2) Swivel (2) Rigid 48-13/16" 12¼" 162 lbs. $1,754.07
38) BAPTS-3060-C-FD Aluminum 61¼"x25⅞"x38-11/16" 2,500 lbs. Poly on Steel (4) 5"x2" (2) Swivel (2) Rigid 48-13/16" 12¼" 176 lbs. $2,000.74
39) BAPTS-3648-C-FD Aluminum 49¼"x25⅞"x44-11/16" 2,500 lbs. Poly on Steel (4) 5"x2" (2) Swivel (2) Rigid 36-13/16 18¼" 136 lbs. $1,875.10
40) BAPTS-3660-C-FD Aluminum 61¼"x25⅞"x44-11/16" 2,500 lbs. Poly on Steel (4) 5"x2" (2) Swivel (2) Rigid 48-13/16" 18¼" 190 lbs. $2,085.87
Mobile Tool Boxes – With Fork Pockets and Fold Down Front Door – BAPTS-F-FD Series
Model No. Material Overall Size (W x L x H) Uniform Capacity Fork Pocket Center Fork Pocket Width Fork Pocket Height Front Door Width Front Door Height Assembled Weight Price
41) BAPTS-2436-F-FD Aluminum 37¼"x25⅞"x28-1/16" 2,500 lbs. 12" 7½" 2½" 24-13/16" 12¼" 89 lbs. $1,362.64
42) BAPTS-2448-F-FD Aluminum 49¼"x25⅞"x28-1/16" 2,500 lbs. 24" 7½" 2½" 36⅞" 12¼" 95 lbs. $1,524.05
43) BAPTS-2460-F-FD Aluminum 61¼"x25⅞"x28-1/16" 2,500 lbs. 24" 7½" 2½" 48-13/16" 12¼" 140 lbs. $1,754.07
44) BAPTS-3060-F-FD Aluminum 61¼"x25⅞"x34-1/16" 2,500 lbs. 24" 7½" 2½" 48-13/16" 12¼" 154 lbs. $2,090.41
45) BAPTS-3648-F-FD Aluminum 49¼"x25⅞"x40-1/16" 2,500 lbs. 24" 7½" 2½" 36-13/16 18¼" 112 lbs. $1,873.75
46) BAPTS-3660-F-FD Aluminum 61¼"x25⅞"x40-1/16" 2,500 lbs. 24" 7½" 2½" 48-13/16" 18¼" 168 lbs. $2,238.29
Mobile Tool Boxes – With Casters, Fork Pockets, and Fold Down Front Door – BAPTS-CF-FD Series
Model No. Material Overall Size (W x L x H) Uniform Capacity Caster Material Caster Quantity / Diameter x Width Caster Quantity / Type Fork Pocket Center Fork Pocket Width Fork Pocket Height Front Door Width Front Door Height Assembled Weight Price
47) BAPTS-2448-CF-FD Aluminum 49¼"x25⅞"x32-11/16" 2,500 lbs. Poly on Steel (4) 5"x2" (2) Swivel (2) Rigid 24" 7½" 2½" 36⅞" 12¼" 121 lbs. $1,683.83
48) BAPTS-2460-CF-FD Aluminum 61¼"x25⅞"x32-11/16" 2,500 lbs. Poly on Steel (4) 5"x2" (2) Swivel (2) Rigid 24" 7½" 2½" 48-13/16" 12¼" 165 lbs. $1,914.15
49) BAPTS-3060-CF-FD Aluminum 61¼"x25⅞"x38-11/16" 2,500 lbs. Poly on Steel (4) 5"x2" (2) Swivel (2) Rigid 24" 7½" 2½" 48-13/16" 12¼" 179 lbs. $2,257.63
50) BAPTS-3648-CF-FD Aluminum 49¼"x25⅞"x44-11/16" 2,500 lbs. Poly on Steel (4) 5"x2" (2) Swivel (2) Rigid 24" 7½" 2½" 36-13/16 18¼" 139 lbs. $2,036.68
51) BAPTS-3660-CF-FD Aluminum 61¼"x25⅞"x40-11/16" 2,500 lbs. Poly on Steel (4) 5"x2" (2) Swivel (2) Rigid 24" 7½" 2½" 48-13/16" 18¼" 193 lbs. $2,380.36
