Machine Guard Fencing - Woven Wire Mesh Panels - BSAF series

Beacon® BSAF Series

The Machine Guard Fencing is designed to form perimeters around heavy machinery, increasing workplace safety. Woven Wire Mesh Panels protect both equipment and personnel by employing the use of these units. Various types of mesh openings, tolerances, heights, and clearances can help your business meet OSHA, European (EN), and Canadian (CSA) standards.
Starting at: $115.01

See chart below and click a model number

Product Details

  • Construction: Panels feature 10-gauge welded wire mesh construction with 1-1/4" x 2-1/2" openings. Steel angles are 14 gauge, 1-1/2" x 1-1/2". Posts are 2" x 2" 16-gauge steel tubes welded to 2" x 6" or 6" x 6" base plates.
  • Size: Doors range in width from 34" to 142". Panels range in width from 10" to 94". All are 58" high. Posts are 63" high with 24" extension posts.
  • Installation: Units bolt together for easy installation. All installation hardware is included.
  • Color: Panels are powder coated Beacon black; posts are powder coated Beacon yellow. Other colors are also available.
  • Standard: Standard doors are either single or double hinged or slide. Built-in door catch and pull handle are both standard.
  • Options: Contact Beacon for their drop and lock easy installation and removal brackets. Other Machine Guard Fencing options include locking options, polycarbonate panels, hydraulic closer, angle panel kit, and custom sizes for specific applications.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.

Documents

Options

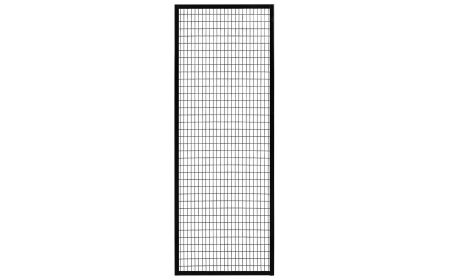

Machine Guard Fencing - Panels - BSAF Series
Model No. Width Height Mesh Gauge Finish Price
1) BSAF-1058 10" 58" 1¼"x2½" 10 Medium Gloss Black $178.08
2) BSAF-1658 16" 58" 1¼"x2½" 10 Medium Gloss Black $204.05
3) BSAF-1958 19" 58" 1¼"x2½" 10 Medium Gloss Black $215.18
4) BSAF-2258 22" 58" 1¼"x2½" 10 Medium Gloss Black $226.31
5) BSAF-2858 28" 58" 1¼"x2½" 10 Medium Gloss Black $248.57
6) BSAF-3458 34" 58" 1¼"x2½" 10 Medium Gloss Black $281.96
7) BSAF-4658 46" 58" 1¼"x2½" 10 Medium Gloss Black $326.48
8) BSAF-5858 58" 58" 1¼"x2½" 10 Medium Gloss Black $371.11
9) BSAF-7058 70" 58" 1¼"x2½" 10 Medium Gloss Black $422.94
10) BSAF-9458 94" 58" 1¼"x2½" 10 Medium Gloss Black $523.11
Machine Guard Fencing - Extension Panels - BSAF Series
Model No. Width Height Mesh Gauge Finish Price
11) BSAF-1024 10" 24" 1¼"x2½" 10 Medium Gloss Black $115.01
12) BSAF-1624 16" 24" 1¼"x2½" 10 Medium Gloss Black $129.85
13) BSAF-1924 19" 24" 1¼"x2½" 10 Medium Gloss Black $137.27
14) BSAF-2224 22" 24" 1¼"x2½" 10 Medium Gloss Black $144.69
15) BSAF-2824 28" 24" 1¼"x2½" 10 Medium Gloss Black $159.53
16) BSAF-3424 34" 24" 1¼"x2½" 10 Medium Gloss Black $178.08
17) BSAF-4624 46" 24" 1¼"x2½" 10 Medium Gloss Black $207.76
18) BSAF-5824 58" 24" 1¼"x2½" 10 Medium Gloss Black $237.44
19) BSAF-7024 70" 24" 1¼"x2½" 10 Medium Gloss Black $270.83
20) BSAF-9424 94" 24" 1¼"x2½" 10 Medium Gloss Black $337.61
Machine Guard Fencing - Transom Panels - BSAF Series
Model No. Width Height Mesh Gauge Finish Price
21) BSAF-3411 34" 11" 1¼"x2½" 10 Medium Gloss Black $181.79
22) BSAF-4611 46" 11" 1¼"x2½" 10 Medium Gloss Black $166.95
23) BSAF-5811 58" 11" 1¼"x2½" 10 Medium Gloss Black $189.21
24) BSAF-7011 70" 11" 1¼"x2½" 10 Medium Gloss Black $215.18
25) BSAF-9411 94" 11" 1¼"x2½" 10 Medium Gloss Black $270.83
Machine Guard Fencing - Doors - BSAF Series
Model No. Width Height Door Type Lock Type Finish Price
26) BSAF-H3458-PL 34" 58" Single Hinged, Swing Out Padlock Medium Gloss Black $853.30
27) BSAF-H3458-SL 34" 58" Single Hinged, Swing Out Snap Lock Medium Gloss Black $983.15
28) BSAF-H4658-PL 46" 58" Single Hinged, Swing Out Padlock Medium Gloss Black $964.60
29) BSAF-H4658-SL 46" 58" Single Hinged, Swing Out Snap Lock Medium Gloss Black $1,087.03
30) BSAF-H5858-PL 58" 58" Single Hinged, Swing Out Padlock Medium Gloss Black $1,023.96
31) BSAF-H5858-SL 58" 58" Single Hinged, Swing Out Snap Lock Medium Gloss Black $1,150.10

32) BSAF-HP7058-PL 70" 58" Pair Hinged, Swing Out Padlock Medium Gloss Black $2,188.90
33) BSAF-HP7058-SL 70" 58" Pair Hinged, Swing Out Snap Lock Medium Gloss Black $2,318.75
34) BSAF-HP9458-PL 94" 58" Pair Hinged, Swing Out Padlock Medium Gloss Black $2,381.82
35) BSAF-HP9458-SL 94" 58" Pair Hinged, Swing Out Snap Lock Medium Gloss Black $2,511.67
36) BSAF-HP11858-PL 118" 58" Pair Hinged, Swing Out Padlock Medium Gloss Black $2,515.38
37) BSAF-HP11858-SL 118" 58" Pair Hinged, Swing Out Snap Lock Medium Gloss Black $2,641.52

38) BSAF-SC4658-PL 46" 58" Single Slide Padlock Medium Gloss Black $2,893.80
39) BSAF-SC4658-SL 46" 58" Single Slide Snap Lock Medium Gloss Black $3,131.24
40) BSAF-SC7058-PL 70" 58" Single Slide Padlock Medium Gloss Black $3,402.07
41) BSAF-SC7058-SL 70" 58" Single Slide Snap Lock Medium Gloss Black $3,120.11

Machine Guard Fencing - Doors - BSAF Series (continued)
Model No. Width Height Door Type Lock Type Finish Price
42) BSAF-SPC9458-PL 94" 58" Pair Slide Padlock Medium Gloss Black $5,034.47
43) BSAF-SPC9458-SL 94" 58" Pair Slide Snap Lock Medium Gloss Black $5,208.84
44) BSAF-SPC14258-PL 142" 58" Pair Slide Padlock Medium Gloss Black $5,865.51
45) BSAF-SPC14258-SL 142" 58" Pair Slide Snap Lock Medium Gloss Black $6,047.30
Machine Guard Fencing - Posts - BSAF Series
Model No. Description Height Baseplate Finish Price
46) BSAF-P63 Universal 63" 2"x6" Safety Yellow $285.67
47) BSAF-P63-HD Heavy Duty Universal 63" 6"x6" Safety Yellow $337.61
48) BSAF-PE24 Extension 24" - Safety Yellow $222.60
49) BSAF-PE24B Extension 24" - Medium Gloss Black $222.60
OPTION
Model No. Description Finish Price
50) BSAF-CA8 Ceiling Wall Angle, 8' long Medium Gloss Black $189.21
51) BSAF-SWK Service Window Kit for through-the-door access Medium Gloss Black $972.02
CYLINDER DOOR OPTION
Model No. Description Price
52) BSAF-KA1 Keyed Alike Cylinder Only - Key Code 1 $107.59
53) BSAF-KA2 Keyed Alike Cylinder Only - Key Code 2 $107.59
54) BSAF-KA3 Keyed Alike Cylinder Only - Key Code 3 $107.59
55) BSAF-KA4 Keyed Alike Cylinder Only - Key Code 4 $107.59
DOOR OPTION
Model No. Description Finish Includes Plug-In Transformer Size (W x D x H) Price
56) BSAF-CR Easy-Read Magstripe Card Reader Kit Satin Chrome 100 Programming Shadow Cards 12V DC 1.5 amp 1⅜"x1⅜"x3½" $2,804.76
Model No. Description Finish Exterior Interior Price
57) BSAF-PB1 Narrow Piezoelectric Heavy Duty Access Illuminated Button, "Push to Open" in Red       $1,265.11
Model No. Description Price
58) BSAF-RS2 Rocker Switch, Surface Mount Maintained $263.41
59) BSAF-RS1 Rocker Switch, Surface Mount Momentary $263.41
Model No. Description Size (W x D x H) Price
60) BSAF-PROX Narrow Style RoxProx HID Reader with Essex Glob Design, Flush Mount 1¾"x¾"x4½" $2,804.76
HINGED DOOR OPTION
Model No. Description User Codes Overlay Voltage Price
61) BSAF-KP1 Heavy Duty Access Control Keypad 500 Thinline 2x6 w/ black illumination Field Selectable-5V DC or 12V DC to 24V DC $2,185.19
Model No. Description User Codes Price
62) BSAF-KEY1 Trilogy Battery-Operated Lever Handle Pushbutton 100 $3,813.88
Model No. Description Price
63) BSAF-MAG2 Magnetic Lock w/ Mounting Hardware and Brackets Included $3,698.87
64) BSAF-ES Electric Strike, Mounting Hardware Included $3,298.19
65) BSAF-HCL Hydraulic Closer, Mounting Hardware and Brackets Included $1,053.64
Model No. Description Finish Exterior Interior Price
66) BSAF-LEV1 Exterior/Interior Dead latch Lever Handle, no cylinder lock, mounting hardware included Satin Aluminum Lock Right Lock Left $463.75
67) BSAF-LEV2 Exterior/Interior Dead latch Lever Handle, no cylinder lock, mounting hardware included Satin Aluminum Lock Left Lock Right $463.75
68) BSAF-PAD2 Exterior/Interior Dead latch Paddle, Pull to Right, No Cylinder Lock, Mounting Hardware Included Clear Anodized Aluminum Swing Out, Lock Left Swing In, Lock Right $575.05
69) BSAF-PAD3 Exterior/Interior Dead latch Paddle, Push to Left, No Cylinder Lock, Mounting Hardware Included Clear Anodized Aluminum Swing In, Lock Right Swing Out, Lock Left $575.05
70) BSAF-PAD4 Exterior/Interior Dead latch Paddle, Push to Right, No Cylinder Lock, Mounting Hardware Included Clear Anodized Aluminum Swing In, Lock Left Swing Out, Lock Right $575.05
Model No. Description Exterior Interior Price
71) BSAF-PAD1 Exterior/Interior Dead latch Paddle, Pull to Left, No Cylinder Lock, Mounting Hardware Included Clear Anodized Aluminum Swing Out, Lock Right $575.05
SLIDE DOOR OPTION
Model No. Description Price
72) BSAF-MAG1 Magnetic Lock w/ Mounting Hardware Included $2,827.02
