Equipment Partition

Equipment Partition - Adjustable Barrier System - BAPG series

Beacon® BAPG Series

The Equipment Partition functions as perimeter guards to protect machinery and equipment. These Adjustable Barrier System panels may be installed at any angle ranging from 0 to 180 degrees. Posts are available as in-line or corner. The hinged door features a keyed lock for added security. Each piece is sold separately in order to custom-fit applications.
Starting at: $134.55

See chart below and click a model number

Product Details

  • Construction: Woven wire insert is 8 gauge and angle frame is 12 gauge. Square tubing features steel construction and is 2" wide x 2" deep x 1/8" thick.
  • Size: Panels are available in heights from 36" to 96" and in widths of 60" or 96". BAPG-M models are 1-1/2" thick. Posts are either 72-1/4" or 96-1/4" high and are 4" wide x 4-3/4" deep. The door is 49-15/16" wide x 60" high and 1-1/2" thick.
  • Installation: Units must be assembled and installed on-site.
  • Color: Units are powder-coated Beacon yellow for extra visibility and durability.
  • Weight: Pieces weigh from 59 to 128 lbs.
  • Standard: Each of the four post base slotted holes is 1/2" in diameter and is spaced 1" apart. Equipment Partition units are OSHA, ANSI, and EPA compliant.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.

Documents

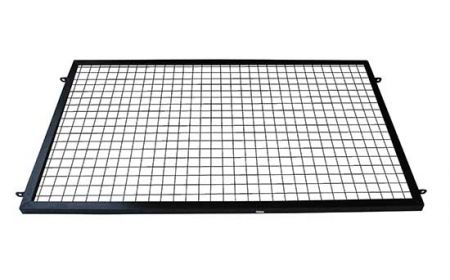

Equipment Partition - Panel - BAPG Series
Model No. Overall Size (H x W x D) Panel Angle Insert Wire Gauge Angle Frame Gauge Square Tubing (W x L x D) Number of Base Plate Holes Price
1) BAPG-M-35 36"x60"x1½" 0° to 180° 8 12 2"x2"x⅛" 4 $207.27
2) BAPG-M-38 36"x96"x1½" 0° to 180° 8 12 2"x2"x⅛" 4 $287.88
3) BAPG-M-45 48"x60"x1½" 0° to 180° 8 12 2"x2"x⅛" 4 $230.13
4) BAPG-M-48 48"x96"x1½" 0° to 180° 8 12 2"x2"x⅛" 4 $343.08
5) BAPG-M-55 60"x60"x1½" 0° to 180° 8 12 2"x2"x⅛" 4 $275.77
6) BAPG-M-58 60"x96"x1½" 0° to 180° 8 12 2"x2"x⅛" 4 $379.53
7) BAPG-M-65 72"x60"x1½" 0° to 180° 8 12 2"x2"x⅛" 4 $333.71
8) BAPG-M-85 96"x60"x1½" 0° to 180° 8 12 2"x2"x⅛" 4 $379.53
Equipment Partition - In-Line Post - BAPG Series
Model No. Overall Size (H x W x D) Price
9) BAPG-P6-L 72¼"x4"x4¾" $135.94
10) BAPG-P8-L 96¼"x4"x4¾" $145.19
Equipment Partition - Corner Post - BAPG Series
Model No. Overall Size (H x W x D) Price
11) BAPG-P6-C 72¼"x4"x4¾" $134.55
12) BAPG-P8-C 96¼"x4"x4¾" $143.91
Equipment Partition - Hinged Door with Lock - BAPG Series
Model No. Overall Size (H x W x D) Floor (Static) Capacity (LBS) Fork (Dynamic) Capacity (LBS) Racking Capacity (LBS) Price
13) BAPG-DR-54 60"x49-15/16"x1½"       $632.51
