Construction Barrier Fence

Construction Barrier Fence - BHRAIL series

Beacon® BHRAIL Series

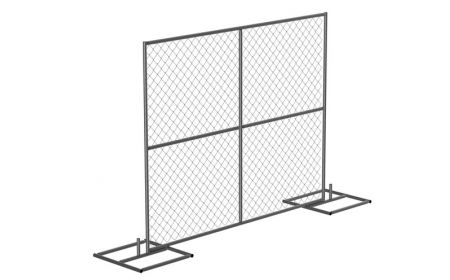

Construction Barrier Fence is designed for temporary storage sites as added security. Includes welded frame and ten (10 gauge chain link fence fastened to the barrier with steel ties. Protected with a galvanized finish for long lasting outdoor use.
Starting at: $17.99

See chart below and click a model number

Product Details

  • Construction: Each Construction Barrier Fence barrier panel section includes 1 -1/4" diameter steel tubing manufactured frame work for sturdy construction. The chain link fence opening design style is 2-3/8" x 2-3/8".
  • Projection: This unit is used to help secure a visual at jobsites from theft, dumping or trespassing.
  • Size: Each panel is 72" tall x 90" long.
  • Installation: STEP #1: Starter Unit BHRAIL-9072 includes (1) Panel and (2) Base units. STEP #2: Add on Unit, (1) Panel and (1) Base Unit for a continious connection of many units. Connection hardware sold separately. The BHRAIL-PNL is sold as a panel replacement in the event of damage.
  • Scope: Supplied for on site installation includes a base unit platform that allows to connect (2) two receiving posts and two (2) chain link panels. The supplied connectors are used for connecting (2) two chain link panels together.
  • Standard: The BHRAIL-9072 starter kit includes (1) one chain link panel with (2) two platform base unit. Each chain link panel sold separately, designed to connect to each panel unit to create a continuous run.
  • Usage: Designed for construction sites, lumber yards, nurseries, utility yards and temporary outside storage space.

Construction Barrier Fence - BHRAIL Series
Model No. Description Type Dimensions (Width x Length x Height) Material Mesh Type Chain Link Guage Chain Link Opening Panel Height Panel Width Panel Length Base Size Base (qty) Price
1) BHRAIL-9072 Galvanized Steel Construction Temporary Fence STEP #1: Starter Unit, (1) Panel & (2) Base units included), (1 Pair Connectors sold separately) 24"xWx102" Lx72" H Welded Steel Diamond 10 2⅜"x2⅜" 72" 1½" 90" 24" Wx24" L 2 $320.26
2) BHRAIL-A-9072 Galvanized Steel Construction Temporary Fence STEP #2: Add on Unit, (1) Panel & (2) Base units, (1 Pair Connectors sold separately) 24"xWx102" Lx72" H Welded Steel Diamond 10 2⅜"x2⅜" 72" 1½" 90" 24" Wx24" L 1 $255.27
Construction Barrier Fence - BHRAIL Series - Parts
Model No. Description Type Dimensions (Width x Length x Height) Material Mesh Type Chain Link Guage Chain Link Opening Panel Height Panel Width Panel Length Base Size Base (qty) Price
3) BHRAIL-PNL Galvanized Steel Construction Temporary Fence EXTRA: Add on Unit, (1) Panel only, no base, (1 Pair Connectors sold separately) 1½"xWx90" Lx72" H Welded Steel Diamond 10 2⅜"x2⅜" 72" 1½" 90"     $182.65
Model No. Description Size Price
4) BRAIL-BASE Barrier Panel Base Unit 24" Long x 24" Wide x 7" High $26.79
Model No. Description Connectors Price
5) BHRAIL-CON Hardware (1) Pair of Connectors $17.99
