Motorized Powered Tow Hitch

Motorized Powered Tow Hitch - BE-TUG series

Beacon® BE-TUG series

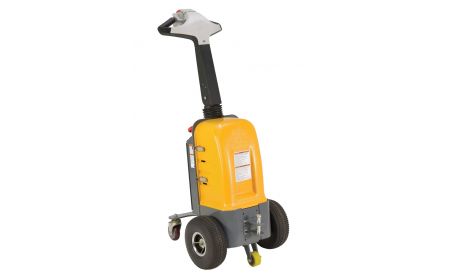

The Motorized Powered Tow Hitch is ergonomically designed to help move large loads and minimize workers fatigue. These trailer movers are utilized in medical industries, airports, factories and wholesale stores. This powered tugger can push and pull loads including applications such as pulling industrial carts, hoppers, trash cans, trailers and tow bars.
Starting at: $4,498.97

See chart below and click a model number

Product Details

  • Construction: This Motorized Powered Tow Hitch is constructed with a steel frame to be lightweight and easily maneuverable utilizing rubber tires.
  • Service Range: Forward and Reverse.
  • Electrical: Units include batteries, battery charger and battery level gauge for charge awareness.
  • Powered: This unit is powered by a high torque 24V DC drive motor to handle heavy duty jobs. Includes (2) 12V batteries, an integral battery charger and a battery level gauge.
  • Power: High torque for performance operation.
  • Color: Yellow and Black.
  • Weight: The different models have a weight range of 350 to 782 lbs.
  • Operation: Easily operates by an ergonomic handle that features a throttle with forward and reverse.
  • Capacity: These units are available in different models with 1,000, 2,000, 3,000, 5,000, 7,000 and 10,000 lbs. pull capacities.
  • Standard: Features an electromagnetic disc brake with automatic dead man safety feature.
  • Options: Motorized Powered Tow Hitch features a variety of options to ensure every task can be completed including adjustable double sided hook, single adjustable ball hitch, adjustable ball mount hitch, spring loaded manual channel lift, pin hitch & multi mover.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
  • Usage: Electric Powered Tugger.

Documents
Motorized Powered Tow Hitch - BE-TUG series
Model No. Dimensions (W x L x H) Uniform Pull Capacity (lbs.) Drive Motor Battery (Quantity / Volts) Price
1) BE-TUG-10 20.25"x31.75"x50.37" 1,000 24 V, DC / 400 W (2) 12 V / 55Ah $4,498.97
2) BE-TUG-20 26"x32"x50.5" 2,000 24 V, DC / 800 W (2) 12 V / 70Ah $5,007.73
3) BE-TUG-30 29"x32"x52" 3,000 24 V, DC / 1,200 W (2) 12 V / 70Ah $6,246.22
Motorized Powered Tow Hitch - BE-TUG-HD series
Model No. Dimensions (W x L x H) Uniform Pull Capacity (lbs.) Drive Motor Battery (Quantity / Volts) Price
4) BE-TUG-HD-30 28.5"x61.5"x46" 3,000 24 V, DC / 800 W (2) 12 V / 80Ah $5,838.33
5) BE-TUG-HD-50 30"x67.25"x47.25" 5,000 24 V, DC / 1,200 W (2) 12 V / 120 Ah $7,445.78
6) BE-TUG-HD-70 32"x69"x47.25" 7,000 24 V, DC / 1,500 W (2) 12 V / 120Ah $10,181.11
7) BE-TUG-HD-100 32"x75.5"x48.5" 10,000 24 V, DC / 2,200 W (4) 6 V / 210 Ah $12,782.14
Motorized Powered Tow Hitch - BE-TUG series - OPTION
Model No. Description Price
8) BE-TUG-ADSH Adjustable Double Side Hook $230.17
9) BE-TUG-SABH Single Adjustable Ball Hitch $226.01
10) BE-TUG-ABMH Adjustable Ball Mount Hitch $160.00
11) BE-TUG-MCLA Spring Loaded Manual Channel Lift $238.21
12) BE-TUG-PINH Pin Hitch $108.84
13) BE-TUG-MM Multi Mover $403.66
