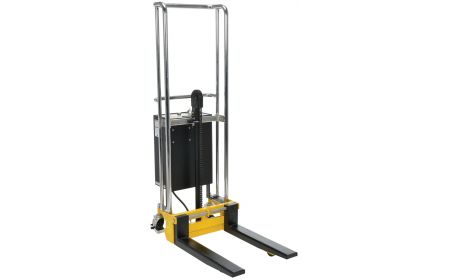

Powered Hand Lift Truck

Powered Hand Lift Truck - BHYD series

Beacon® BHYD Series

Powered Hand Lift Truck provides reliable power lifting. This unit is available with a 12 V DC battery power. Featuring forks with a removable platform. This series rolls on 2 swivel and 2 rigid polyurethane casters supplied with a foot-operated brake.
Starting at: $4,562.12

See chart below and click a model number

Product Details

  • Construction: This Powered Hand Lift Truck series features welded steel construction with chrome platform and uprights.
  • Service Range: BHYD-10-DC model is available with a service range of 3-1/2" lowered to 59" raised height and the BHYD-CB-10-DC model is available with a service range of 2-2/3" lowered to 55-1/2" raised height.
  • Overall Fork Width: This unit has an overall fork width of 22"
  • Overall Fork Length: Forks are 4-1/2" wide x 2-1/2" high. Fork lengths are the same length of the platform of 25-3/4" for maximum stability.
  • Power: The powered hand lift truck is powered by one 12 V DC battery. All units include one batter charger, battery charge indicator and emergency on and off switch.
  • Weight: This product comes in a variety of weights ranging from 330 to 566 lbs.
  • Scope: Steel construction with foot pump or Air operated.
  • Capacity: BHYD-10-DC model is available with a 880 lb. capacity and the BHYD-CB-10-DC model is available with a 500 lb. capacity.
  • Standard: All models feature two swivel rear and two rigid front poly-on-steel casters for reliable service.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
  • Usage: Designed for skids. Not for use of pallets.

Documents



Powered Hand Lift Truck with Platform - DC Powered - BHYD Series
Model No. Platform Size (W x L) Fork Size (W x L x H) Service Range Capacity (lbs.) Operation Price
1) BHYD-10-DC 22⅛"x25¾" 4½" Wx22" Lx2½" H 3½" to 59" 880 12 V dc $4,562.12
2) BHYD-CB-10-DC 22⅛"x25¾" 4½" Wx22" Lx2½" H 2¾" to 55½" 550 12 V dc $5,166.62
Powered Hand Lift Truck - DC Powered- BHYD Series - OPTION
Model No. Description Price
3) BHYDC-SPIN OPTION-Single Spindle $90.05
4) BHYDC-DSPIN OPTION-Double Spindle $143.87
5) BHYDC-VFRK OPTION-V-Shape Fork $238.24
6) BHYDC-RP OPTION-Roller Platform $580.12
7) BHYDC-BTP OPTION-Ball Transfer Platform $633.95
8) BHYDC-SSP OPTION-304 Stainless Steel Platform $380.93
9) BHYDC-VBLK OPTION-V-Block $240.78
10) BHYDC-RR OPTION-Rubber Roller $550.41
11) BHYDC-FRKHK OPTION-Fork Hook $278.60
