Hand Truck with Lift

Hand Truck with Lift - Hydraulic Lift Platform - BHYDRA series

Beacon® BHYDRA Series

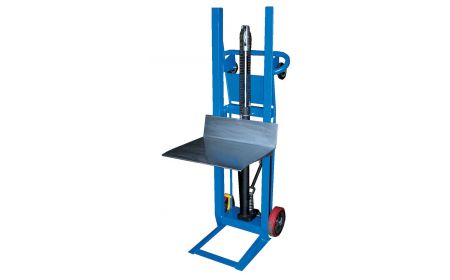

Hand Truck with Lift is designed to move loads in the lowered position and to maneuver objects without using a fork truck. This Hydraulic Lift Platform series is ideal for loading and unloading trucks and trailers. This product enables one operator to work with loads of up to 1,000 lbs. The unit has a hydraulic system activated by a foot lever.
Starting at: $1,482.09

See chart below and click a model number

Product Details

  • Construction: Features rugged steel construction.
  • Size: The unit is available with platform sizes of 20 wide x 16" long, 20" wide x 22" long, and 24" wide x 22" long.
  • Service Range: This series features service ranges of 0" to 52", 5-1/2" to 52", or 5-1/2" to 55".
  • Color: Models are Beacon blue. Optional hook and forks are Beacon yellow.
  • Weight: The series is available in weights ranging from 191 to 260 lbs.
  • Capacity: Models feature capacities of 750 or 1,000 lbs.
  • Standard: Units feature extra rollers on the handle to ease loading into a truck. Model BHYDRA-4-AF-18 features 3" x 18" forks instead of a platform.
  • Options: Hand Truck with Lift options include 3" wide x 18" long forks and hand crank winch with hook.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
  • BHYDRA-2360° View
  • BHYDRA-4360° View
  • BHYDRA-HD360° View

Documents

Options

Hand Truck with Lift - BHYDRA Series
Model No. Platform Size (W x L) Service Range Capacity (LBS) Operation Price
1) BHYDRA-2 20"x16" 0" to 52" 750 Foot Pump $1,482.09
2) BHYDRA-4 20"x22" 5½" to 52" 750 Foot Pump $1,650.31
3) BHYDRA-HD 24"x22" 5½" to 55" 1,000 Foot Pump $1,741.78
Hand Truck with Lift with 3" Wide x 18" Long Forks - BHYDRA-AF Series
Model No. Platform Size (W x L) Service Range Capacity (LBS) Operation Price
4) BHYDRA-4-AF-18 20"x22" 5½" to 52" 750 Foot Pump $2,221.03
OPTION
Model No. Description Price
5) BHDRA-AF-18 3" wide x 18" long forks $397.13
6) BHDRA-H Hand Crank Winch and Hook $239.62
