Electric Hand Truck

Name: Electric Hand Truck
Brand: Beacon
Price: 2544.32 USD
Availability: InStock

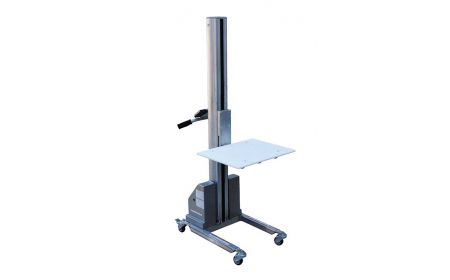

Electric Hand Truck - Box Mover - BPEL series by Beacon Industries

Beacon® BPEL Series

The Electric Hand Truck is made to move and position loads quickly. The high-density polyethylene platform makes the Box Mover unit perfect for clean room applications. These DC-powered units have a low profile design for moving in confined spaces or down narrow aisles. BPEL-88 unit feature two swivel and two locking swivel poly casters.

Starting at: $2,544.32

See chart below and click a model number

Product Details

Construction: Aluminum construction frame.
Service Range: The steel models are available with service ranges of 5-3/8" to 72".
Electrical: This unit is 24V DC battery operated. Units come standard with a 115V AC on-board charger.
Weight: Models come in various weights ranging from 205 to 560 lbs.
Operation: Units have a 9" horizontal load center.
Capacity: Models are available with capacities of 125 to 400 lbs.
Options: Electric Hand Truck options include various power options, a handheld or hand pendant control, a wireless remote control, and programmable height indexing with either 4 or 21 set points to preset multiple work heights. Custom attachments also available.

Documents

Options

Electric Hand Truck - BPEL Series
Model No.	Platform Size (W x L)	Lowered Height	Raised Height	Capacity (LBS)	Construction	Operation	Caster Size	Price
1) BPEL-88A	24"x19"	5½"	57"	175	Aluminum	24V DC Power	3"	$2,544.32
2) BPEL-100A-D3	23½"x18½"	5½"	72"	125	Aluminum	24V DC Power	3"	$4,507.45
3) BPEL-100S-D3	23½"x18½"	5⅝"	72"	125	Steel	24V DC Power	3"	$3,902.71
4) BPEL-400S-57-D3	24"x20"	6½"	57"	400	Steel	24V DC Power	4"	$6,927.85
5) BPEL-400S-57-D3-KEG	2.5"x5"	6½"	37"	400	Steel	24V DC Power	4"	$7,091.15
6) BPEL-400S-72-D3	24"x20"	6½"	72"	400	Steel	24V DC Power	4"	$6,973.36
7) BPEL-400S-72-D3-KEG	2.5"x5"	6½"	37"	400	Steel	24V DC Power	4"	$7,121.06
8) BPEL-88A-D3	23½"x18½"	5½"	57"	175	Aluminum	24V DC Power	3"	$3,858.61
9) BPEL-88S-D3	23½"x18½"	5⅝"	57"	175	Steel	24V DC Power	3"	$3,893.87
OPTION
Model No.	Description							Price
10) BPEL-2PB	Handheld Push-Button Control							$177.50
11) BPEL-CONV	Conveyor with Break Attachment .							$965.28
12) BPEL-DSPIN	Double Spindle Attachment							$205.20
13) BPEL-HOOK	Hook Arm Attachment							$120.98
14) BPEL-PAIL	Pail Dumper Attachment							$565.57
15) BPEL-RR	Reel Rotator Attachment							$614.41
16) BPEL-SPIN	Single Spindle Attachment							$145.28
17) BPEL-VBLK	V-Block Attachment							$228.40
18) BPEL-HC	Detachable Hand Pendant Control with Coil Cord							$148.08
19) BPEL-RRC	Wireless Remote Control							$1,318.78

20) BPEL-INDEX-4	Programmable Height Indexing, 4 Set points							$2,955.72
21) BPEL-INDEX-21	Programmable Height Indexing, 21 Set points							$2,955.72
