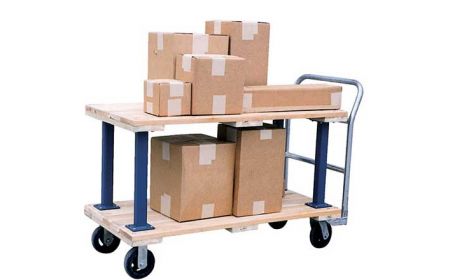

Wood Platform Cart

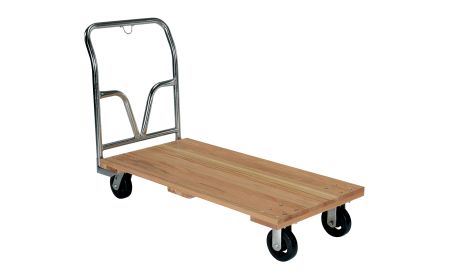

Wood Platform Cart - BVHPT/TD series by Beacon Industries

Beacon® BVHPT Series

The Wood Platform Cart is designed to minimize lifting and bending. It is ideal for office, plant, and shipping area use. Countersunk holes enable the deck to have a smooth surface. The models are available with either 1, 2, or 3 shelves.
Starting at: $420.51

See chart below and click a model number

Product Details

  • Construction: Each unit has a 1" thick hardwood platform and a steel push handle that is removable.
  • Size: Models are available with deck sizes of up to 36" x 72". The height of the single shelf is either 9-1/4" or 9-5/8". The platform height of the 2-shelf model is 9-1/2"/30". The platform height of the 3-deck unit is are 9-1/2"/30"/50".
  • Installation: Shipped knockdown.
  • Color: The posts are Beacon blue and the handle features a steel finish.
  • Weight: The single deck model weights range from 78 to 228 lbs.The 2-deck model is a type of platform truck available in a variety of weights ranging from 193 to 288 lbs. The 3-deck model is available in weights ranging from 263 to 365 lbs.
  • Operation: This series rolls on 6" x 2" mold-on-rubber casters, 2 rigid and 2 swivel.
  • Capacity: This Wood Platform Cart series has a maximum capacity of 1,600 lbs.
  • Note: The S series models have a steel frame.

Documents
Wood Platform Cart - BVHPT Series
Model No. Number of Shelves Deck Size (W x L) Capacity (LBS) Caster Size Platform Height Price
1) BVHPT-2448 1 24"x48" 1,600 6"x2" 9¼" $420.51
2) BVHPT-2754 1 27"x54" 1,600 6"x2" 9¼" $473.88
3) BVHPT-3060 1 30"x60" 1,600 6"x2" 9¼" $500.72
4) BVHPT-3672 1 36"x72" 1,600 6"x2" 9¼" $631.44

5) BVHPT/S-2448 1 24"x48" 1,600 6"x2" 9⅝" $628.69
6) BVHPT/S-2754 1 27"x54" 1,600 6"x2" 9⅝" $701.90
7) BVHPT/S-3060 1 30"x60" 1,600 6"x2" 9⅝" $765.19
8) BVHPT/S-3672 1 36"x72" 1,600 6"x2" 9⅝" $904.38

9) BVHPT/D-2448 2 24"x48" 1,600 6"x2" 9½ / 30" $708.88
10) BVHPT/D-2754 2 27"x54" 1,600 6"x2" 9½ / 30" $759.54
11) BVHPT/D-3060 2 30"x60" 1,600 6"x2" 9½ / 30" $789.05
12) BVHPT/D-3672 2 36"x72" 1,600 6"x2" 9½ / 30" $973.46

Wood Platform Cart - BVHPT Series (continued)
Model No. Number of Shelves Deck Size (W x L) Capacity (LBS) Caster Size Platform Height Price
13) BVHPT/TD-2448 3 24"x48" 1,600 6"x2" 9½ / 30" / 50" $1,007.13
14) BVHPT/TD-2754 3 27"x54" 1,600 6"x2" 9½ / 30" / 50" $1,046.55
15) BVHPT/TD-3060 3 30"x60" 1,600 6"x2" 9½ / 30" / 50" $1,071.88
16) BVHPT/TD-3672 3 36"x72" 1,600 6"x2" 9½ / 30" / 50" $1,378.45
