Welding Cart

Welding Cart - BCYL series

Beacon® BCYL Series

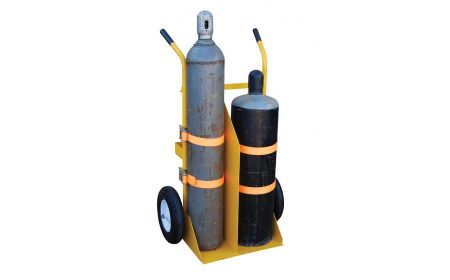

The Welding Cart secures and transport cutting torches. All models have a storage tray for convenient tool access as well as tank compartments and ratchet straps. Brackets are also included to hold the hose and cutting torch. Different models feature a lockable torch holding box, fork pockets, fire protection, and an overhead crane lifting point. Units with the overhead lift eye can be raised with a hoist. Models with fork pockets may be transported with a fork truck. All models can be manually pushed into position using their large 16" wheels to tilt and transport.
Starting at: $489.84

See chart below and click a model number

Product Details

  • Construction: These units feature welded steel construction and heavy duty handles.
  • Size: This series ranges in width from 33-1/4" to 40-1/4", in length from 23-1/16" to 34-5/8", and in height from 57-11/16" to 66-13/16".
  • Color: All units except models ending in suffix -G feature a Beacon yellow painted finish. Models with -G feature a hot-dipped galvanized finish.
  • Weight: Units weigh between 122 and 277 lbs.
  • Operation: The lifting eye is 2" maximum diameter with a 7/16" material thickness. Usable fork pocket size on BCYL-2 models is 7-1/2" wide x 2-1/2" high.
  • Capacity: Models have a 500 lb. capacity.
  • Standard: Unit is not designed for storage of gas cylinders. Lockable storage box on BCYL-2 models features a hole to eliminate the need for disconnecting regulator for storage.
  • Options: Welding Cart models are available with pneumatic or foam-filled wheels and with or without cutting torch box, overhead lift eye, fork pockets, or fire protection.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
  • Note: This meets OSHA standard 1910.253 and 1926.350.

Documents
Welding Cart - BCYL Series
Model No. Wheel Type Cutting Torch Box Overhead Lift Eye Fork Pockets Overall Size (W x L x H) Fire Protection Capacity (LBS) Price
1) BCYL-E Pneumatic No No No 33¼"x23-1/16"x57-11/16" No 500 $489.84
2) BCYL-E-FF Foam-Filled No No No 35½"x23-1/16"x57-11/16" No 500 $527.63

3) BCYL-EH Pneumatic No Yes No 33¼"x23-1/16"x66½" No 500 $712.03
4) BCYL-EH-FF Foam-Filled No Yes No 35½"x23-1/16"x66½" No 500 $736.30

5) BCYL-EH-FP Pneumatic No Yes No 33¼"x23"x66-13/16" Yes 500 $978.58
6) BCYL-EH-FP-FF Foam-Filled No Yes No 35½"x23-1/16"x66½" Yes 500 $1,039.09

Welding Cart - BCYL Series (continued)
Model No. Wheel Type Cutting Torch Box Overhead Lift Eye Fork Pockets Overall Size (W x L x H) Fire Protection Capacity (LBS) Price
7) BCYL-2 Pneumatic Yes Yes Yes 40¼"x34-9/16"x66⅜" No 500 $989.31
8) BCYL-2-FF Foam-Filled Yes Yes Yes 40¼"x34⅝"x66⅜" No 500 $1,036.49

9) BCYL-2-FP Pneumatic Yes Yes Yes 40¼"x34-9/16"x66⅜" Yes 500 $1,253.19
10) BCYL-2-FP-FF Foam-Filled Yes Yes Yes 40¼"x34⅝"x66⅜" Yes 500 $1,329.98
Welding Carts - Galvanized Finish - BCYL-G Series
Model No. Wheel Type Cutting Torch Box Overhead Lift Eye Fork Pockets Overall Size (W x L x H) Fire Protection Capacity (LBS) Price
11) BCYL-2-G Pneumatic Yes Yes Yes 40¼"x34-9/16"x66⅜" No 500 $1,297.55
12) BCYL-2-FF-G Foam-Filled Yes Yes Yes 40¼"x34⅝"x66⅜" No 500 $1,277.37

WarningPROP 65 WARNING

For California Residents: www.P65Warnings.ca.gov
Products on this page may lead to cancer or reproductive harm.


Complementary Products: For welding carts specifically designed for the loading, unloading and transport of truck batteries, please see Beacon battery transfer carts.
