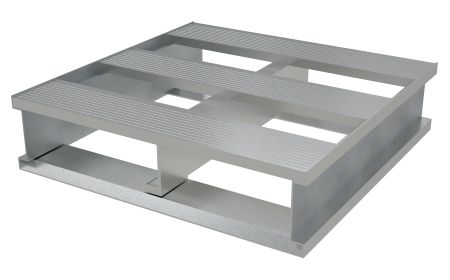

Aluminum Pallet

Aluminum Pallet - BAP series

Beacon® BAP Series

The Aluminum Pallet is ideal for the food and chemical industry. This series is easy to clean with power washers. Units are durable and reusable, able to withstand high power steam, brushes, or pads. Fork openings make this unit conveniently mobile for two-way fork truck transport.
Starting at: $242.28

See chart below and click a model number

Product Details

  • Construction: This series features heavy-duty welded aluminum construction for longevity and high resistance against rust.
  • Size: Models are available in sizes of 24" up to 48" wide x 24" up to 48" long x 5" up to 6" high. Top boards are 4-3/4" wide.
  • Overall Fork Width: Fork openings range from 8-5/16" x 4-3/8" , 16-3/8" x 4-3/8", 19-9/16" x 3-1/2", 22-5/16" x 4-5/16", or 22-3/8" x 4-3/8" or .
  • Weight: 12 to 89 lbs.
  • Capacity: 6,000 lbs. of uniform supported capacity, 4,000 lbs. dynamic capacity, and 6,000 lbs. racking capacity.
  • Standard: A non-skid surface for transportation of all products is standard on the Aluminum Pallet.
  • Note: Testing, adjustments, training and scheduled maintenance procedures by others.

Documents



Aluminum Half Pallet - BAP Series
Model No. Overall Size (W X D X H) Floor (Static) Capacity (LBS) Fork (Dynamic) Capacity (LBS) Racking Capacity (LBS) Fork Opening (W X H) Price
1) BAP-2424 24"x 24"x 6" 4,000 4,000 4,000 22⅜" x 4⅜" $242.28
2) BAP-3624 36"x 24"x 6" 4,000 4,000 4,000 8-5/16" x 4-5/16" $309.46
3) BAP-4024 40"x 24"x 6" 4,000 4,000 4,000 16⅜" x 4⅜" $323.01
4) BAP-4824 48"x 24"x 6" 4,000 4,000 4,000 22⅜" x 4⅜" $345.66
Aluminum Pallet - BAP Series
Model No. Overall Size (W X D X H) Floor (Static) Capacity (LBS) Fork (Dynamic) Capacity (LBS) Racking Capacity (LBS) Fork Opening (W X H) Price
5) BAP-4048 40⅛"x 48"x 6" 6,000 4,000 6,000 18-5/16" x 4-5/16" $547.70
6) BAP-4248 42⅛"x 48"x 6" 6,000 4,000 6,000 19-5/16" x 4-5/16" $537.11
7) BAP-4848 48⅛"x 48"x 6" 6,000 4,000 6,000 22-5/16" x 4-5/16" $565.35

8) BAP-4048-SB 40"x 48"x 5" 6,000 4,000 4,000 19-9/16" x 3½" $632.54
9) BAP-4248-SB 42"x 48"x 5" 6,000 4,000 4,000 19-9/16" x 3½" $646.15
10) BAP-4848-SB 48"x 48"x 5" 6,000 4,000 4,000 19-9/16" x 3½" $699.97


Complementary Products: For equipment that both transports and rotates pallets, please see Beacon pallet cart & carousels.
