Industrial Trash Can Dumper
Industrial Trash Can Dumper
Beacon
®
BTCD-U Series

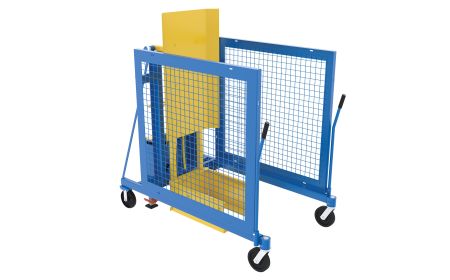

The transportable Industrial Trash Can Dumper allows one person to quickly dump heavy trash cans with ease. Units feature two rigid and two swivel 8" x 2" casters for portability. The square-shaped chute with arms can hold most trash cans in place for dumping. This unit is available with AC or DC power. The Industrial Trash Can Dumper handles different shape and size containers.
Starting at:
$
6,378.19
See chart below and click a model number
Product Details
Construction:
Industrial Trash Can Dumpers features long-lasting, heavy-duty steel construction.
Size:
Units range from 46-1/16" x 75-5/8" x 64-3/4", 46-1/16" x 87-5/8" x 90-1/16", to 45-1/4" x 75-5/8" x 64-1/16", 46-1/16" x 87-5/8" x 89-3/8".
Dump Heights:
Units have maximum dump heights of 48", up tor 72-3/8" and maximum dump angles of 135 degrees. The overall rotated heights are 113-13/16" to 160-15/16" and the maximum rotated angle is 45 degrees.
Overall Width:
The chute is 37" wide x 35-13/16" deep.
Powered:
110V AC power or 12V DC power.
Color:
Models feature a Beacon yellow chute and a Beacon blue frame. Trash cans are available in Beacon blue, green, or grey.
Weight:
Units weigh between 671 and 1,099 lbs.
Operation:
This is a universal unit capable of accepting any trash can (even round or oddly shaped cans) as long as they are within 17-1/2" to 34-3/4" wide, 20-1/2" to 35-7/8" long, and 22" to 50" high. It works will all options listed below.
Capacity:
All models feature a 400-lb. uniform capacity.
Standard:
DC-powered units feature an on-board battery charger. All units feature 2 adjustable floor locks for added safety while dumping.
Options:
Industrial Trash Can Dumper options include a remote battery charger, a battery charge indicator gauge, and heavy duty polyethylene trash cans in various sizes, volumes, and colors. BTH trash cans have a hinged lid.
Note:
This unit ships fully assembled and ready to use.
Documents
Prop. 65 WARNING
Industrial Trash Can Dumper - BTCD-U Series
Model No.
Operation
Max. Dump Angle (degrees)
Max. Dump Height
Overall Rotated Height
Max. Rotated Angle (degrees)
Overall Size (W x L x H)
Capacity (LBS)
Price
1)
BTCD-M-48-AC
AC
135
48-11/16"
113-13/16"
45
45¼"x75⅝"x64-11/16"
400
$6,604.43
2)
BTCD-M-48-DC
DC
135
48-11/16"
113-13/16"
45
45¼"x75⅝"x64-11/16"
400
$6,604.43
3)
BTCD-U-48-AC
AC
135
48"
119⅜"
45
46-1/16"x75⅝"x64¾"
400
$6,378.19
4)
BTCD-U-48-DC
DC
135
48¼"
119⅜"
45
46-1/16"x75⅝"x64-15/16"
400
$6,811.75
5)
BTCD-M-60-AC
AC
135
60⅜"
134-11/16"
45
45¼"x75⅝"x77⅜"
400
$6,996.01
6)
BTCD-M-60-DC
DC
135
60⅜"
134-11/16"
45
45¼"x75⅝"x77⅜"
400
$6,996.01
7)
BTCD-U-60-AC
AC
135
59-15/16"
140¼"
45
46-1/16"x75⅝"x78⅛"
400
$7,228.33
8)
BTCD-U-60-DC
DC
135
59-13/16"
140¼
45
46-1/16"x75⅝"x78⅛"
400
$7,212.09
9)
BTCD-M-72-AC
AC
135
72⅜"
155-5/16"
45
45¼"x87⅝"x89⅜"
400
$7,196.72
10)
BTCD-M-72-DC
DC
135
72⅜"
155⅛"
45
45¼"x87⅝"x89⅜"
400
$7,196.72
11)
BTCD-U-72-AC
AC
135
71-15/16"
160-15/16"
45
46-1/16"x87⅝"x90-1/16"
400
$7,385.63
12)
BTCD-U-72-DC
DC
135
71-15/16"
160-15-16"
45
46-1/16"x87⅝"x90-1/16"
400
$7,411.40
OPTION
Model No.
Description
Price
13)
BBC
OPTION Remote Battery Charger
$209.33
OPTION - Trash Can
Model No.
Volume (Gallons)
Color
Overall Size (W x D x H)
Wheel Type & Size
Price
14)
BTH-32-BLU
32
Blue
22"x22"x37"
7¾"x1" Rubber
$151.38
15)
BTH-32-GRN
32
Green
22"x22"x37"
7¾"x1" Rubber
$151.38
16)
BTH-32-GY
32
Grey
22"x22"x37"
7¾"x1" Rubber
$151.38
OPTION - Trash Can (continued)
Model No.
Volume (Gallons)
Color
Overall Size (W x D x H)
Wheel Type & Size
Price
17)
BTH-64-BLU
64
Blue
23½"x29¼"x39¾"
7¾"x1" Rubber
$284.20
18)
BTH-64-GRN
64
Green
23½"x29¼"x39¾"
7¾"x1" Rubber
$284.20
19)
BTH-64-GY
64
Grey
23½"x29¼"x39¾"
7¾"x1" Rubber
$284.20
20)
BTH-95-BLU
95
Blue
28¼"x34"x44½"
7¾"x1" Rubber
$356.68
21)
BTH-95-GRN
95
Green
28¼"x34"x44½"
7¾"x1" Rubber
$356.68
22)
BTH-95-GY
95
Grey
28¼"x34"x44½"
7¾"x1" Rubber
$356.68
PROP 65 WARNING
For California Residents:
www.P65Warnings.ca.gov
Products on this page may lead to cancer or reproductive harm.
