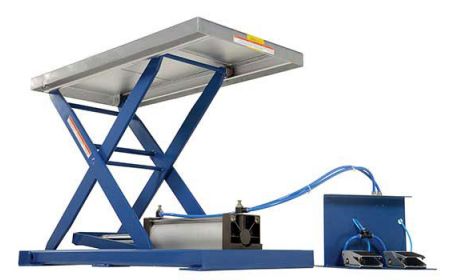

Pneumatic Scissor Lift

Pneumatic Scissor Lift - Pneumatic Work Table - BAT Series

Beacon® BAT-10 Series

The factory Pneumatic Scissor Lift can be used anywhere and is powered by air. This Pneumatic Work Table can be used in many clean room applications. No electricity or hydraulic oil is required; the air actuator valve is included. This series features a service range from 11-1/4 inches lowered to 29-1/2 inches raised.
Starting at: $2,038.05

See chart below and click a model number

Product Details

  • Size: Pneumatic Work Table has a platform size 19-1/2" wide and 39-1/2" long.
  • Electrical: No electrical power required.
  • Power: Utilizes shop air only. Air by others.
  • Weight: This series weighs 229 lbs.
  • Capacity: The unit has a lifting capacity of 200 lbs.
  • Limited Warranty: To keep the Pneumatic Scissor Lift warranty valid, you cannot cantilever the geometric ratio weight beyond the center of gravity. All units are quoted the capacity within its deck size.
  • Note: Testing, adjustments, training and scheduled maintenance procedures by others.

Documents



Pneumatic Scissor Lift - BAT-10 Series
Model No. Capacity (LBS) Platform Size (W x L) Service Range Foot Control Height Price
1) BAT-10 200 19½"x39½" 11¼" to 29½" 10" $2,038.05
