Air Lift Table

Name: Air Lift Table
Brand: Beacon
Price: 5921.73 USD
Availability: InStock

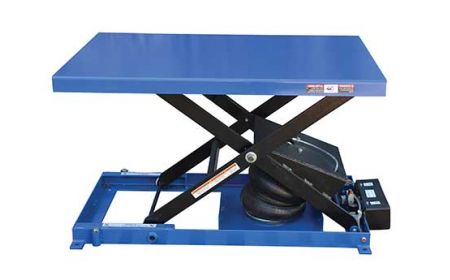

Air Lift Table - Pneumatic Lift Table - BABLT Series

Beacon® BABLT Series

The reliable Air Lift Table is a clean, maintenance free option for lifting products. These Pneumatic Lift Table units are designed to raise products to your required height using clean, filtered air for operation. This is a great ergonomic solution for any work environment that wishes to reduce worker fatigue and risk of injury. Units are also well suited for use in clean rooms where hydraulics are not an option.

Starting at: $5,921.73

See chart below and click a model number

Product Details

Construction: Air Lift Table is a low-profile unit constructed of heavy-duty steel.
Size: Units have a platform width ranging from 35-1/5" to 48" and a length from 32" to 43-3/4".
Service Range: Lowered heights range from 7" to 9" and raised heights from 32" to 33".
Installation: Surface or pit mount will end up with different overall heights. The three vertical geometric properties to be aware of is the (1) Lowered height (2) Travel (3) Overall height. When mounting in a pit, your travel will end up as your overall height.
Color: Units have a Beacon blue finish. Custom finishes are available.
Weight: 270 to 590 lbs.
Operation: Units are operated by factory air and controlled by a push button hand control. BABLT series requires a minimum of 80 psi to operate minimum .5" airline. BABLT-H requires 80 to 100 psi at 15 CFM's. BABLT-H-LP needs 60 to 120 psi and minimum .5" airline.
Capacity: 1,000 lbs. to 4,000 lbs.
Standard: Models come standard with an adjustable upper travel time valve, lifetime-lubricated bearings, and a maintenance prop.
Options: Many options are available for the Air Lift Table, including custom finishes, foot controls, safety skirts, larger platforms, rotations, detent kits, fork pockets, and various lift options. Contact Beacon with your specific needs.
Limited Warranty: Warranty is void if not used with a filter regulator. To keep warranty valid you cannot cantilever the geometric ratio weight beyond the center of gravity. All units are quoted the capacity within its deck size. Extended warranties available.
Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
Note: Testing, adjustments, training and scheduled maintenance procedures by others.

Documents

Options

Air Lift Table - BABLT Series
Model No.	Platform Size (Width x Length)	Capacity (LBS)	Raised Height	Lowered Height	Color	Price
1) BABLT-1000	48" x 32"	1,000	33"	9"	Blue	$5,921.73
2) BABLT-2000	48" x 32"	2,000	33"	9"	Blue	$6,032.28
Air Lift Table - BABLT-H Series
Model No.	Platform Size (Width x Length)	Capacity (LBS)	Raised Height	Lowered Height	Color	Price
3) BABLT-H-1-32	35-1/5" x 43¾"	1,000	32"	7"	Orange	Call for Quote
4) BABLT-H-2-32	35-1/5" x 43¾"	2,000	32"	7"	Orange	Call for Quote
5) BABLT-H-3-32	35-1/5" x 43¾"	3,000	32"	7"	Orange	Call for Quote
6) BABLT-H-4-32	35-1/5" x 43¾"	4,000	32"	7"	Orange	Call for Quote
OPTION
Model No.	Description				For Use With	Price
7) BABLT-FC-2P	Foot Pedal Control				BABLT-4000	$538.48
8) BABLT-H-FC	Foot Pedal Control				BABLT-H and BABLT-H-LP series	Call for Quote

9) BABLT-H-RP-ND	Manual Rotate, no detents				BABLT-H-P-4848-4K	Call for Quote
10) BABLT-H-RP-SD	Manual Rotate, spring detents				BABLT-H-P-4848-4K	Call for Quote
11) BABLT-H-FP	Fork Pockets, bolt on style, adds 4" to height				BABLT-H and BABLT-H-LP series	Call for Quote
Model No.	Description			For Use With	Platform Size (W x L x T)	Price
12) BABLT-H-P-3648	Bolt-on Platform			BABLT-H series, 1,000-3,000 lbs.	36"x48"x¼"	Call for Quote
13) BABLT-H-P-4848	Bolt-on Platform			BABLT-H series, 1,000-3,000 lbs.	48"x48"x¼"	Call for Quote
14) BABLT-H-P-4848-4K	Bolt-on Platform			BABLT-H series, 4,000 lbs.	48"x48"x½"	Call for Quote
