Industrial Ramps
Vault Ramps
Vault Ramps
Beacon
®
HVR Series
Beacon
®

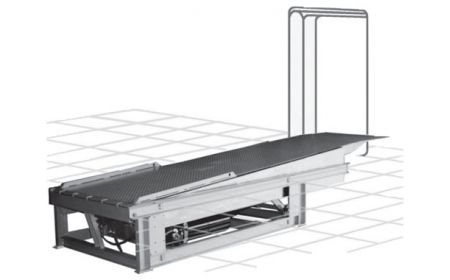

Vault Ramps are designed to adjust and compensate for uneven height differences between the exterior floor at the vault door opening and the interior floor at the door opening. Push button control allows for the operator to extend the deck lip of these Floor Hydraulic Ramps quickly for loading and unloading procedures.
Starting at:
$
159,021.20
See chart below and click a model number
Product Details
Construction:
Heavy duty steel construction with diamond treadplate.
Size:
Starting at sizes of 44" wide x 113.5" long.
Operating Range:
Vertical Up Travel: 16", Horizontal Travel: 44".
Electrical:
1 Hp motor, 208/230/440 V AC, 3 Phase, 60 Hz is standard. Vault Ramps also have other electrical options available.
Installation:
Pit mounted for smooth cart mobility.
Operation:
One hydraulic cylinder controls the vertical deck movement and a hydraulic cylinder controls the slide deck lip.
Capacities:
Dynamic rated; 4,000 lbs.
Standard:
The Vault Ramps have a 44"-Continuous slide deck lip, full range stainless steel toe guards. Stay in place concrete forms with all curb steel.
Limited Warranty:
One-year structural, hydraulics and electrical.
Surcharge:
Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
Note:
Testing, adjustments, training and scheduled maintenance procedures by others.
Documents
HVR-Tech-Sheet
Electrical-Voltage-International
NEMA-Enclosure-Types
Prop. 65 WARNING
Vault Ramps - HVR Series
Model No.
Description
Overall Width
Overall Length
Height
Capacity
Color
Price
1)
HVR-37-114-4
Hydraulic - Four movement 44" slide deck. 44" Wide x 19.5" Tall x 113.5" Long. 1 hp 208/230 V 3 Ph. 60 Hz. Unit supplied with stay in place concrete forms.
44"
113.5"
20"
4000 lbs
Stainless Steel & Grey
$159,021.20
PROP 65 WARNING
For California Residents:
www.P65Warnings.ca.gov
Products on this page may lead to cancer or reproductive harm.
