Homepage
Industrial Ramps
Ramps
Trailer Ramp

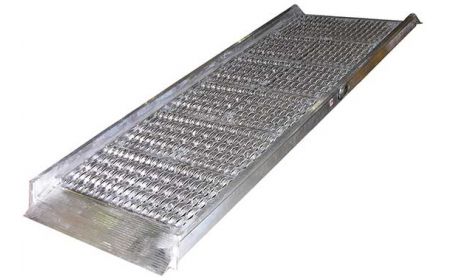

Trailer Ramp
Beacon
®
BAWR-G Series
The Trailer Ramp is highly efficient for truck loading/unloading when an open dock is not available. These Portable Ramps are ideal for loading dock areas that often reach overflow capacity as well as for businesses that don't have a loading dock. This series provides excellent traction due to its open deck design, which allows water, snow, and ice to fall through to the ground instead of collecting on the ramp surface. Each side of the unit features a 2"-high safety curb. Each model features 2 safety chains to connect the unit to the trailer. It also has an overlap lip that rests on the trailer bed, allowing smooth transition.
Starting at:
$
888.58
See chart below and click a model number
Product Details
Construction:
This series is constructed of welded, lightweight aluminum that will not rust.
Service Range:
Models come in various heights ranges from 6" to 21" up to 6" to 62"
Overall Length:
Models are available in various lengths ranging from 6' to 16'.
Installation:
Units are connected to trailer with two safety chains. Carts and adjustable wheel options feature simple bolt-on installation.
Weight:
Units come in various weights ranging from 43 to 88 lbs.
Operation:
The overlap lip provides a smooth transition over the edge of the trailer.
Capacity:
Capacity with 2-wheel carts ranges from 1,000 to 2,000 lbs. Capacity with 4-wheel cart ranges from 1,000 up to 2,800.
Options:
Trailer Ramp options include adjustable height wheels and carts. Carts are operated by pulling the handle to a vertical position in order to lock wheels down. By pushing the handle up, the user can unlock and lift wheels to service low trailers.
Surcharge:
Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
Note:
These units are not for use with either 3-wheel carts or pallet trucks.
Documents
Prop. 65 WARNING
Options
Trailer Ramp - BAWR-G Series
Model No.
Height Range
Length
4-Wheel Cart Capacity (LBS)
2-Wheel Cart Capacity (LBS)
Overall / Usable Width
Price
1)
BAWR-G-28-6A
6"-21"
6'
2800
2000
28" / 26"
$888.58
2)
BAWR-G-28-7A
6"-25"
7'
2800
1800
28" / 26"
$976.69
3)
BAWR-G-28-8A
6"-29"
8'
2500
1650
28" / 26"
$1,075.78
4)
BAWR-G-28-9A
6"-33"
9'
2500
1600
28" / 26"
$1,162.75
5)
BAWR-G-28-10A
6"-38"
10'
2200
1500
28" / 26"
$1,295.69
6)
BAWR-G-28-12A
6"-46"
12'
1900
1400
28" / 26"
$1,488.21
7)
BAWR-G-28-14A
6"-54"
14'
1600
1200
28" / 26"
$1,693.15
8)
BAWR-G-28-16A
6"-62"
16'
1000
1000
28" / 26"
$1,861.39
9)
BAWR-G-38-6A
6"-21"
6'
2800
2000
38" / 36"
$1,105.72
10)
BAWR-G-38-7A
6"-25"
7'
2800
1800
38" / 36"
$1,241.44
11)
BAWR-G-38-8A
6"-29"
8'
2500
1650
38" / 36"
$1,339.03
12)
BAWR-G-38-9A
6"-33"
9'
2500
1600
38" / 36"
$1,444.90
Trailer Ramp - BAWR-G Series (continued)
Model No.
Height Range
Length
4-Wheel Cart Capacity (LBS)
2-Wheel Cart Capacity (LBS)
Overall / Usable Width
Price
13)
BAWR-G-38-10A
6"-38"
10'
2200
1500
38" / 36"
$1,592.80
14)
BAWR-G-38-12A
6"-46"
12'
1900
1400
38" / 36"
$1,843.73
15)
BAWR-G-38-14A
6"-54"
14'
1600
1200
38" / 36"
$2,092.13
16)
BAWR-G-38-16A
6"-62"
16'
1000
1000
38" / 36"
$2,303.75
OPTION
Model No.
Description
Operation
Wheel Size and Type
Minimum Service Height
Use With
Price
17)
BAWR-R-CART-28
Optional Cart for 28" models
Pull/Push Handle
10"x2½" Hard Rubber
14"
BAWR-G-28 series
$256.33
18)
BAWR-R-CART-38
Optional Cart for 38" models
Pull/Push Handle
10"x2½" Hard Rubber
14"
BAWR-G-38 series
$310.65
PROP 65 WARNING
For California Residents:
www.P65Warnings.ca.gov
Products on this page may lead to cancer or reproductive harm.
