Aluminum Ramp

Aluminum Ramp - Easy Access Ramps - BAWR series

Beacon® BAWR Series

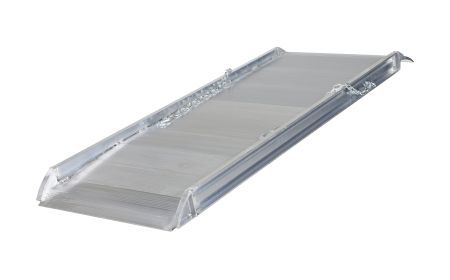

The Aluminum Ramp enables delivery personnel, shippers, and receivers to load and unload trucks when loading docks are unavailable. These Easy Access Ramps feature a 1-1/2" high safety curb on each side. These models are equipped with steel safety chains with steel grab hooks that can be attached to each side for securing the unit to the truck safely.
Starting at: $533.07

See chart below and click a model number

Product Details

  • Construction: Models are lightweight, constructed of strong aluminum alloy with non-skid tread surface.
  • Size: Height ranges are from 6" to 13" up to 6" to 64".
  • Overall Width: Unit widths are 28" with 26" usable or 38" with 36" usable.
  • Overall Length: Lengths available range from 4' to 16'.
  • Weight: Net weight varies, depending upon size, between 76 and 416 lbs.
  • Capacities: Capacities with 4-wheel carts range from 1,000 to 3,000 lbs. Capacities with 2-wheel carts range from 1,000 to 2,200 lbs.
  • Standard: The substructure includes ribs for strength and grooved deck for positive all-weather traction. Type -A includes an overlap lip. Type -B includes steel grab hooks. Models with -WH include the wheel height adjustment option standard.
  • Options: Ramp carts are available upon request for easy ramp positioning.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.

Documents
Aluminum Ramp - BAWR Series
Model No. Type Height Range Length Overall / Usable Width 4-Wheel Cart Capacity (LBS) 2-Wheel Cart Capacity (LBS) Handrail Included Price
1) BAWR-28-4A Overlap 6" to 13" 4' 28" / 26" 3,000 2,200 No $582.70
2) BAWR-28-6A Overlap 6" to 21" 6' 28" / 26" 2,800 2,000 No $708.05
3) BAWR-28-6A-HR Overlap 6" to 21" 6' 28" / 26" 2,800 2,000 Yes $1,369.02
4) BAWR-28-7A Overlap 6" to 25" 7' 28" / 26" 2,800 1,800 No $805.84
5) BAWR-28-7A-HR Overlap 6" to 25" 7' 28" / 26" 2,800 1,800 Yes $1,514.34
6) BAWR-28-8A Overlap 6" to 29" 8' 28" / 26" 2,500 1,650 No $887.32
7) BAWR-28-8A-HR Overlap 6" to 29" 8' 28" / 26" 2,500 1,650 Yes $1,642.18
8) BAWR-28-9A Overlap 6" to 33" 9' 28" / 26" 2,500 1,600 No $998.50
9) BAWR-28-9A-HR Overlap 6" to 33" 9' 28" / 26" 2,500 1,600 Yes $1,760.65
10) BAWR-28-10A Overlap 6" to 38" 10' 28" / 26" 2,200 1,500 No $1,055.52
11) BAWR-28-10A-HR Overlap 6" to 38" 10' 28" / 26" 2,200 1,500 Yes $1,876.44
12) BAWR-28-12A Overlap 6" to 46" 12' 28" / 26" 1,900 1,400 No $1,248.17
13) BAWR-28-12A-HR Overlap 6" to 46" 12' 28" / 26" 1,900 1,400 Yes $2,537.48
14) BAWR-28-14A Overlap 6" to 54" 14' 28" / 26" 1,600 1,200 No $1,412.35
15) BAWR-28-14A-HR Overlap 6" to 54" 14' 28" / 26" 1,600 1,200 Yes $2,760.96
16) BAWR-28-16A Overlap 6" to 62" 16' 28" / 26" 1,000 1,000 No $1,592.83
17) BAWR-28-16A-HR Overlap 6" to 62" 16' 28" / 26" 1,000 1,000 Yes $3,009.98

18) BAWR-38-4A Overlap 6" to 13" 4' 38" / 36" 3,000 2,200 No $757.87
19) BAWR-38-6A Overlap 6" to 21" 6' 38" / 36" 2,800 2,000 No $917.14
20) BAWR-38-6A-HR Overlap 6" to 21" 6' 38" / 36" 2,800 2,000 Yes $1,577.54
21) BAWR-38-7A Overlap 6" to 25" 7' 38" / 36" 2,800 1,800 No $986.34
22) BAWR-38-7A-HR Overlap 6" to 25" 7' 38" / 36" 2,800 1,800 Yes $1,718.92
23) BAWR-38-8A Overlap 6" to 29" 8' 38" / 36" 2,500 1,650 No $1,069.10
24) BAWR-38-8A-HR Overlap 6" to 29" 8' 38" / 36" 2,500 1,650 Yes $1,844.16
25) BAWR-38-9A Overlap 6" to 33" 9' 38" / 36" 2,500 1,600 No $1,150.54
26) BAWR-38-9A-HR Overlap 6" to 33" 9' 38" / 36" 2,500 1,600 Yes $1,962.68
27) BAWR-38-10A Overlap 6" to 38" 10' 38" / 36" 2,200 1,500 No $1,328.23
28) BAWR-38-10A-HR Overlap 6" to 38" 10' 38" / 36" 2,200 1,500 Yes $2,173.91
29) BAWR-38-12A Overlap 6" to 46" 12' 38" / 36" 1,900 1,400 No $1,572.33
30) BAWR-38-12A-HR Overlap 6" to 46" 12' 38" / 36" 1,900 1,400 Yes $2,814.78
31) BAWR-38-14A Overlap 6" to 54" 14' 38" / 36" 1,600 1,200 No $1,760.99
32) BAWR-38-14A-HR Overlap 6" to 54" 14' 38" / 36" 1,600 1,200 Yes $3,149.96
33) BAWR-38-16A Overlap 6" to 62" 16' 38" / 36" 1,000 1,000 No $1,918.49
34) BAWR-38-16A-HR Overlap 6" to 62" 16' 38" / 36" 1,000 1,000 Yes $3,390.98

35) BAWR-28-4B Steel Hooks 6" to 15" 4' 28" / 26" 3,000 2,200 No $533.07
36) BAWR-28-6B Steel Hooks 6" to 23" 6' 28" / 26" 2,800 2,000 No $690.58
37) BAWR-28-6B-HR Steel Hooks 6" to 23" 6' 28" / 26" 2,800 2,000 Yes $1,329.99
38) BAWR-28-7B Steel Hooks 6" to 27" 7' 28" / 26" 2,800 1,800 No $767.75
39) BAWR-28-7B-HR Steel Hooks 6" to 27" 7' 28" / 26" 2,800 1,800 Yes $1,476.61
40) BAWR-28-8B Steel Hooks 6" to 31" 8' 28" / 26" 2,500 1,650 No $864.21
41) BAWR-28-8B-HR Steel Hooks 6" to 31" 8' 28" / 26" 2,500 1,650 Yes $1,615.25
42) BAWR-28-9B Steel Hooks 6" to 35" 9' 28" / 26" 2,500 1,600 No $910.29
43) BAWR-28-9B-HR Steel Hooks 6" to 35" 9' 28" / 26" 2,500 1,600 Yes $1,700.12
44) BAWR-28-10B Steel Hooks 6" to 40" 10' 28" / 26" 2,200 1,500 No $998.48
45) BAWR-28-10B-HR Steel Hooks 6" to 40" 10' 28" / 26" 2,200 1,500 Yes $1,815.84
46) BAWR-28-12B Steel Hooks 6" to 48" 12' 28" / 26" 1,900 1,400 No $1,223.73
47) BAWR-28-12B-HR Steel Hooks 6" to 48" 12' 28" / 26" 1,900 1,400 Yes $2,513.15
48) BAWR-28-14B Steel Hooks 6" to 56" 14' 28" / 26" 1,600 1,200 No $1,325.47
49) BAWR-28-14B-HR Steel Hooks 6" to 56" 14' 28" / 26" 1,600 1,200 Yes $2,669.38
50) BAWR-28-16B Steel Hooks 6" to 64" 16' 28" / 26" 1,000 1,000 No $1,526.26
51) BAWR-28-16B-HR Steel Hooks 6" to 64" 16' 28" / 26" 1,000 1,000 Yes $2,943.98

Aluminum Ramp - BAWR Series (continued)
Model No. Type Height Range Length Overall / Usable Width 4-Wheel Cart Capacity (LBS) 2-Wheel Cart Capacity (LBS) Handrail Included Price
52) BAWR-38-4B Steel Hooks 6" to 15" 4' 38" / 36" 3,000 2,200 No $708.02
53) BAWR-38-6B Steel Hooks 6" to 23" 6' 38" / 36" 2,800 2,000 No $907.60
54) BAWR-38-6B-HR Steel Hooks 6" to 23" 6' 38" / 36" 2,800 2,000 Yes $1,515.74
55) BAWR-38-7B Steel Hooks 6" to 27" 7' 38" / 36" 2,800 1,800 No $971.37
56) BAWR-38-7B-HR Steel Hooks 6" to 27" 7' 38" / 36" 2,800 1,800 Yes $1,701.41
57) BAWR-38-8B Steel Hooks 6" to 31" 8' 38" / 36" 2,500 1,650 No $1,115.14
58) BAWR-38-8B-HR Steel Hooks 6" to 31" 8' 38" / 36" 2,500 1,650 Yes $1,809.10
59) BAWR-38-9B Steel Hooks 6" to 35" 9' 38" / 36" 2,500 1,600 No $1,155.94
60) BAWR-38-9B-HR Steel Hooks 6" to 35" 9' 38" / 36" 2,500 1,600 Yes $1,938.42
61) BAWR-38-10B Steel Hooks 6" to 40" 10' 38" / 36" 2,200 1,500 No $1,290.26
62) BAWR-38-10B-HR Steel Hooks 6" to 40" 10' 38" / 36" 2,200 1,500 Yes $2,134.90
63) BAWR-38-12B Steel Hooks 6" to 48" 12' 38" / 36" 1,900 1,400 No $1,537.05
64) BAWR-38-12B-HR Steel Hooks 6" to 48" 12' 38" / 36" 1,900 1,400 Yes $2,781.09
65) BAWR-38-14B Steel Hooks 6" to 56" 14' 38" / 36" 1,600 1,200 No $1,724.37
66) BAWR-38-14B-HR Steel Hooks 6" to 56" 14' 38" / 36" 1,600 1,200 Yes $3,109.57
67) BAWR-38-16B Steel Hooks 6" to 64" 16' 38" / 36" 1,000 1,000 No $1,916.95
68) BAWR-38-16B-HR Steel Hooks 6" to 64" 16' 38" / 36" 1,000 1,000 Yes $3,381.56
Options
Model No. Usable Rail Length (in.) Midrail (in.) Railing Height (in.) Handrail Qty Price
69) BAWR-HR-6-RF 48" 18-7/16" 40¼" 2 $600.23
70) BAWR-HR-7-RF 60" 18-7/16" 40¼" 2 $641.95
71) BAWR-HR-8-RF 72" 18-7/16" 40¼" 2 $678.46
72) BAWR-HR-9-RF 84" 18-7/16" 40¼" 2 $710.62
73) BAWR-HR-10-RF 96" 18-7/16" 40¼" 2 $737.52
74) BAWR-HR-12-RF 122-5/16" 18-7/16" 40-14" 4 $1,167.05
75) BAWR-HR-14-RF 146-5/16" 18-7/16" 40¼" 4 $1,218.12
76) BAWR-HR-16-RF 170-5/16" 18-7/16" 40¼" 4 $1,280.14
