How to Choose the Right Dock Leveler for Your Loading Dock
Choosing the correct dock leveler is essential for safe, efficient, and productive loading dock operations. Two of the most common and proven non hydraulic options are air bag dock levelers and mechanical dock levelers. While both designs perform the same core function, bridging the gap between the loading dock and the truck bed, they differ in how they operate, their cost structure and their ideal applications.
Beacon Industries, Inc. offers the BXA Air Bag Dock Leveler, allowing customers to remain competitive in today’s market while achieving many of the same benefits traditionally associated with mechanical dock levelers, often at a lower initial cost.
This guide explains the differences between air bag and mechanical dock levelers, how each system works and how to determine which option is best for your facility.
What Is a Dock Leveler?
A dock leveler is a mechanical or powered device installed at a loading dock to safely bridge the height difference between the dock floor and a truck or trailer bed. Dock levelers allow forklifts, pallet jacks and personnel to move cargo efficiently while reducing the risk of accidents, trailer separation and product damage.
How Air Bag and Mechanical Dock Levelers Work
Both air bag and the mechanical dock leveler also known as a manual dock leveler operate using a single-action activation that raises the deck and extends the lip.
Common Operating Sequence
- The dock leveler is activated
- The deck rises upward
- The lip extends (kicks out) toward the truck bed
- The deck and lip descend together and rest on the truck bed
- Loading and unloading operations begin
From an operator’s perspective, both systems are simple, reliable and designed for daily dock use.

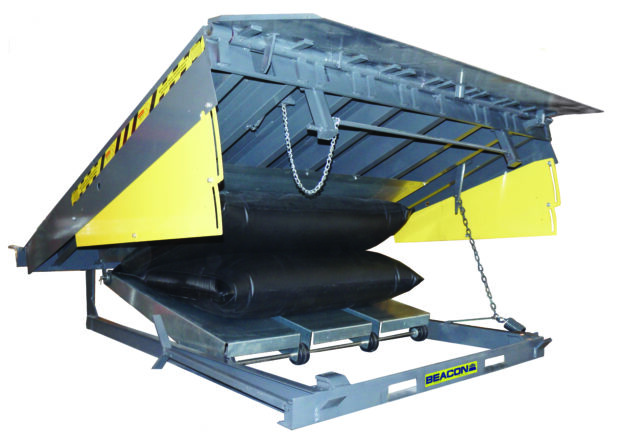

Air Bag Dock Leveler Overview (Beacon® BXA Series)
The Beacon® BXA Air Bag Dock Leveler uses a motor-driven air bag to raise the deck, rather than mechanical springs.
Key Features of Air Bag Dock Levelers
- Rotary switch activation
- Motor and air bag lifting mechanism
- Smooth, controlled deck movement
- Fewer mechanical wear components
- Competitive pricing compared to mechanical dock levelers
Because the lifting force is provided by an air bag, these levelers typically experience less long term wear than spring based systems while maintaining consistent performance.
Benefits of Choosing an Air Bag Dock Leveler
- Lower upfront cost compared to many mechanical units
- Simple push-button operation
- Reduced reliance on large mechanical springs
- Reliable performance for daily dock cycles
Beacon’s air bag dock levelers are engineered to deliver dependable operation while remaining cost competitive in modern warehouse and distribution environments.
Mechanical Dock Leveler Overview (Beacon® BM Series)
Mechanical dock levelers rely on heavy-duty springs to raise the deck and extend the lip.
Key Features of Mechanical Dock Levelers
- Manual operation pull-chain activation
- Spring-assisted lifting system
- No electrical power required
- Long-standing, proven industry design
Mechanical dock levelers have been used for decades and remain a reliable solution for facilities that prefer or require fully mechanical operation.
Benefits of Choosing a Mechanical Dock Leveler
- Ideal for docks without electrical service
- Simple, time tested mechanical design
- Suitable for lower cycle or traditional dock applications
- Familiar operation for many dock personnel
Air Bag vs. Mechanical Dock Leveler Comparison
| Feature | Air Bag Dock Leveler | Mechanical Dock Leveler |
|---|---|---|
| Activation Method | Rotary switch | Pull chain |
| Lifting System | Motor + air bag | Mechanical springs |
| Electrical Power | Required | Not required |
| Maintenance Profile | Fewer moving parts | Spring inspection required |
| Operation Style | Push-button control | Manual activation |
| Cost Position | Competitive / lower upfront | Traditional baseline |
| Reliability | High | High |
- Dock Leveler Capacities and Sizes
- Both air bag and mechanical dock levelers are available in standard configurations to fit most industry standard loading dock pit openings.
- Air bag Capacities: Starting at 30,000 lbs
- Mechanical Capacities: Starting at 25,000 lbs
- Both air bag and mechanical Widths: 6′, 6′-6″ and 7′
- Air bag Lengths: 6′ and 8′ (nominal) for the BXA series
- Mechanical Lengths: 6′, 8′ for the BM1, BM3 and BM5 series and up to 10′ (nominal) for the BM3 and BM5 series
- These sizes are suitable for warehouses, manufacturing plants, and distribution centers handling palletized freight and forklift traffic.
Which Dock Leveler Is Right for Your Facility?
Choose an Air Bag Dock Leveler if:
- Electrical power is available at the dock
- Push-button operation is preferred
- You want a cost effective alternative to mechanical levelers
- Reduced mechanical wear components are desirable
Choose a Mechanical Dock Leveler if:
- Electrical power is not available
- Manual pull chain operation is preferred
- A fully mechanical, traditional design is required
- Your facility has historically used mechanical levelers
Beacon® Dock Leveler Solutions
Beacon Industries, Inc. offers both air bag dock levelers and mechanical dock levelers to meet a wide range of loading dock requirements. Whether your priority is cost savings, simplicity or time tested mechanical reliability, Beacon® provides engineered dock equipment backed by decades of material handling experience.
If you need assistance selecting the correct dock leveler for your application, Beacon’s team can help evaluate dock conditions, capacity requirements and usage frequency to ensure the best solution for your operation. Call Beacon Industries today at 314-487-7600 for a free loading dock leveler assessment and quote.
