Pail Pump

Pail Pump - Drum Siphon - BRDP series

Beacon® BRDP Series

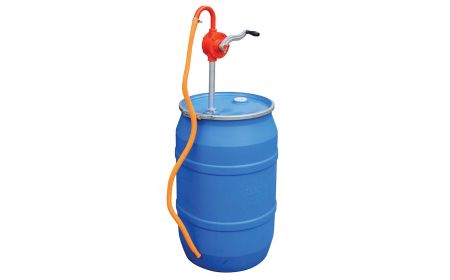

The Pail Pump - Drum Siphon is designed with lever, rotary, piston, or electric dispensing power. These units dispense and transfer liquids from 55-gallon drums or 5-gallon pails. The BRDP-55 model is used for anti-freeze, light oils, and light, non-flammable and non-combustible liquids. BADP-55 is a high-speed unit for use with light oils up to 40 weight. The BVDP and BVDPX series feature corrosive chemical (non-flammable solvent) resistance. The BVLDP is designed for viscous liquids up to 12,000 cPs (such as SAE 90 oil). This series not for use above 125 degrees Fahrenheit or with heated drums. BLDP-ST is for use with petroleum-based liquids up to 200 cPs. BPAIL-PST-SS can be used with most liquids.
Starting at: $25.55

See chart below and click a model number

Product Details

  • Construction: Units are available with steel, aluminum, polypropylene or stainless steel construction.
  • Size: Units work with bung sizes ranging from 3/4" to 2".
  • Weight: Pail Pump models weigh 1 to 12 lbs.
  • Capacity: Units feature a displacement per stroke ranging from 8 oz. to 16 oz.
  • Standard: BVDP Series Pail Pump features a 2-piece dip tube and connector, 32" long overall. BVLDP has a 35" long dip tube.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
  • Note: BPAIL-PST-SS is not recommended for use with Ammonium Chloride, Aqua Regia, Bromine Water, Calcium Chloride, Chloracetie Acid, Chlorine Water, Ferric Chloride, Ferrous Chloride, Freon 12, Hydrobrmic Acid, Hydrofluoric Acid, Sodium Hydroxide, Stannic Chloride, and Sulfuric Acid.

Documents
Pail Pump - BRDP Series
Model No. Description Construction Uses Displacement Per Stroke (oz.) Bung Size Price
1) BRDP-55 Rotary Steel Light oils, anti-freeze, light non-combustible and non-flammable liquids 11.8 2" $99.48
2) BADP-55 Rotary Aluminum Light oils up to 40 weight 11.8 2" $305.56
3) BRP-90R Rotary - Vane Ryton Acid, alkali, gasoline, diesel, machine oil, water, alcohol, thinner and other chemical liquids. Not for use above 140° F. 11.8 2" $232.83
4) BRP-90RT Rotary - Vane Ryton Soluble, corrosive, volatile and aggressive chemicals. Not for use above 140° F. 11.8 2" Call for Quote

5) BVDP Self-Venting Polypropylene Corrosive chemicals (non-flammable solvents) 8 ¾" & 2" $25.55
6) BVDPX Self-Venting Polypropylene Corrosive chemicals (non-flammable solvents) 16 ¾" & 2" $28.07

7) BVLDP Lever Action Polypropylene Viscous liquids up to 12,000 cPs. Not for use above 125° F 10 2" $166.90
8) BLDP-ST Lever Action Steel Petroleum products up to 200 cPs 12 2" $46.96
9) BLDP-POLY Lever Action Polypropylene General 12 2" $52.45
10) BLDP-RYT Lever Action Ryton / 316 SS Rod General 12 2" $84.65
11) BLDP-POLY-304 Lever Action Polypropylene / 304 SS General 12 2" $64.44

Pail Pump - BRDP Series (continued)
Model No. Description Construction Uses Displacement Per Stroke (oz.) Bung Size Price
12) BLDP-SS-316 Lever Action 316 Stainless Steel General 16 2" $208.58

13) BPAIL-PST Piston Hand Pump Steel General 8 2" $54.99
14) BPAIL-PST-SS Piston Hand Pump 316 Stainless Steel Handles Most Liquids (See note for recommendations against use) 8 1" $176.15
