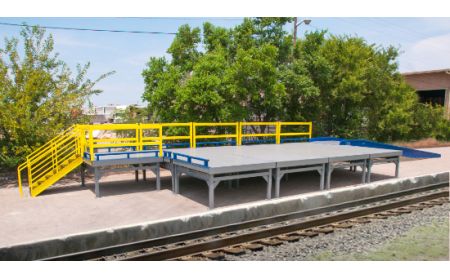

Railcar Loading Platform

Name: Railcar Loading Platform
Brand: Beacon

Beacon® B20SP1620 Series

Railcar Loading Platform services railcar loading and unloading procedures. Designed to be installed in an inside or outside application.

Call for custom quote for your application

See chart below and click a model number

Construction: Heavy Duty Steel Construction cross members with Steel Floor Plate.
Size: A (2) piece platform 8' x 20" each to be bolted in the field by others.
Service Range: Optional adjustable legs (customer to specify) adjustable height range when ordering).
Overall Width: 16'
Overall Length: 20'
Installation: Railcar Loading Platform to be anchored in field by others.
Capacity: 20,000 lbs.
Options: Eight (8") stationary curbs on two sides (customer to advise).
Materials: Steel Platform with Steel Floorplate.

Railcar Loading Platform - B20SP1620 Series
Model No.	Capacity LBS)		Platform Width	Platform Length	Platform Height	Price
1) B20SP1620	20,000		16'	20'	Customer Specifies	Call for Quote
Railcar Loading Platform - Option
Model No.	Description				Length	Price
2) BSPHANDRAIL6	Option-Handrails				6'	Call for Quote
3) BSPHANDRAIL8	Option-Handrails				8'	Call for Quote
4) BSPRUNOFFG6	Option-Run Off Guards				42"	Call for Quote
5) BSPRUNOFFG8	Option-Run Off Guards				66"	Call for Quote
Model No.	Description				Height	Price
6) BSPSTAIR8	Option-Stairs				43"-49"	Call for Quote
Model No.	Description	Capacity (LBS)	Overall Width	Usable Width	Length	Price
7) B20SYS8430	Option-Yard Ramp	20,000	84"	78"	30'	Call for Quote
8) EOD-20M	Option-Manual Edge of Dock Leveler	20,000	116"	78"	27¾"span	Call for Quote
9) 22R11436L	Steel Rail Dock Board	22,000	122"	108"	36"	Call for Quote
