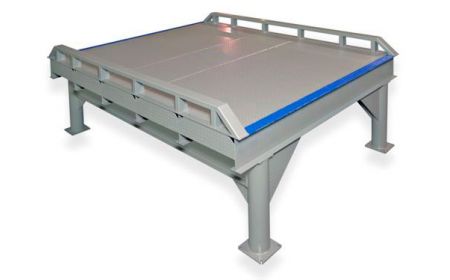

Mobile Loading Dock

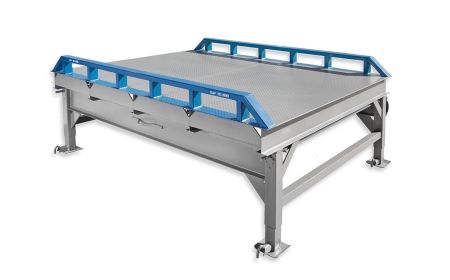

Mobile Loading Dock - Portable Load Platform - BMLD series

Beacon® Mobile Loading Dock – BAL Series

The Mobile Loading Dock - Portable Load Platform serves as a loading dock in remote areas for truck trailer and railcar applications. Place in front of railcar for a 90 degree loading and unloading procedure. Ideal for placing in yard for remote 180 degree truck trailer loading and unloading. These units are a fast, economical way to expand your dock area and increase freight handling capabilities without the expense of concrete work.
Starting at: $13,661.28

See chart below and click a model number

Product Details

  • Construction: Mobile Loading Dock heavy duty steel construction allows for a long lasting unit.
  • Size: The standard size is all 8 feet wide with lengths ranging from 8', 10', or 12' long. Special sizes are available, call for your special configuration.
  • Service Range: All standard models are manufactured with adjustable telescoping legs. The customer specifies the height of the unit with an maximum allowance of up to 65". The adjustable legs allow for a deck elevation range of 42" to 52".
  • Installation: Units can be easily relocated to other areas of your yard where a free standing loading dock may be needed. This means more trucks and railcars can be loaded and unloaded during peak loading times.
  • Color: Gray.
  • Capacities: Mobile Loading Dock capacities are available ranging from 16,000 lbs. to 30,000 lbs. Special capacities are available for special applications.
  • Options: Adjustable legs, Edge of Dock Leveler, Flip Bridge, Low Fork Lift Run Off Guards, Hand Rails, Fork Pockets all with different configurations and optional yard ramps assist in ground loading to platform.
  • Usage: Applications include trucks and rail cars.

Documents
Mobile Loading Dock – BAL Series
Model No. Platform Height Legs Capacity Width Length Weight Price
1) BAL-16SP88-AL 42"-52" Adjustable Telescoping 16,000 lbs. 8' 8' 2,296 lbs. $13,661.28
2) BAL-16SP810-AL 42"-52" Adjustable Telescoping 16,000 lbs. 8' 10' 2,758 lbs. $17,075.54
3) BAL-16SP812-AL 42"-52" Adjustable Telescoping 16,000 lbs. 8' 12' 3,236 lbs. $19,418.14

4) BAL-20SP88-AL 42"-52" Adjustable Telescoping 20,000 lbs. 8' 8' 2,487 lbs. $14,962.96
5) BAL-20SP810-AL 42"-52" Adjustable Telescoping 20,000 lbs. 8' 10' 3,064 lbs. $17,176.24
6) BAL-20SP812-AL 42"-52" Adjustable Telescoping 20,000 lbs. 8' 12' 3,600 lbs. $20,070.04

7) BAL-25SP88-AL 42"-52" Adjustable Telescoping 25,000 lbs. 8' 8' 2,588 lbs. $15,222.66
8) BAL-25SP810-AL 42"-52" Adjustable Telescoping 25,000 lbs. 8' 10' 3,100 lbs. $18,351.78
9) BAL-25SP812-AL 42"-52" Adjustable Telescoping 25,000 lbs. 8' 12' 3,775 lbs. $21,478.78

Mobile Loading Dock – BAL Series (continued)
Model No. Platform Height Legs Capacity Width Length Weight Price
10) BAL-30SP88-AL 42"-52" Adjustable Telescoping 30,000 lbs. 8' 8' 2,899 lbs. $15,703.90
11) BAL-30SP810-AL 42"-52" Adjustable Telescoping 30,000 lbs. 8' 10' 3,508 lbs. $19,816.70
12) BAL-30SP812-AL 42"-52" Adjustable Telescoping 30,000 lbs. 8' 12' 4,264 lbs. $23,236.26
Options
Model No. Description Price
13) BAL-EODL (EOD) Edge of Dock Leveler welded to platform Call for Quote
14) BAL-HANDRAIL 42" high handrail price per foot. Call for Quote

WarningPROP 65 WARNING

For California Residents: www.P65Warnings.ca.gov
Products on this page may lead to cancer or reproductive harm.


Complementary Products: The Railcar loading ramp works in conjunction with the mobile loading dock portable platform.





TM
Call Beacon: 800-454-7159314-487-7600
