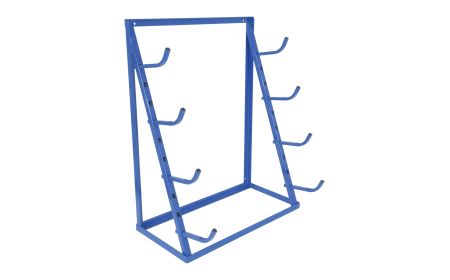

Horizontal Storage Rack

Horizontal Storage Rack - BHSR series

Beacon® BHSR Series

Horizontal Storage Rack is designed for the storage area to keep supplies organized. Includes eight (8) adjustable arms to position for each specific storage piece.
Starting at: $546.92

See chart below and click a model number

Product Details

  • Construction: Durable steel construction for long lasting applications.
  • Projection: Rack arms ends are designed vertically to prevent a possible roll off.
  • Installation: The rack must be anchored to the floor for stability before use.
  • Color: Durable powder coat baked in blue finish.
  • Usage: The open design enables the ability to load and unload from the front and the two (2) sides.
  • Capacity: Maximum capacity is 2,000 lbs. (capacity per arm: 250 lbs.)
  • Standard: Each structural side member has ten (10) mounting arm holes for adjustment, a total of twenty (20) adjustment holes. Arms mount hole spacing are on 5" centers.
  • Note: Compact footprint design utilizes minimum floor space.

Horizontal Storage Rack - BHSR Series
Model No. Overall Size (W x L x H) Capacity per Arm (LBS.) Maxium Arms Maxium Capacity (LBS.) Price
1) BHSR-4860 48⅜"x40⅛"x60⅞" 250 8 2,000 $546.92
