Safety Handrails

Safety Handrails - BVDKR series

Beacon® BVDKR Series

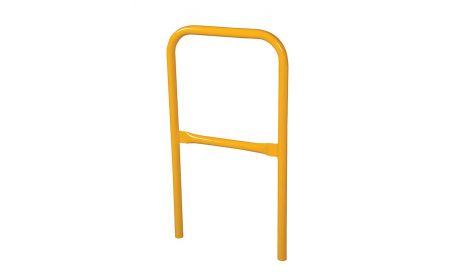

The Safety Handrails are designed to protect people from drop-offs and uneven walkways. Mounting options include socket sleeves along with cast steel sockets and barricade base for convenient removal of the railings.
Starting at: $92.70

See chart below and click a model number

Product Details

  • Construction: This product is constructed of schedule 40 pipe, 1-5/8" in outside diameter. Both aluminum and steel constructions are available.
  • Size: Units have a 42" top rail height and a 21" mid-rail height. This series includes various lengths ranging from 24" to 96". Steel sockets allow wood 2" x 4" or 2" x 6" when toeboards are necessary. The steel base has 2 openings for 2" x 4" or 5" toeboards.
  • Installation: Cast steel bases include 2 lag down holes to permanently mount rails.
  • Color: Steel units feature a Beacon powder coat safety yellow finish. Aluminum units are unfinished.
  • Weight: Units come in a variety of weights ranging from 9 to 48 lbs.
  • Options: Options, which can be viewed by selecting any Safety Handrails model, include single or double sockets, cast-steel or metal sleeves, barricade bases with feet or wheels, steel gates, connector kits, anchor kits, and toe boards.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.

Documents


Options


Steel Safety Handrails - BVDKR Series
Model No. Top Rail Height Mid-Rail Height Length Outside Diameter Ships Via Price
1) BVDKR-2 42" 21" 24" 1⅝" UPS $92.70
2) BVDKR-3 42" 21" 36" 1⅝" UPS $106.66
3) BVDKR-4 42" 21" 48" 1⅝" Truck $113.06
4) BVDKR-5 42" 21" 60" 1⅝" Truck $141.06
5) BVDKR-6 42" 21" 72" 1⅝" Truck $144.82
6) BVDKR-7 42" 21" 84" 1⅝" Truck $170.31
7) BVDKR-8 42" 21" 96" 1⅝" Truck $176.77
Aluminum Railing Safety System
Model No. Top Rail Height Mid-Rail Height Length Outside Diameter Ships Via Price
8) BADKR-2 42" 21" 24" 1⅝" UPS $197.03
Aluminum Safety Handrails - BADKR Series
Model No. Top Rail Height Mid-Rail Height Length Outside Diameter Ships Via Price
9) BADKR-3 42" 21" 36" 1⅝" UPS $231.47
10) BADKR-4 42" 21" 48" 1⅝" Truck $273.31
11) BADKR-5 42" 21" 60" 1⅝" Truck $312.80
12) BADKR-6 42" 21" 72" 1⅝" Truck $348.38
13) BADKR-7 42" 21" 84" 1⅝" Truck $386.52
14) BADKR-8 42" 21" 96" 1⅝" Truck $396.69
