Pipe Protectors

Pipe Protectors - Downspout Protectors - BDSG series

Beacon® BDSG Series

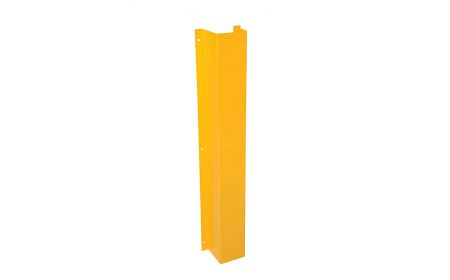

The Pipe Protectors - Down Spout Guard is our light duty unit that safeguards pipes and downspouts from damage caused by impacts from mowers, fork trucks, and similar work vehicles.
Starting at: $149.94

See chart below and click a model number

Product Details

  • Construction: Available in 1/8" formed steel. Designed with 7/16" holes thru in 6 places. Holes are 2" from end and center hole is 24" from end.
  • Projection: Features rectangle design.
  • Size: This model size is available as 6" inside width and a 6" depth, featuring an overall flange width 9-3/16". The unit is 48" high.
  • Installation: Pipe Protectors feature easy bolt-on installation. Hardware is not included.
  • Color: Powder coated safety yellow finish.
  • Weight: This steel model weighs 28 lbs.
  • Standard: It is recommended to use the pipe protector for downspouts smaller than 6" in diameter that are mounted against the wall.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.

Documents



Pipe Protectors - BDSG Series
Model No. Material Inside (W x D) Overall Size (W x D x H) Color Price
1) BDSG-48 Steel 6"x6" 9-3/16"x6⅛"x48" Yellow Powder Coat $149.94
