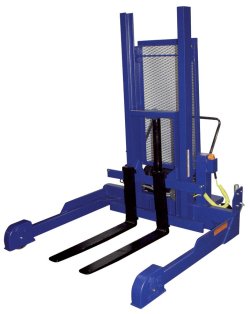

Product: Pallet lift trucks
Beacon Model: Beacon BPMPS series pallet lift trucks.
Description: The Beacon pallet lift trucks lift crates, bins and skids with or without an understructure from floor level to an ergonomic working height. The pallet lift trucks are ideal for loading and unloading trailers.
Construction: The pallet lift trucks feature welded steel construction.
Size: Each fork is 4" wide x 36" long.
Capacities: The capacity of the pallet lifter ranges from 1,200 to 4,000 lbs.
Lowered Fork Height: The lowered fork height of the pallet master is 2-5/8".
Lift Heights: The overall lift height of the pallet master ranges from 50" up to 72".
Powered: The pallet stacker is powered by a 12 V DC motor and is operated with the use of a fingertip rocker control. A 12 V deep cycle battery supplies the motor with power.
Standard: The pallet lifter comes standard with key-operated on/off control, 2 rigid and 2 swivel 8" phenolic casters and caster lock.
Options: Beacon offers a power traction drive option and a hand control on a cord option on the pallet master fork truck.
Weight: The pallet loader weighs from 860 to 1,105 lbs.
Warranty: One-year structural and electrical.
Usage: It is the customer�s responsibility to verify correctness of fit for applications. It is the customer's responsibility to verify that this unit complies with all safety laws, codes and regulations.

- Pallet Lift Trucks and Pallet Lifting Trucks - Read about uses and applications.

Prices may increase due to steel surcharge.
