Pallet Mover  BSLNM Straddle series

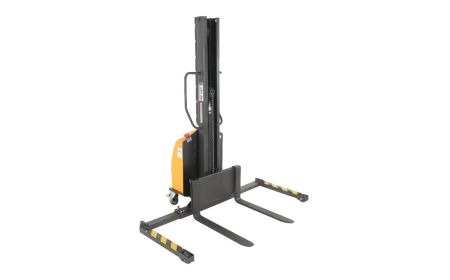

Beacon® BSLNM Straddle Series

Pallet Mover (for skid and pallet entry) is an extremely efficient portable product lift. The units are designed as manual push with powder lift. Engineered with adjustable forks and adjustable straddle legs.
Starting at: $6,192.97

See chart below and click a model number

Product Details

  • Construction: Pallet Movers manufactured using high quality material and parts.
  • Service Range: Raised Time Loaded: 5.9" per second, Raised Time Unloaded: 2.95" per second, Downtime Loaded 4" per second, Downtime Unloaded: 3.15" per second.
  • Operating Range: BSLNM-63-AA & BSLNM15-63-AA has a 13" Load Center and the BSLNM-118-AA & BSLNM-98-AA has a 17-3/4" Load Center.
  • Lowered Fork Height: This Pallet Mover series has a lowered height of 2".
  • Raised Fork Height: Different models feature the following raised heights: 63", 98" & 118".
  • Overall Fork Width: The BSLNM-63-AA & BSLNM15-63-AA series has 3-1/8" fork width, with fork adjustment of 6-1/4" to 19-3/4". The BSLNM-98-AA & BSLNM-118-AA has a 4" fork width, with fork adjustment of 8" to 27".
  • Electrical: Battery: 12V /140 Ah. (Battery charger 12 V / 6 amp)
  • Powered: Lift Motor: DC 12 V / 1.3 KW.
  • Power: All Pallet Movers have integral battery charger and battery level gauge.
  • Color: Yellow and Black.
  • Usage: Narrow mast Pallet Mover is ideal for shipping, packaging and manufacturing facilities.
  • Operation: Manual Push with DC power lift.
  • Capacity: 1,000 or 1,500 lbs.
  • Standard: Lift and lower controls are in body housing next to the operator. Steer wheels are larger for greater maneuverability.
  • Limited Warranty: One year structural and electrical.

Documents



Pallet Mover - Manual Drive with Electric Lift - BSLNM Straddle Series
Model No. Capacity (LBS) Lifting Height Lowered Height Fork Width Minimum Fork Adjustment Max. Fork Adjustment Overall Fork Size (W x L) Price
1) BSLNM-63-AA 1,000 63" 2" 3⅛" 6¼" 19¾" 27"x36" $6,192.97
2) BSLNM15-63-AA 1,500 63" 2" 3⅛" 6¼" 19¾" 27"x36" $7,018.15
3) BSLNM-98-AA 1,500 98" 2" 4" 8" 27" 27"x36" $7,504.69
4) BSLNM-118-AA 1,500 118" 2" 4" 8" 27" 27"x36" $8,213.81
OPTION - Pallet Mover
Model No. Type Description Color Price
5) BSLNM-AA-BAH OPTION Steel Single Ball Hitch Attachment Black $294.91
6) BSLNM-AA-SDG OPTION Single Drum Gripper Black $698.29
Model No. Type Description Volts Price
7) AGM-UPG-SL OPTION AGM Battey Upgrade (must be purchased with new unit) 12 V DC $680.47
