Hydraulic Skid Truck

Hydraulic Skid Truck - Portable Lift Truck - BHIPM series

Beacon® BHIPM Series

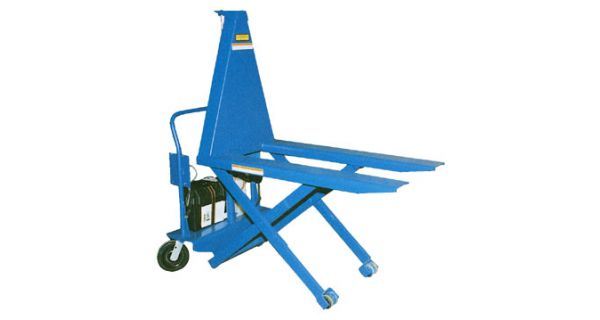

The Hydraulic Skid Truck - Portable Lift Truck is designed to reduce injury and lessen muscle fatigue by lifting work materials to the operator's height. This unit with a small portable design is made to raise crates, bins, and skids without an understructure. It allows the lifting of heavy loads by electric hydraulic power and the manual transportation of these loads without the use of a fork truck. The -DC series uses 12V DC power and comes standard with an on-board battery charger. AC and air-powered models are also available. Each model has a safety foot brake, which can be set during loading and unloading. Built into the power unit is a key-operated on/off switch for increased security.
Starting at: $4,848.81

See chart below and click a model number

Product Details

  • Size: Models are available with fork sizes of 27" wide x 48" long and 20" wide x 48" long.
  • Service Range: Each unit has a service range of 3-1/2" to 31".
  • Weight: This product comes in weights ranging from 385 to 604 lbs.
  • Capacity: This series has a capacity of 2,500 lbs.
  • Options: Hydraulic Skid Truck options include a solid platform, a battery charge indicator gauge (DC units only), a manual floor lock.
  • Limited Warranty: One year structural and electrical.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.

Documents
Hydraulic Skid Truck - BHIPM Series
Model No. Fork Size (W x L) Overall Size (W x L x H) Service Range Capacity (LBS) Operation Price
1) BHIPM-2048-DC 20"x48" 32"x62-13/16"x40½" 3½" to 31" 2,500 12V DC Battery $4,888.11
2) BHIPM-2048-AC 20"x48" 32"x62-13/16"x40½" 3½" to 31" 2,500 115V AC $4,888.11
3) BHIPM-2048-AIR 20"x48" 32"x62-13/16"x40½" 3½" to 31" 2,500 Air $4,888.11

4) BHIPM-2748-DC 27"x48" 32"x65-13/16"x40½" 3½" to 31" 2,500 12V DC Battery $4,848.81
5) BHIPM-2748-AC 27"x48" 32"x65-13/16"x40½" 3½" to 31" 2,500 115V AC $4,848.81
6) BHIPM-2748-AIR 27"x48" 32"x65-13/16"x40½" 3½" to 31" 2,500 Air $4,848.81
OPTION
Model No. Description Price
7) BHIPM-PLATE Solid platform to fit over forks $401.86
8) BHIPM-FLK Manual Floor Lock $329.26
