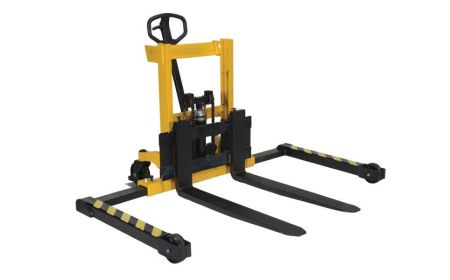

Straddle Pallet Jack

Straddle Pallet Jack - BVHPS Series

Beacon® BVHPS-AA Series

The Straddle Pallet Jack is designed for straddling pallets, skids, containers, bins and cargo. Straddle Pallet Jack is a warehouse accessory assisting in moving loads easily with stability. These units are made of a heavy duty steel.
Starting at: $2,916.65

See chart below and click a model number

Product Details

  • Models: The AA in the model number signifies Adjustable Forks, works with pallets and skids.
  • Construction: Steel Construction for a sturdy and stable design.
  • Size: Overall single mast height: 41".
  • Operating Range: Straddle Pallet Jack has a lowered height of 3" with a raised fork height of 17" providing 14" vertical travel.
  • Overall Fork Width: Fork Width: 4-1/2", with an adjustable outside dimension range of 8" to 26" or 27" depending on model.
  • Overall Fork Length: 42-1/8".
  • Power: Manual operation.
  • Color: Yellow
  • Usage: Two (2) rigid and two (2) swivel wheels including brakes for easy maneuvering and positioning.
  • Operation: Manual hydraulic hand pump operation with requiring 21 pumps to reach 17" height increments at 7/8" stroke per pump.
  • Capacities: 2,000 and 3,000 lbs. depending on model.
  • Standard: Straddle Pallet Jack features two adjustable outriggers ranging from 40" minimum to 50" maximum interior width.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.

Straddle Pallet Jack - BVHPS-AA Series
Model No. Capacity (LBS) Fork Width Minimum Fork Width Max. Outrigger Minimum Outrigger Max. Fork Length: Lowered Fork Height Raised Fork Height Price
1) BVHPS-2000-AA-17 2,000 8" 26" 40" 50" 42" 3" 17" $2,916.65
2) BVHPS-2000-AA-35 2,000 8" 27" 39" 50" 42" 3" 35" $3,179.89
3) BVHPS-2000-AA 2,000 8" 26" 38" 50" 42" 63" $3,477.58
4) BVHPS-3000-AA-17 3,000 8" 26" 40" 50" 42" 2⅝" 17" $3,319.73
